NTU Optical Network Terminals 13
Top panel LED indicators are listed in Table 4.
Table 4 – Description of Top Panel LEDs
No.
Top Panel Element
Description
7
power and activity status indicator
8
optical interface activity indicator
9
Internet service status indicator
10

FXS port activity indicator
11
2.4
Wi-Fi activity indicator for 2.4GHz
12
5
Wi-Fi activity indicator for 5GHz
13
1..4
Ethernet port indicator
Side panel buttons are listed in Table 5.
Table 5 – Description of Side Panel Buttons
No.
Side Panel Element
Description
14
Reset
functional key that reboots the device and resets it to the factory
settings
15
Wi-Fi
Wi-Fi enabling/disabling button
16
WPS
enables automatically protected Wi-Fi connection for device
2.5.2 NTU-RG-1421GC-Wac
Subscribe terminal is designed as a desktop device in a plastic housing.

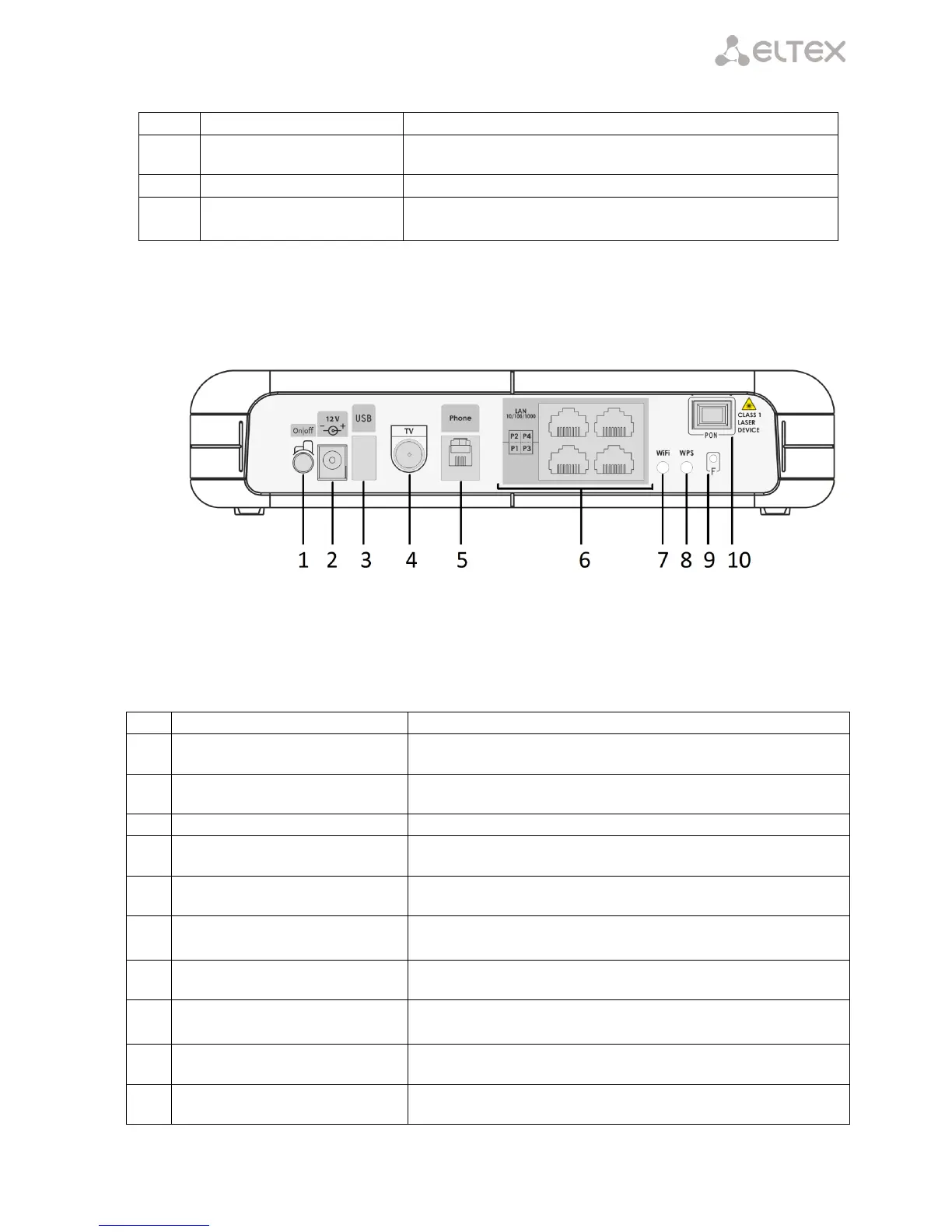

Figure 6 shows the device rear panel layout.
Figure 6 – The NTU-RG-1421GC-Wac rear panel layout
The connectors and controls located on the device rear panel are listed in Table 6.
Table 6 – Description of the connectors and controls of the device rear panel
No.
Rear Panel Element
Description
1
On/Off
power button
2
12V
power adapter connector
3
USB
port for connecting external drivers and other USB devices
4
TV
RF port for CaTV connection
