22 NTU Optical Network Terminals

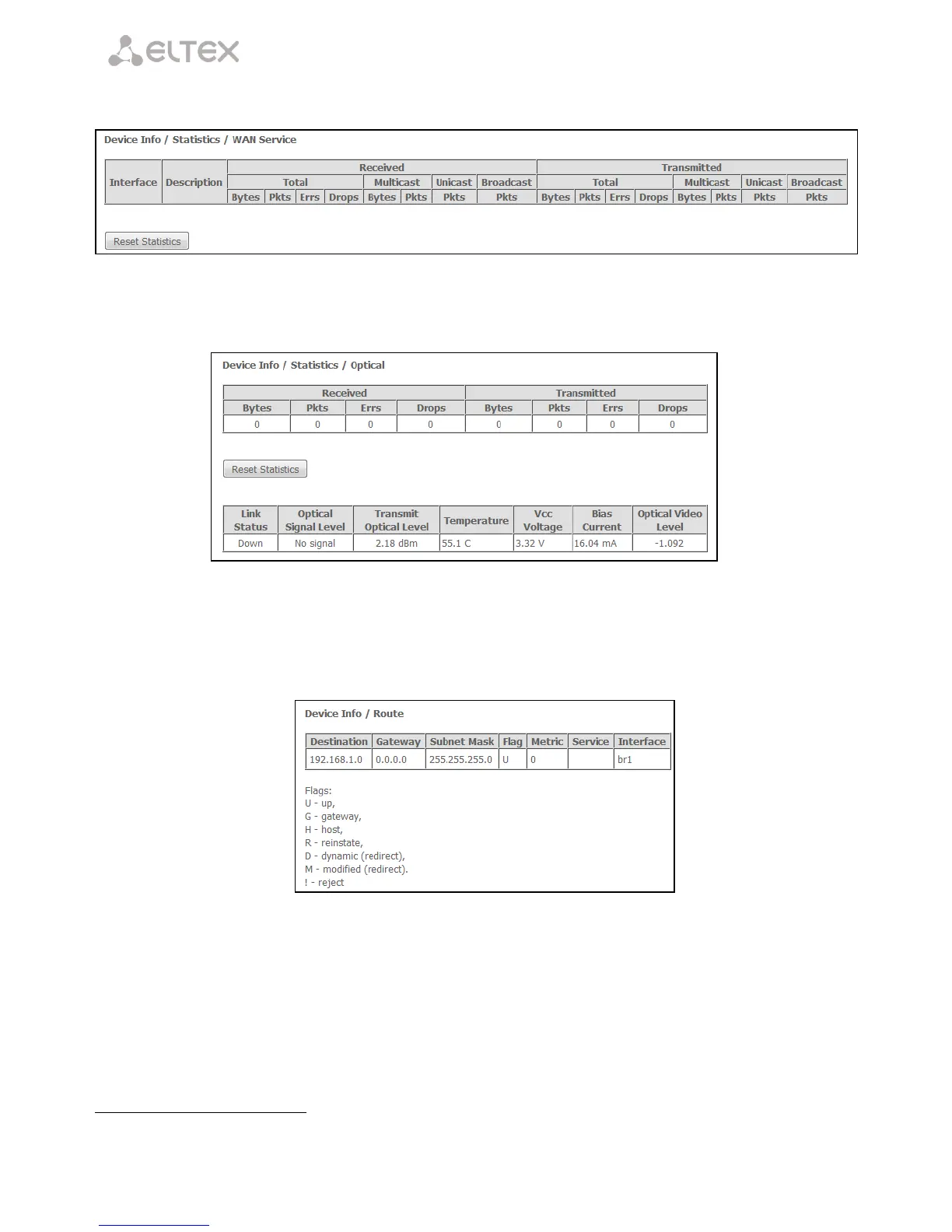

WAN Service:
Optical interface:
If a device supports measurement of optical signal parameters
1
, the menu displays an additional table:
 Link status—optical link status;
 Optical power level—level of the received signal (1490nm);
 Optical power level of transmitter—level of the transmitted signal (1310nm);
 Temperature—temperature of SFF module;
 Vcc voltage—supply voltage;
 Bias current—bias current;
 Optical Video Level—optical CaTV signal level
2
.
In order to clear the statistics and start gathering it from the beginning, click the Reset Statistic button.
4.1.5 The “Route” submenu. Routing table preview
The menu shows the routing table.
1
Optional
2
Only for NTU-RG-1421GC-Wac
