Ordering numbers
46
6.5

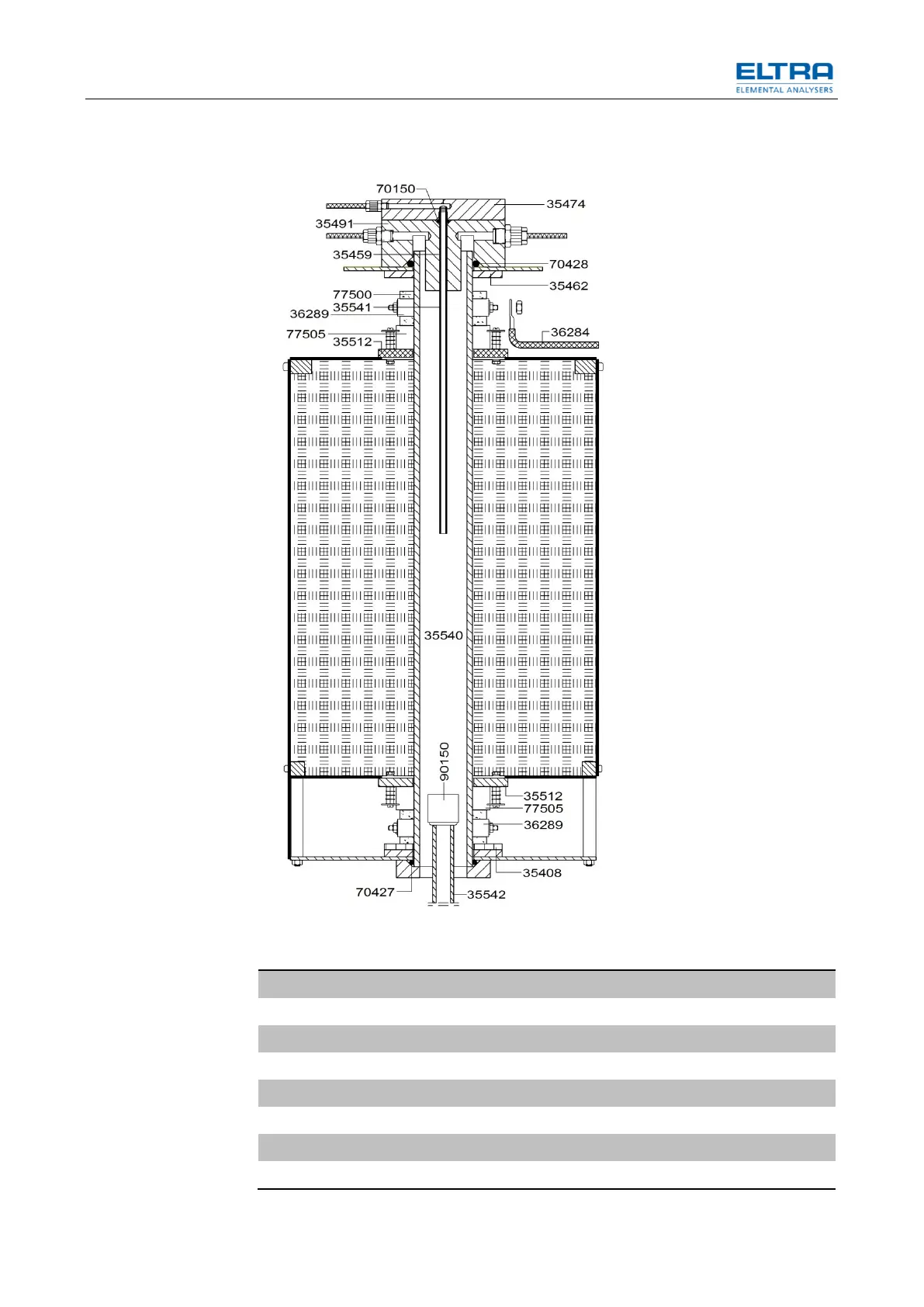

Furnace side (inside view)
Fig.
13
:
Furnace insi
de view (inside)
Part Nr.
Description
35408
Lower plate insulation
35462
Upper plate
35512
Ceramic plate
35540
Combustion tube
35541
Ceramic lance
35542
Pedestal
36284
Heating elem
ent connector
36289
Heating elem
ent clamp
45
47
Table of Contents
Table of Contents
4
Notes on the Service Manual
6
Explanations of the Safety Warnings
6
Installation
8
Setting Check up
8
Front Panel Illustration
9
Mains Power Connections
10
Data Interface
11
Oxygen Connection
12
Operation Modes
12
Adjusting the Gas Flow
14
Temperature Adjustment
15
Preheating the Furnace
15
Configuration of Preheating
15
BIOS-Configuration
16
Analysis
17
Working Procedure
17
Procedure of Carrying out Analyses with Autoloader
17
Procedure of Carrying out Analyses with Manual Loading of the Sample
18
TIC-Determination
19
TIC-Module
19
TIC Analysis
19
TIC-Module Installation
20
TIC-Module Operation Procedure
21
Applications
22
Coal
22
Calcium Carbonate
22
Graphite
22
Limestone
22
Oil, Asphalt and Rubber
22
Wood
22
Maintenance
24
General Information
24
Reagent Tubes Filling
26
Reagent Tube Replacing
26
Filling Quantities
27
Moisture Trap Replacing (Furnace)
29
O-Rings Replacing
29
Dust Filter Cartridge Replacing
30
Combustion Tube Replacing
31
Lance Replacing
32
Heating Elements Replacing
33
Function Description
35
Measuring Principle
35
Gas Flow System
36
Infrared Cell
39
Micro-Controller Unit and PC Software
40
Ordering Numbers
41
Analyszer Front View
41
Rear Side (Outside View)
42
Bottom (Outside View)
43
Left Side View (Inside)
44
Furnace Side (Inside View)
46
TIC-Module
48
Packaging
50
Pre-Installation Guide
51
Approved Methodologies to Which Eltra Instruments Conform
52
Inorganic Materials (Metals)
52
Organic Materials (Oil, Coal, Foodstuffs)
53
Disposal
54
Index
55
Other manuals for ELTRA CS-580A
