Maintenance
31
Take care for the cartridge body to have the smaller diameter up and the bigger
down.
4.6 Combustion tube replacing
Mortal danger from electric shock
Exposed power contacts - High Voltage
- An electric shock can cause injuries in the form of burns and
cardiac arrhythmia, respiratory arrest or cardiac arrest.
• Disconnect the mains power plug before opening the
analyzer’s cabinet.

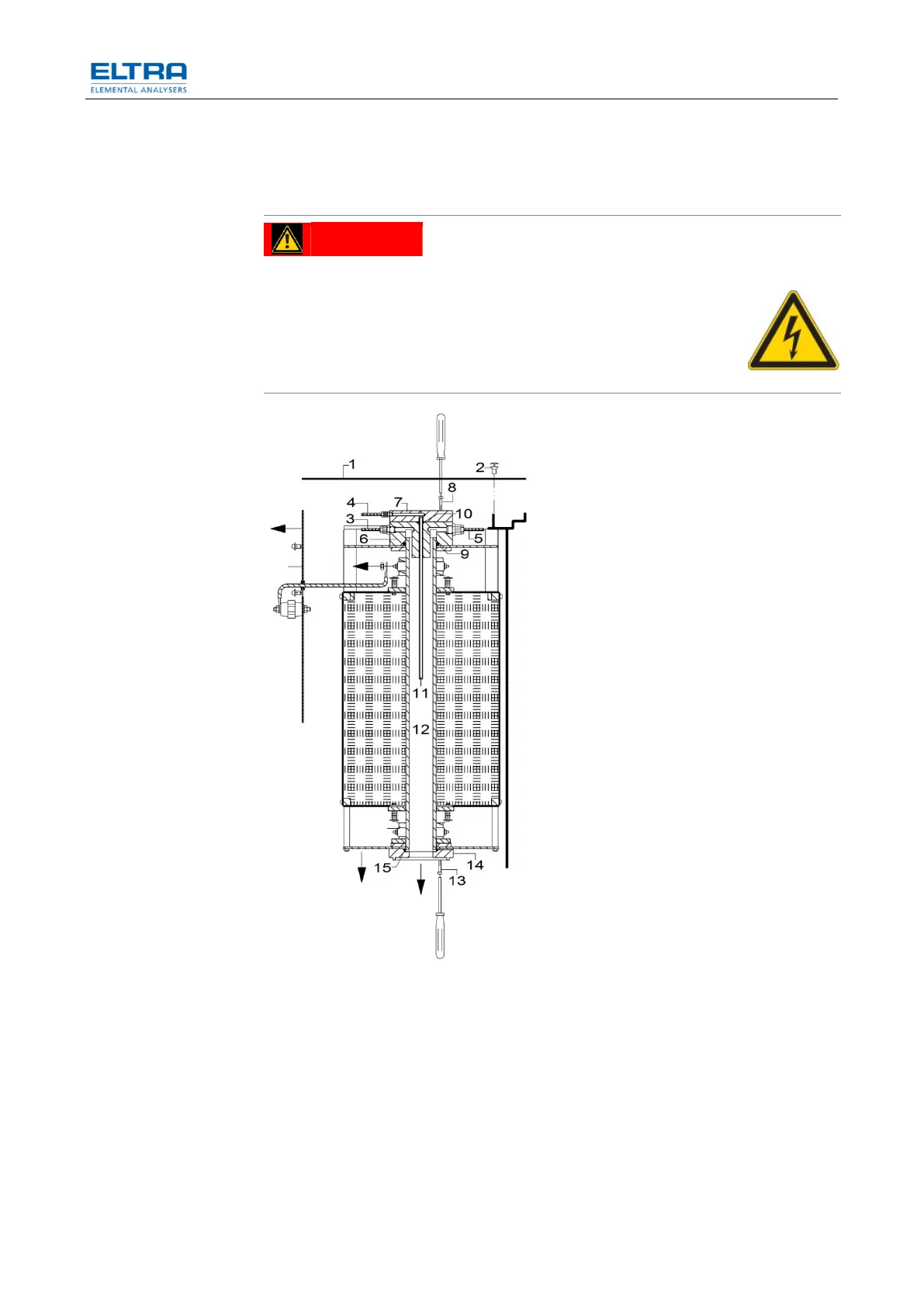

Fig. 7: Removing the combustion tube
• Switch off the analyzer and disconnect the power plug.
• Remove the cover panel (1) of the cabinet. Unscrew 4 screws (2) on
top.
• Remove the tubes (3), (4) and (5) from the upper furnace closure
assembly (6/7).
• Remove the 4 screws (8) which hold the assembly (6/7) on the
furnace. The 4 screws and nuts holding the disk (7) on the part (6)
should remain in place.
• Lift the upper furnace closure. The assembly consisting of the parts
(6), (7), (9), (10) and (11) is then taken out of the furnace. Take care
To Next Page
