Installation
8
2 Installation
2.1 Setting check up
Since the analyser weighs about 90 kg it should be placed on a suitably stable
surface. Due to the balance, the platform should be as free of vibration as possible.
The loader is attached to the right side of the analyser. There are no strong
recommendations where to place the balance, PC, display and printer. Generally,
placing them on the right is recommended. The size of a desktop (approx. 200 cm
80 cm for the analyzer with 130-crucibles autoloader) is sufficient for the entire set-
up.
Below is an example of installation:

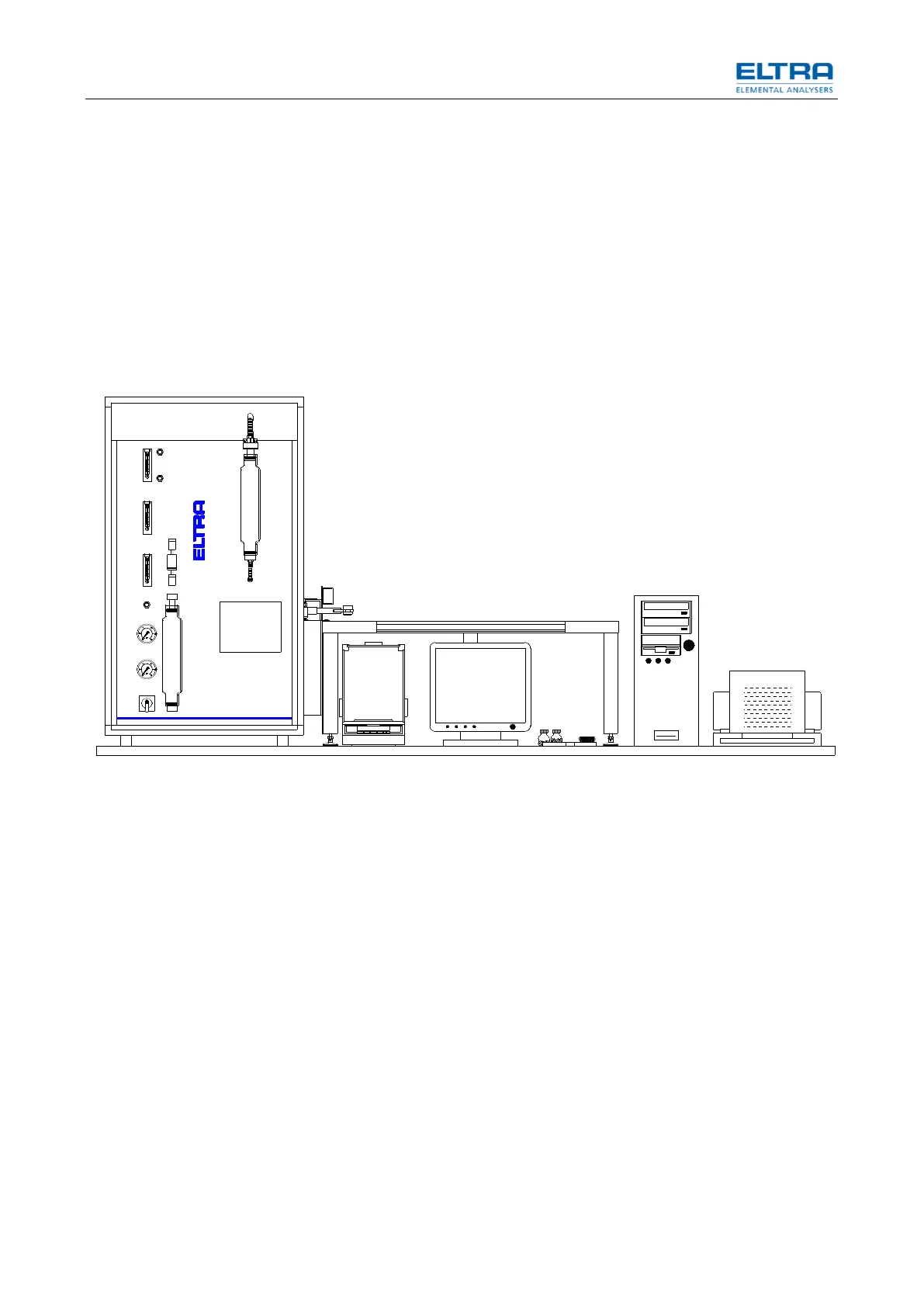

Fig. 1:Arrangement Suggestion
The environment of the device does not have to necessarily be air-conditioned,
although it is best if the room temperature remains between 18°C and 30°C.
NOTICE
Under no conditions the device should be placed in direct sunshine!
Avoid places exposed to the wind of air conditioners or to the wind blowing through
open windows or doors.
