EM Test CWS500 N2
User manual V 3.00 21 / 38
5.5.
Calibration
5.5.1.
Calibration Setup for Bulk Current Injection Clamp (BCI) as per ISO / DO / MIL

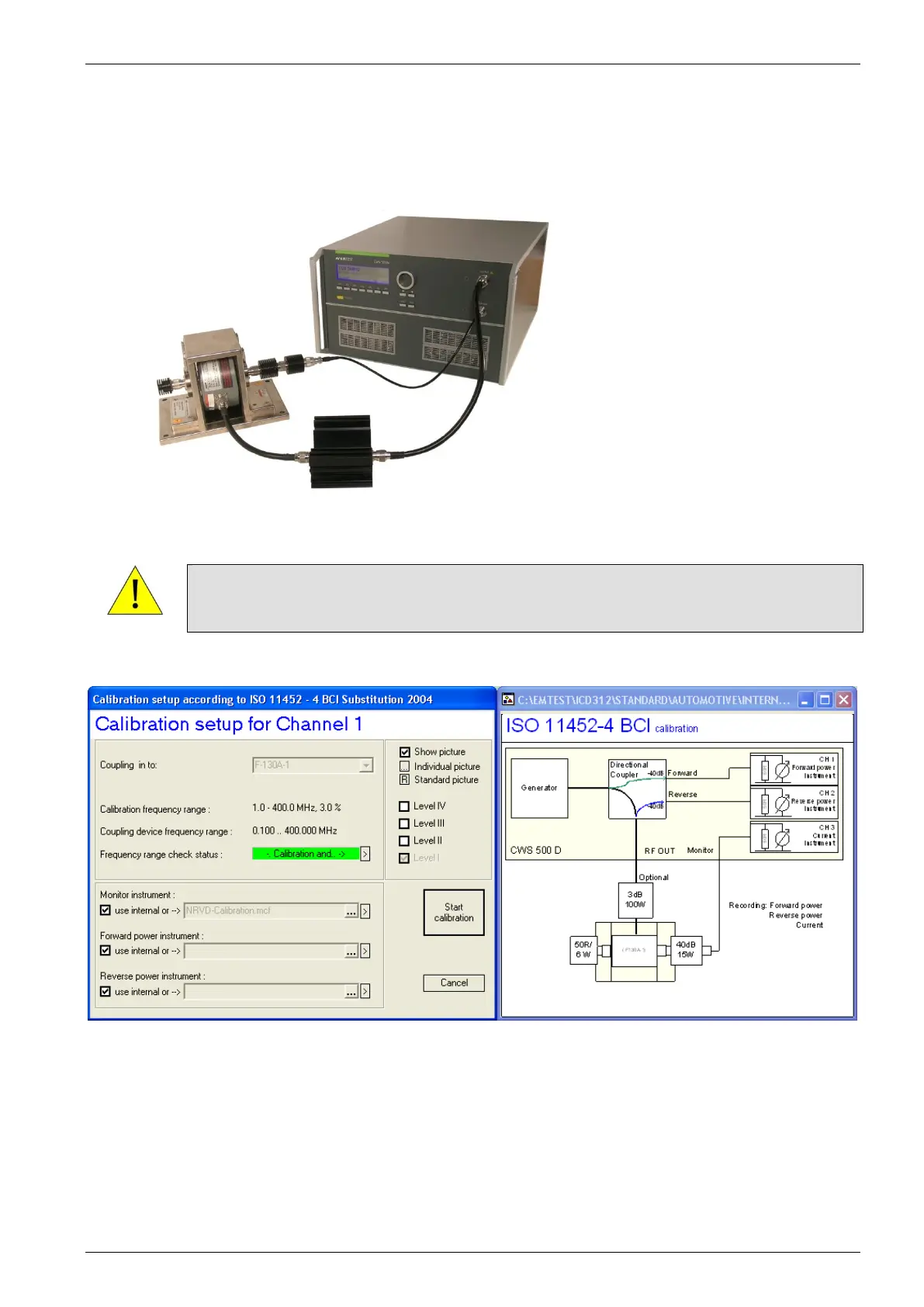

Fig 5.5 : Calibration setup with BCI
ATTENTION
During calibration of the test setup on a ground reference plane at very low levels (very low
currents) is important. The test results may be influenced by the cable layout on the ground
plane. High grade coaxial cables are essential.
Fig 5.6 : Calibration setup with BCI
