6.
Test Equipment CWS 500N2
The CWS 500N2 continuous wave simulator is divided into three main parts. The control unit is completely
separated and uncoupled from the RF power section.

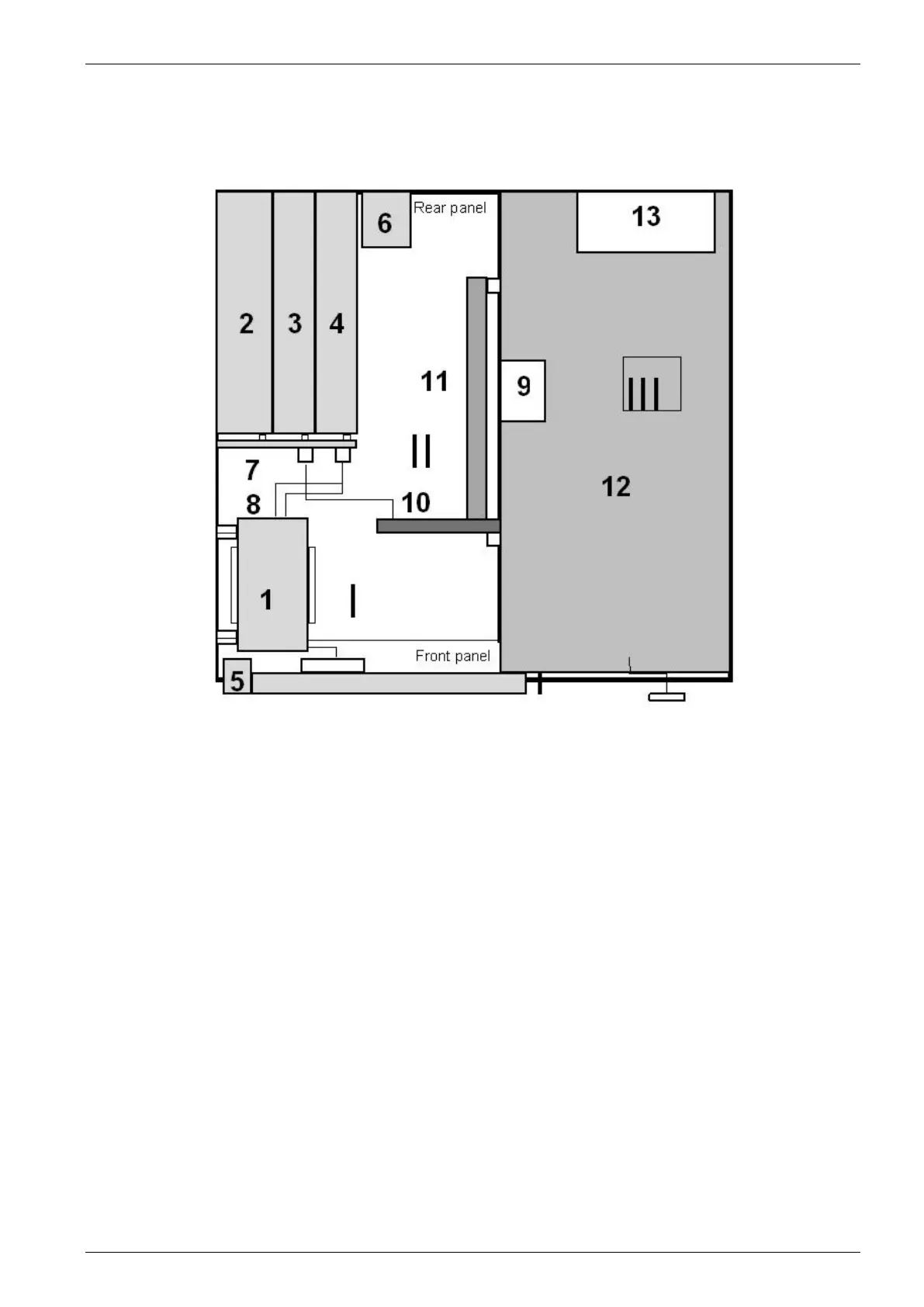

Fig 6.1
I Control unit
1 Transformer
2 Power Supply
3 Interface Board
4 Processor Board
5 Keyboard / LC Display
6 Power Supply Filter
7 Connection Board
8 Flat Band Cables to Front Panel
9 Calibration Measuring Device or
PM Powermeter
II Generator Unit
10 Signal Generator Connection Board
11 Signal Generator
III RF Power Unit
12 Amplifier
13 Bi- directional coupler
