Emaldo Power Core User Manual
43
Copyright©EMALDO
Important
The photovoltaic 3-channel MPPT input must be connected to a separate PV string as per each
channel.

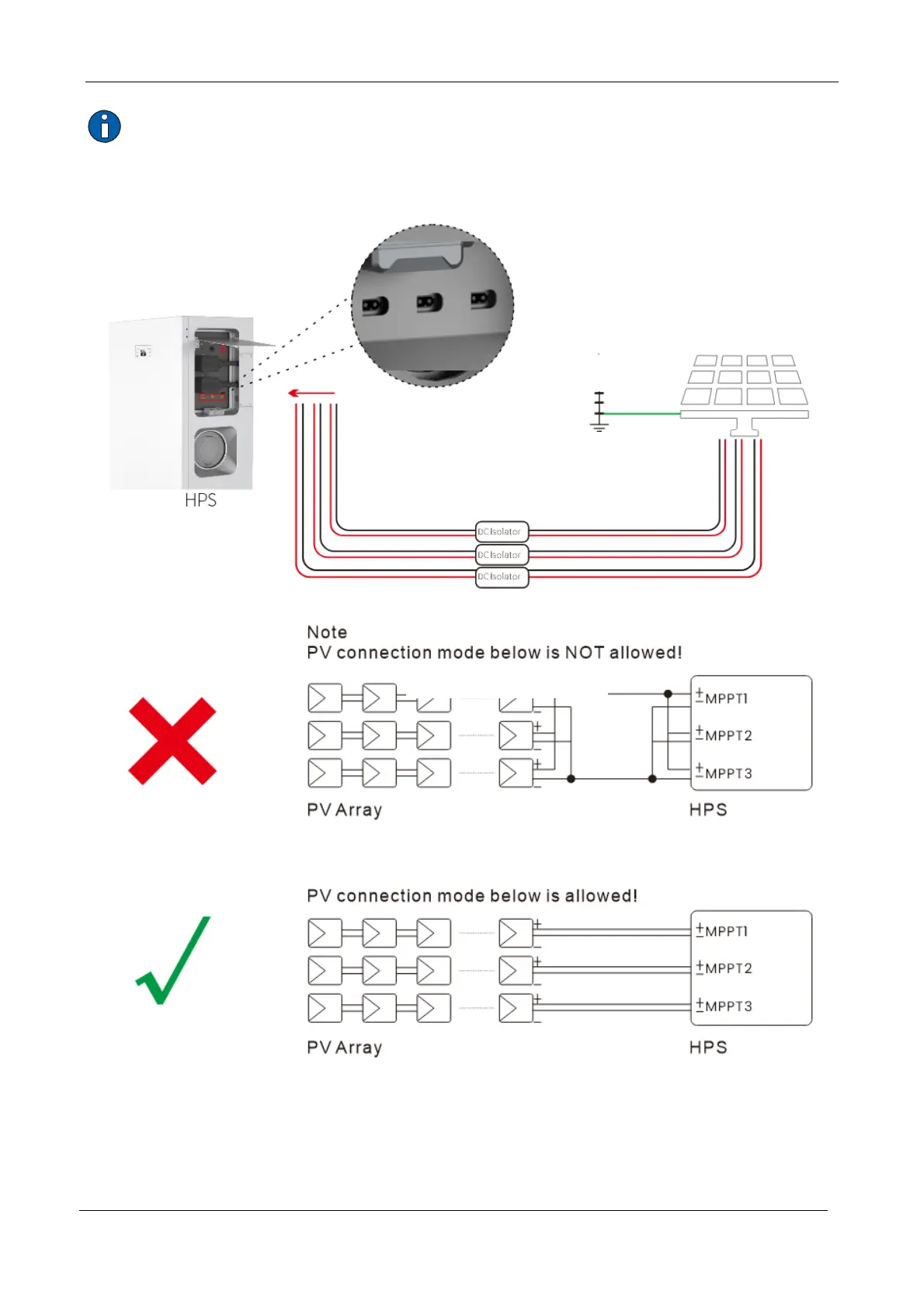

Wiring for photovoltaic array
Protective earth
MPPT*3 channels
