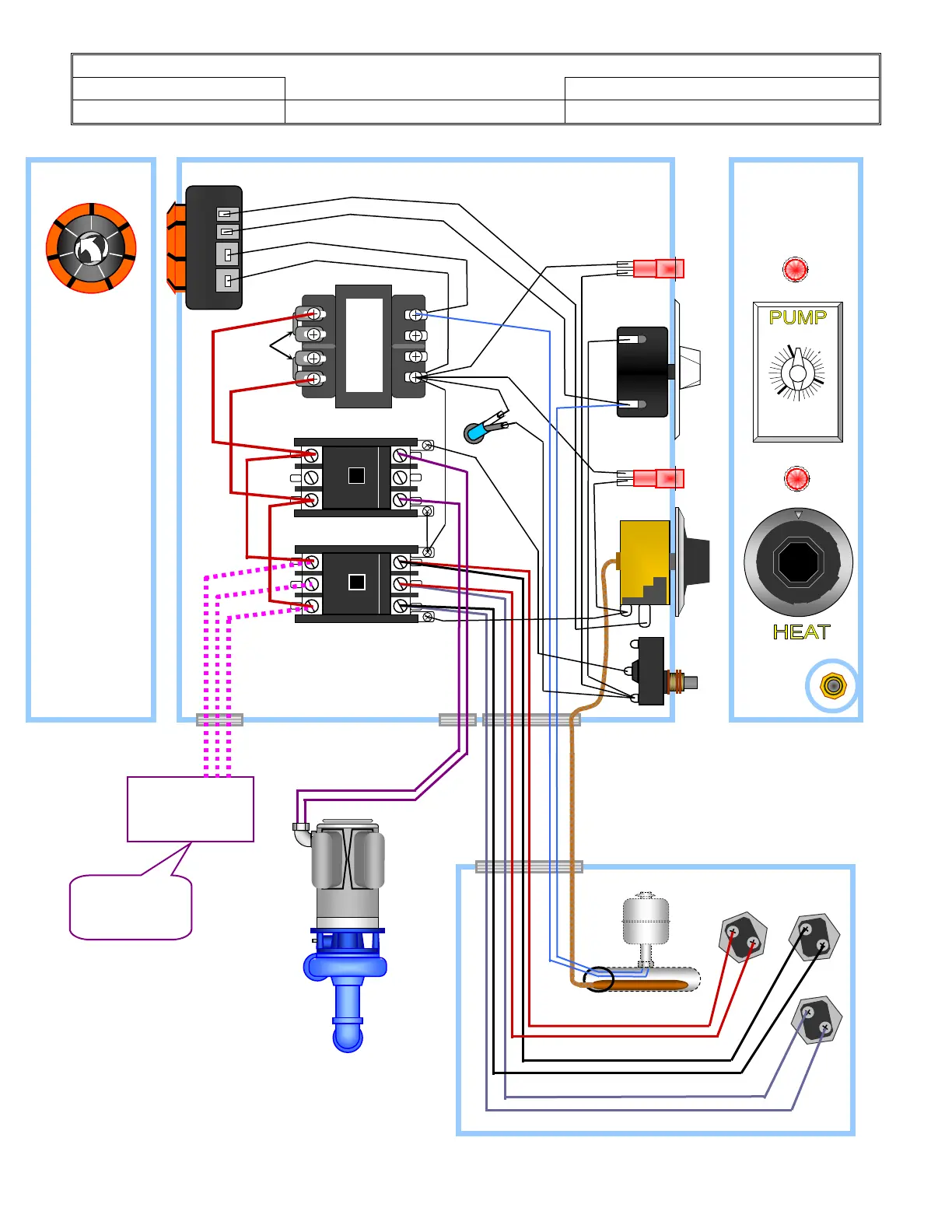

Wiring Diagram for :
EMC ® POWERJET ®
For Models: 2846E and 4046E
dwg: PJ-2846E-4046E-1.5HP-220V-3PH-40A
BC-06-22-2004
AUTOMATIC PARTS WASHER
standard Electric Heated
with standard 1½HP pump Motor (1)
220Volt / 3 (three phase) / 40Amps
Drawing Not to Scale
30 min.
PUMP
TIMER
BULB
BULB
DOOR
SWITCH
THERMO
-STAT
7 - DAY
TIMER
TO
TURNTABLE
MOTOR
PUMP CONTACTOR
HEATER CONTACTOR
30
20
10
Turn
Past
0FF
MINUTES
OFF
220
120
160
200
180
140
100
AC POWER IN
220V, 3, 40A
Ground to chassis
Control Box
Front View
Control Box
Rear View
Control Box Side View
(cover removed)
Electric models:
2846E, 4046E,
1.5HP,
220V-3ph-40A
Thermostat Probe in sleeve
Heater Box Cover
(cut-away view)
Drawing Not to Scale
Float
Switch
220V, 4500W,
Heater Terminals
Drawing Not to Scale
120GPM
PUMP
1½HP,
1 Phase,
MOTOR
2 LINKS
220Volt
100VA
TRANSFORMER
Note:
Unit will operate at
200V to 240V,
3 phase power
 Copper Capillary Tubing
