POWERJET OWNERS INSTALL & OPERATE MANUAL
Instructions for
POWERJET
® , 220Volt - 3phase
CONVERSION to SINGLE PHASE
ONLY QUALIFIED PERSONNEL SHOULD PERFORM ELECTRICAL CONNECTIONS !
CAUTION: DIS-CONNECT and LOCK-OUT ALL POWER BEFORE PROCEEDING !

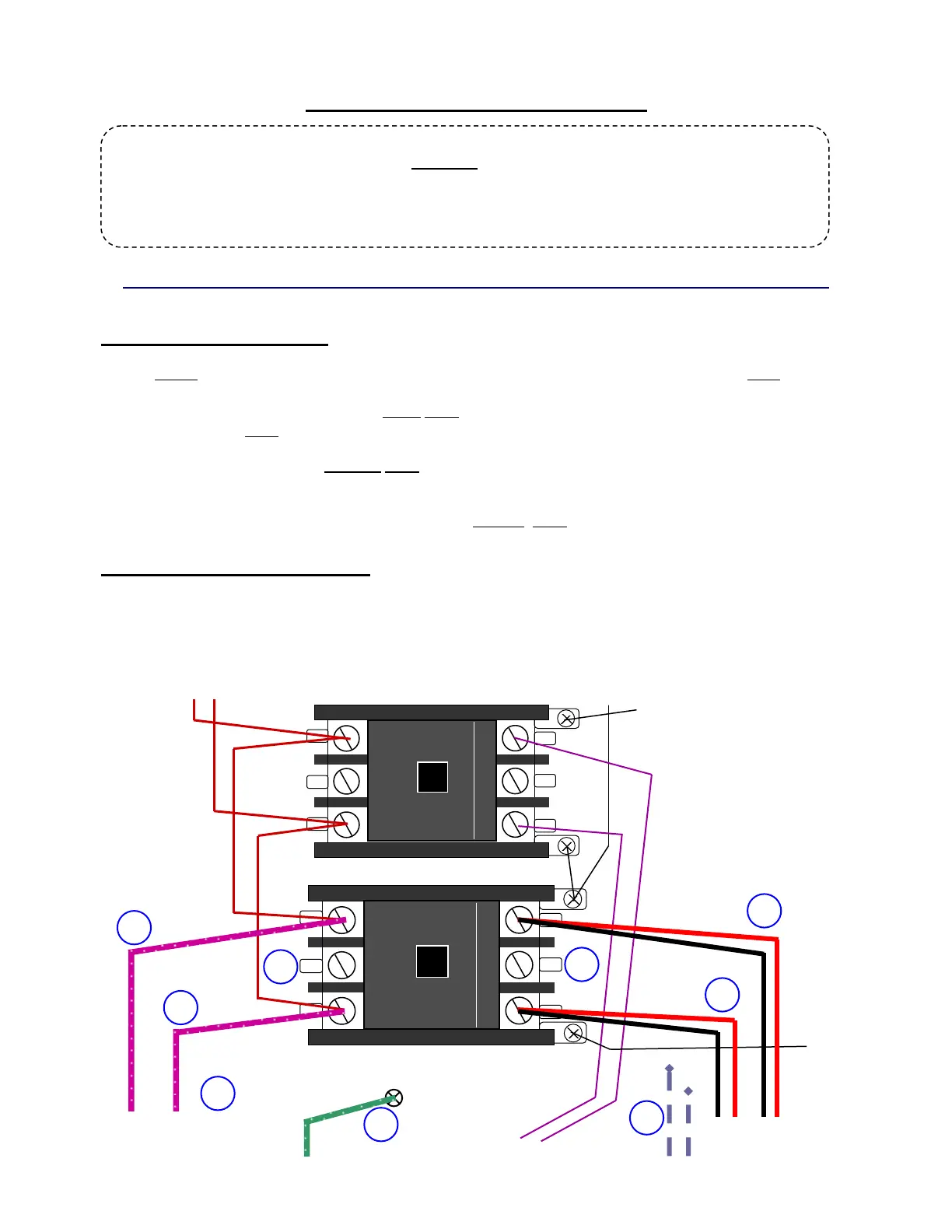

Single Phase HEATER WIRING:
The center terminals on both the left and the right sides of the HEATER CONTACTOR will NOT be used.
One Pair of Heater Wires each of the same color (i.e. red & red, OR white & white, OR black & black)
are taped off and NOT used.
Two Heater Wires, each of a different color (i.e. black & red, OR white & red, OR black & white),
connect to the top right side main terminal of the Heater Contactor.
The Two Remaining Heater Wires, (also each of a different color), connect to the bottom right side
main terminal of the Heater Contactor.
Single Phase Power LINE IN WIRING:
GROUND connection is to the chassis (same as the Three-Phase hook-up).
LINE IN (220V-Single-Phase, AC power) connection is to the upper and lower main terminals
on the left-hand side of the Heater Contactor.
Connect to a Properly Fused (breakered) 50Amp, 220V, 60Hz, Single-Phase, AC power source.
Single-Phase Power
LINE IN WIRING
Single-Phase
HEATER WIRING
EMC® POWERJET® models 2846E and 4046E, 220VOLT units,
are wired at the Factory for 220Volt / 3 PHASE / 60 cycle / 40 Amp - AC Power Hook-up !
ONLY these 220VOLT, 3-PHASE units, equipped with a standard 1½HP Single-Phase pump Motor,
can be Converted to run on SINGLE-PHASE power, . . at Your Hook-Up and Installation !
( an Optional Sealless Pump with a 5HP, Single-Phase Motor, is also available, on 4046 and 5846 units, for additional cost )
