POWERJET MANUAL
8f749dd9-8865-44fd-baed-1b68166d2198file.doc
POWERJET OWNERS INSTALL & OPERATE MANUAL
17
17

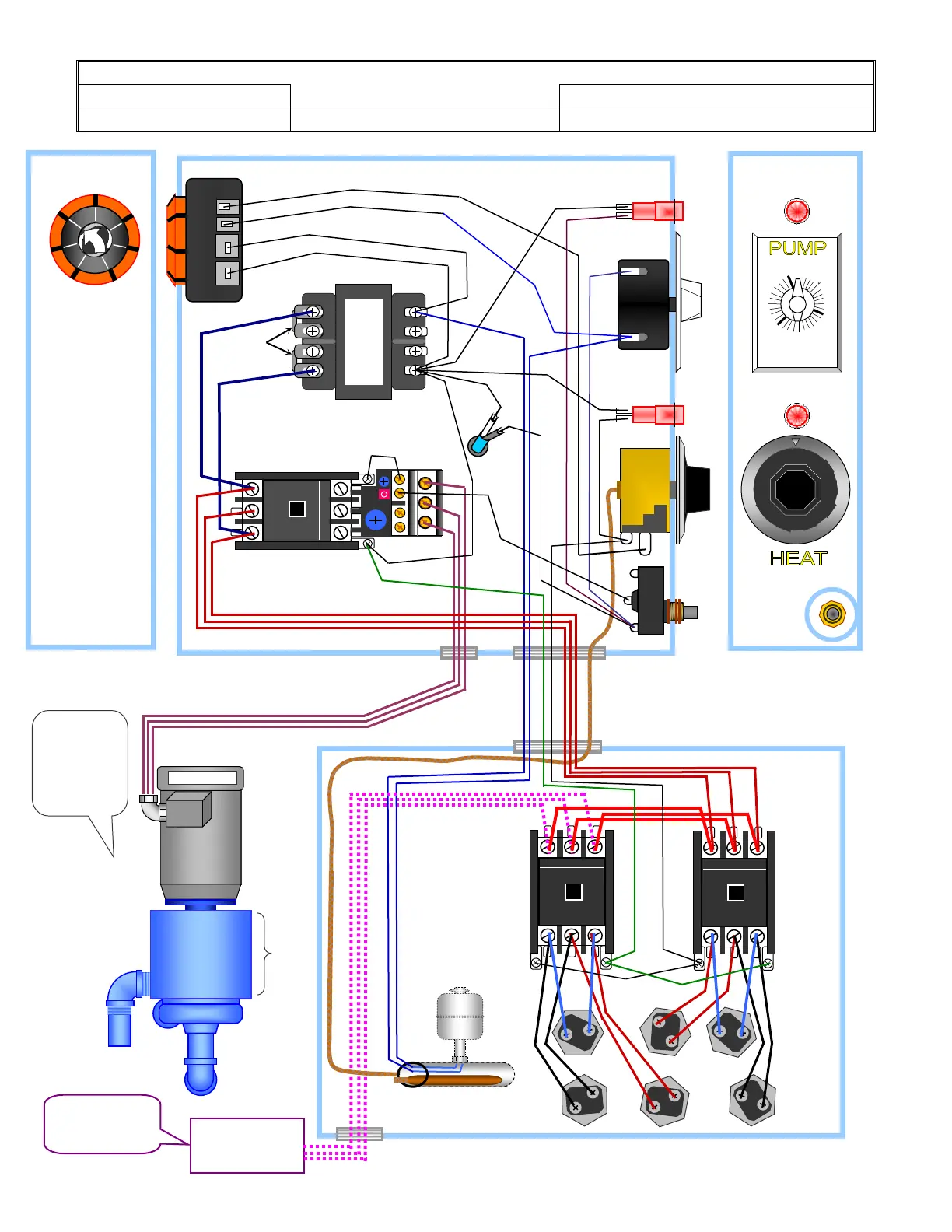

Wiring Diagram for :
EMC
®
POWERJET
®
model: 5846E
dwg: PJ-5846E-5HP-220V-3PH-80A
BC-07-06-2005
AUTOMATIC PARTS WASHER
standard Electric Heated
with standard 5HP pump Motor (3)
220Volt / 3 (three phase) / 80Amps
Drawing Not to Scale
30 min.
PUMP
TIMER
BULB
BULB
7 - DAY
TIMER
DOOR
SWITCH
THERMO
-STAT
2 LINKS
220Volt
100VA
TRANSFORMER
PUMP CONTACTOR
Over Load Relay
TO
TURNTABLE
MOTOR
HEATER CONTACTOR
AC POWER IN
220V, 3, 80A
Ground to chassis
Control Box
Front View
Control Box
Rear View
Control Box Side View
(cover removed)
Electric models:
5846E,
5HP,
220V-3ph-80A
To Pump Contactor (Power In)
Heater Box Cover
(cut-away view)
Drawing Not to Scale
220V, 4500W, (6) Heater
Elements
To Pump Motor
5HP,
3 Phase
MOTOR
Heavy Duty,
280GPM,
SEALLESS
PUMP
Drawing Not to Scale
PUMP
WELL
IMPORTANT !
CHECK THAT
PUMP MOTOR
ROTATION IS
CLOCKWISE AS
VIEWED FROM
TOP !
PUMP ROTATION
CLOCKWISE FROM TOP
HEATER
CONTACTOR
Float
Switch
Thermostat Probe in sleeve
AC POWER IN,
220V, 3ph, 80A
Note:
Unit will operate at
200V to 240V,
3 phase, power
30
20
10
Turn
Past
0FF
MINUTES
OFF
220
120
160
200
180
140
100
Copper Capillary Tubing
