EMC POWERJET - Load Size and Clearance Specifications; Maximum Load Size Clearance Dimensions

POWERJET MANUAL
8f749dd9-8865-44fd-baed-1b68166d2198file.doc POWERJET OWNERS INSTALL & OPERATE MANUAL
7
7
POWERJET MAXIMUM LOAD SIZE CLEARANCE DIMENSIONS
Model
A
Top Manifold to
Bottom Manifold
B
Top Manifold to
Bottom Rotor Bar
C
Top Manifold
To Turn Table
(Lowest position)
D
Top Rotor Bar
To Turn Table
(Lowest position)
E
Manifolds
Side to Side
F
Rotor Bars
Side to Side
G
Floor to
Turn Table top
(Lowest position)
2846
46”
44½”
42¾”
40¾”
28”
25½”
23½”
4046
46”
44½”
42¼”
40¼”
40”
37½”
24”
5846
46”
44” 
41” 
40” 
58”
54”
24½”

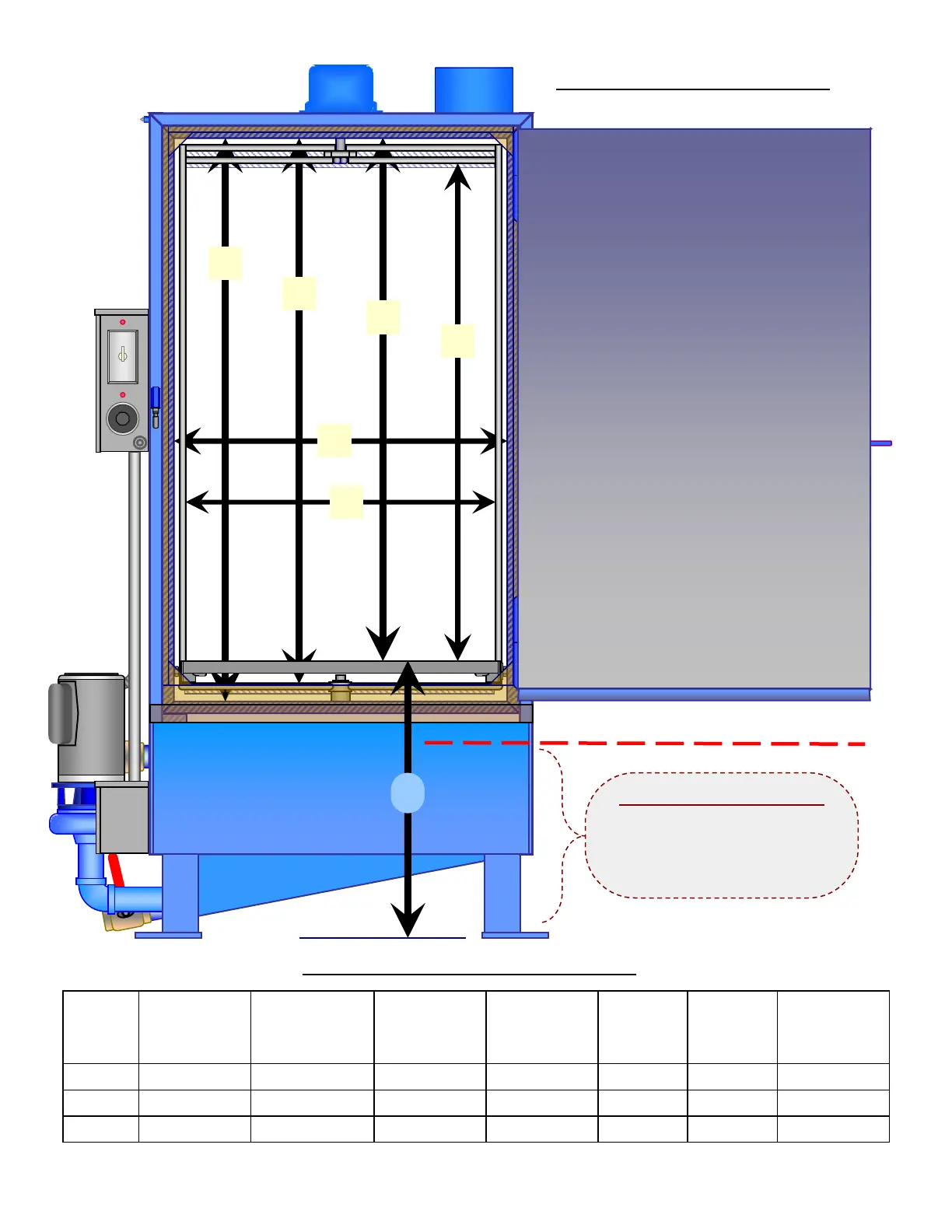

LOAD SIZE CLEARANCES
B
A
C
D
E
F
G
Approximate Water Fill Level – to Top of Filter Bags
Water Solution Tank Capacity
model 2846 . . . 50 gallons
model 4046 . . . 100 gallons
model 5846 . . . 200 gallons
