EMC ® POWERJET ® Cabinet Dimensions

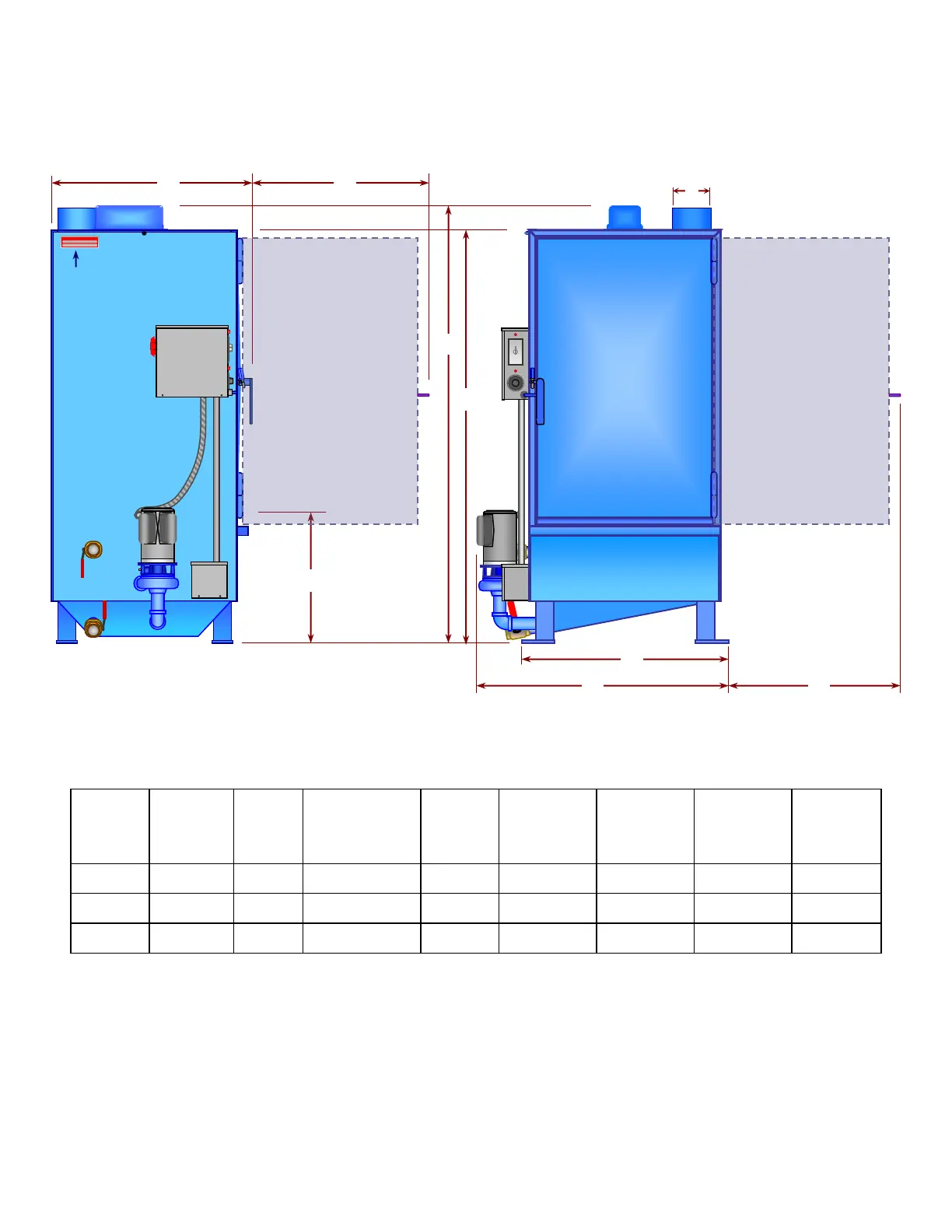

POWERJET ® CABINET OVERALL DIMENSIONS
Model
A
Total
Clearance
Height
B
Basic
Frame
Height
C
Floor to Top of
TurnTable Shelf
(Adjustable)
D
Depth,
Front
to Rear
E
Door
Swing
Clearance
F
Foot Pad
Width,
Side to Side
G
Total Width,
Side to Side
V
Vent Stack
Inside
Diameter
2846
73” 
69” 
min. 23½” 
33” 
add 30” 
35” 
42” 
6”
4046
73” 
69” 
min. 24” 
45” 
add 42” 
47” 
54” 
8”
5846
73” 
69” 
min. 24½” 
63” 
add 60” 
65” 
77” 
12”
V
A
G
E
F
B
C
E
D
FRONT
VIEW
SIDE
VIEW
CONTROL
BOX
Heater
Box
Motor
Pump
Skimmer
Drain
ID
Plate
