EMC VNX Series Hardware Information Guide

116 EMC VNX8000 Hardware Information Guide
Disk-array enclosures

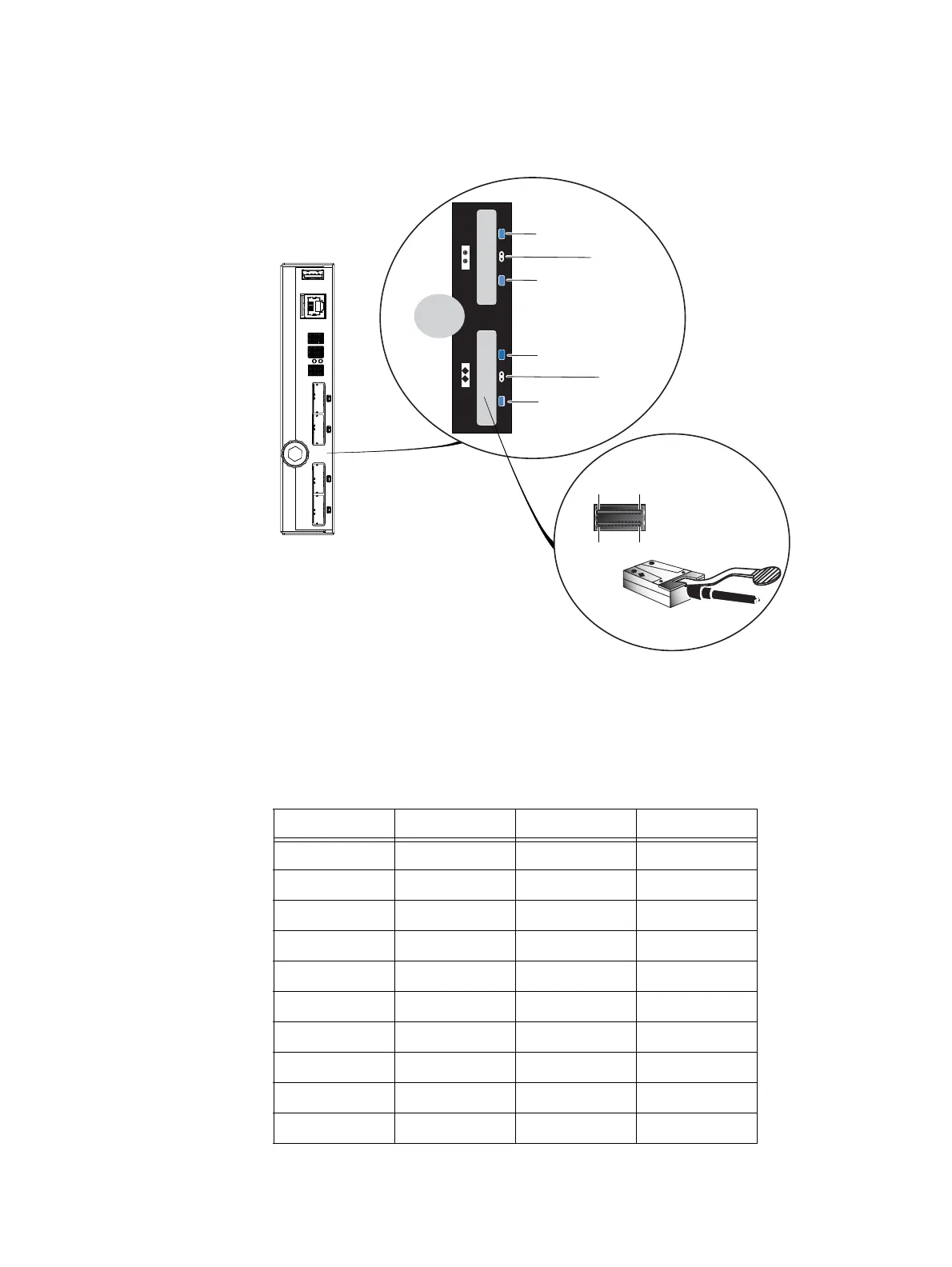

Figure 97 shows an example of the port connector (socket) and cable connector (plug)
with pull tab.
Figure 97 6-Gb/s mini-SAS port and cable connector
Table 49 lists the 4U, 60 (2.5- or 3.5-inch) DAE ICM 6-Gb/s mini-SAS port pin signals used
on the connector.
6 Gb/s SAS
input
6 Gb
SAS
X4 X4X4 X4
1
1
0
0
6 Gb/s SAS
output
LED (bi-color);
blue/green
LED (bi-color);
blue/green
LED (bi-color);
blue/green
LED (bi-color);
blue/green
Pin A1 A13
B1 B13
Table 49 6-Gb/s mini-SAS port connector pinout
Pin Signal Pin Signal
A1 GND B1 GND
A2 Rx 0+ B2 Tx 0+
A3 Rx 0- B3 Tx 0-
A4 GND B4 GND
A5 Rx 1+ B5 Tx 1+
A6 Rx 1- B6 Tx 1-
A7 GND B7 GND
A8 Rx 2+ B8 Tx 2+
A9 Rx 2- B9 Tx 2-
A10 GND B10 GND

EMC VNX Series Specifications

General

Management Interface	Unisphere
Drive Support	SAS, NL-SAS, Flash (SSD)
RAID Levels	RAID 0, 1, 3, 5, 6
Protocols Supported	Fibre Channel, iSCSI, NFS, CIFS
Data Services	Deduplication, Compression, Snapshots, Replication
Processor	Intel Xeon
Operating System	VNX Operating Environment (block), VNX File Operating Environment (file)
