EMC2 VNX Series Hardware Information Guide

120 EMC VNX5400 Hardware Information Guide
Disk-array enclosures

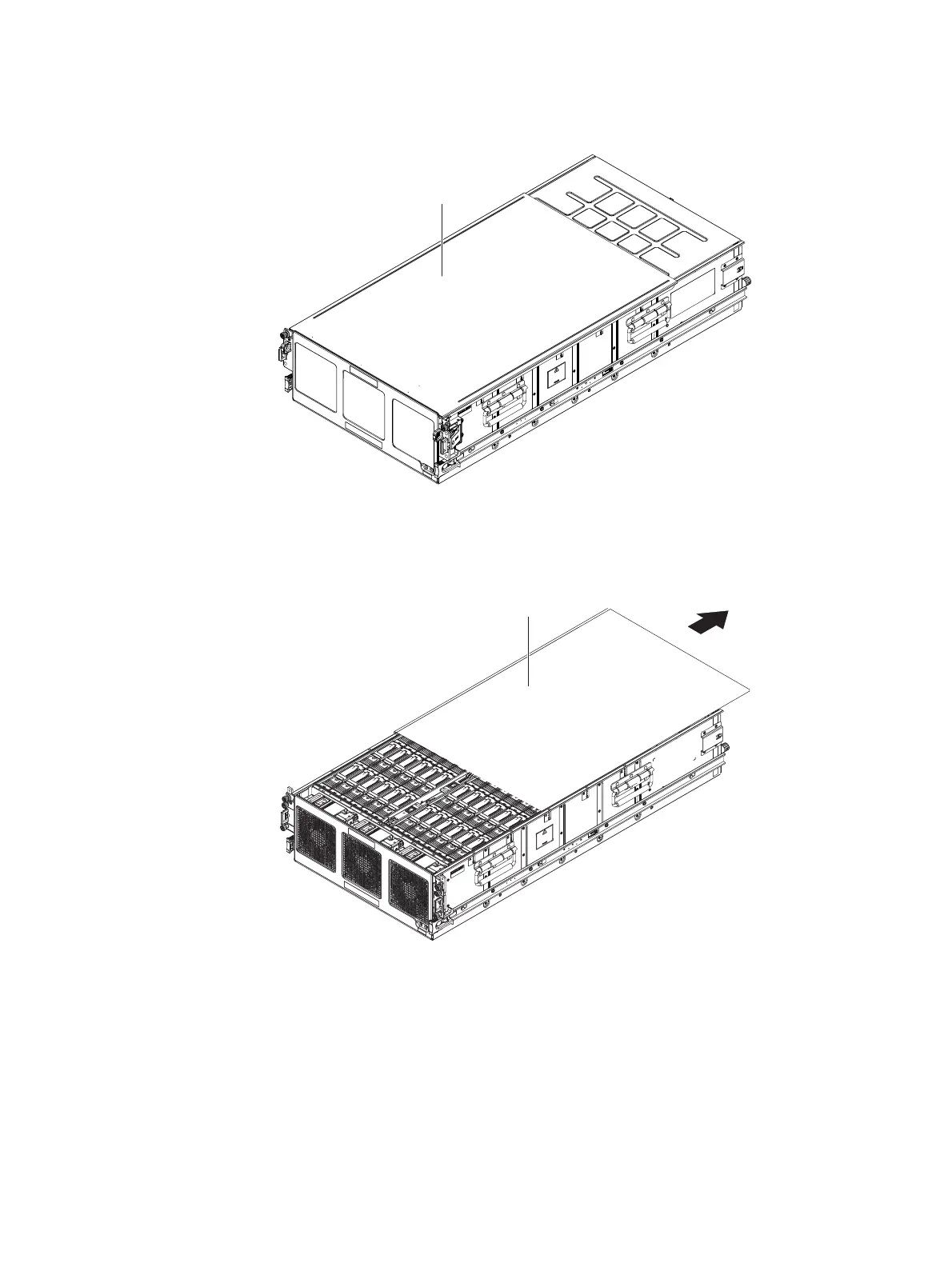

Figure 98 shows an example of a 4U, 60 (2.5- or 3.5-inch) DAE with the top cover closed.
Figure 98 4U, 60 (2.5- or 3.5-inch) DAE (with top cover closed)
Figure 99 shows an example of a 4U, 60 (2.5- or 3.5-inch) DAE with the top cover open
showing the disk drives, LCCs, and the cooling modules or fans.
Figure 99 4U,60 (2.5-or 3.5-inch) DAE (with top cover open)
Disk drive
The disk drives for the 4U, 60 (2.5- or 3.5-inch) DAE are encased in cartridge-style
enclosures. This enclosure is used so that varied types and sizes of disk drives can be
supported. Each cartridge has an easy-to-pull and push latch. The latch allows you to
quickly and efficiently snap-out a disk drive for removal and snap-in for installation.
Top cover
VNX-000656
Top cover
VNX-000649
