EMC2 VNX Series Hardware Information Guide

Disk-array enclosures
EMC VNX5400 Hardware Information Guide 121
Two drive sizes are supported in the 4U, 60 (2.5- or 3.5-inch) DAE:

You can add or remove a disk drive while the DAE is powered up, but you should exercise
special care when removing modules while they are in use. Drive modules are extremely
sensitive electronic components.
◆ 2.5-inch 6-Gb/s SAS, 6-Gb/s NL-SAS, or Flash disk drives (hot-swappable)
◆ 3.5-inch 6-Gb/s SAS, 6-Gb/s NL-SAS, or Flash disk drives (hot-swappable)

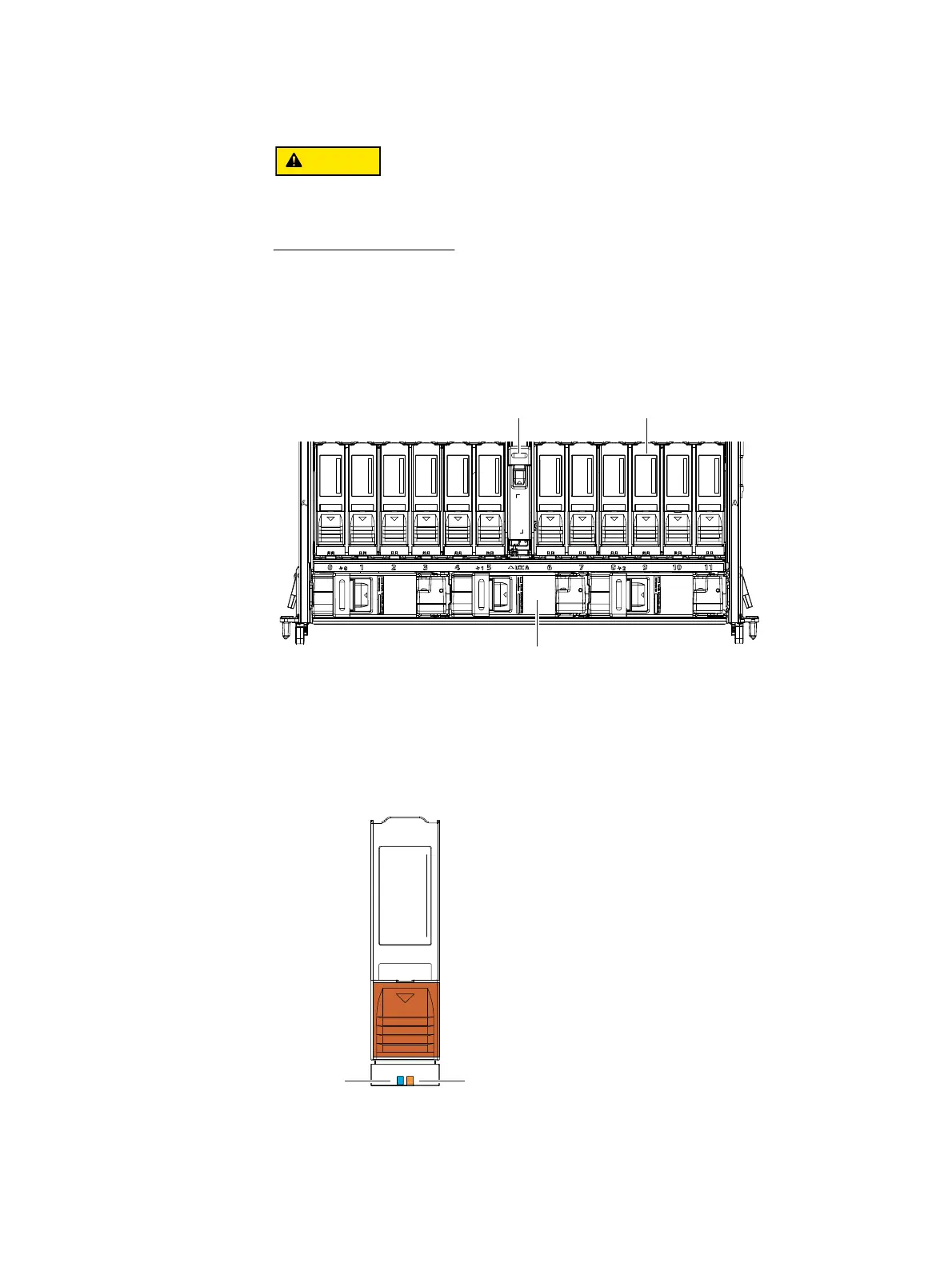

Figure 100 shows a top-down cut-away interior view of 4U, 60 (2.5- or 3.5-inch) DAE
showing the location of the disk drives, fans (cooling modules), and LCC A.
Figure 100 4U, 60 (2.5- or 3.5-inch) top-down cut-away of disk drives, fans (cooling modules), and
LCC A (interior view)
Figure 101 shows an example of the disk drive power and fault LEDs.
Figure 101 Disk drive power LED and fault LED
LCC A Disk
Fan
(cooling module)
CL4735
Disk drive
fault LED
(amber)
Disk drive
power LED
(blue)
