Introduction to the analyzer
Front view

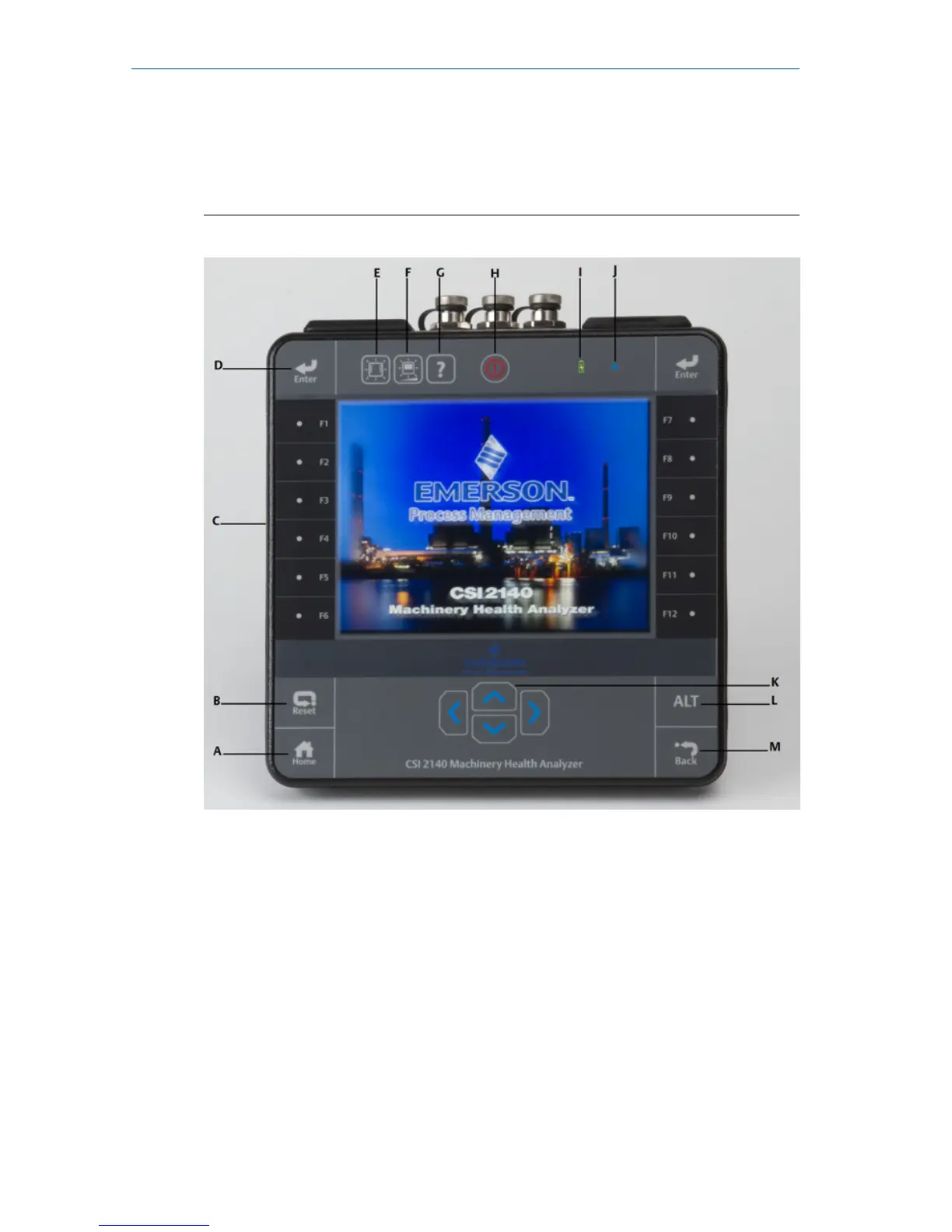

CSI 2140 front panelFigure 1:
A. Home key - Return to the Home screen from any program.
B. Reset key - Return to the main menu in a program.
C. Function keys - Display menu options.
D. Enter key - Select a menu or option.
E. Keypad backlight key - Turn on the backlight under the keys.
(1)
F. LCD backlight key - Set the backlight for the LCD touchscreen.
G. Help key - Display Help text for a key.
H. Power key -Turn the analyzer on or off, or put the analyzer in standby.
I. Battery LED - Green light if the battery pack is charged; amber when charging.
J. Status LED - Blue light flashes each time you press a key or option, blinks in
power save mode, and remains solid in standby mode.
(1) To comply with relevant safety certifications, the CSI 2140 labeled "ATEX/IECEx Zone 2" does not
have a keypad backlight.
March 2016 Quick Start Guide
MHM-97430 Rev 4 5
