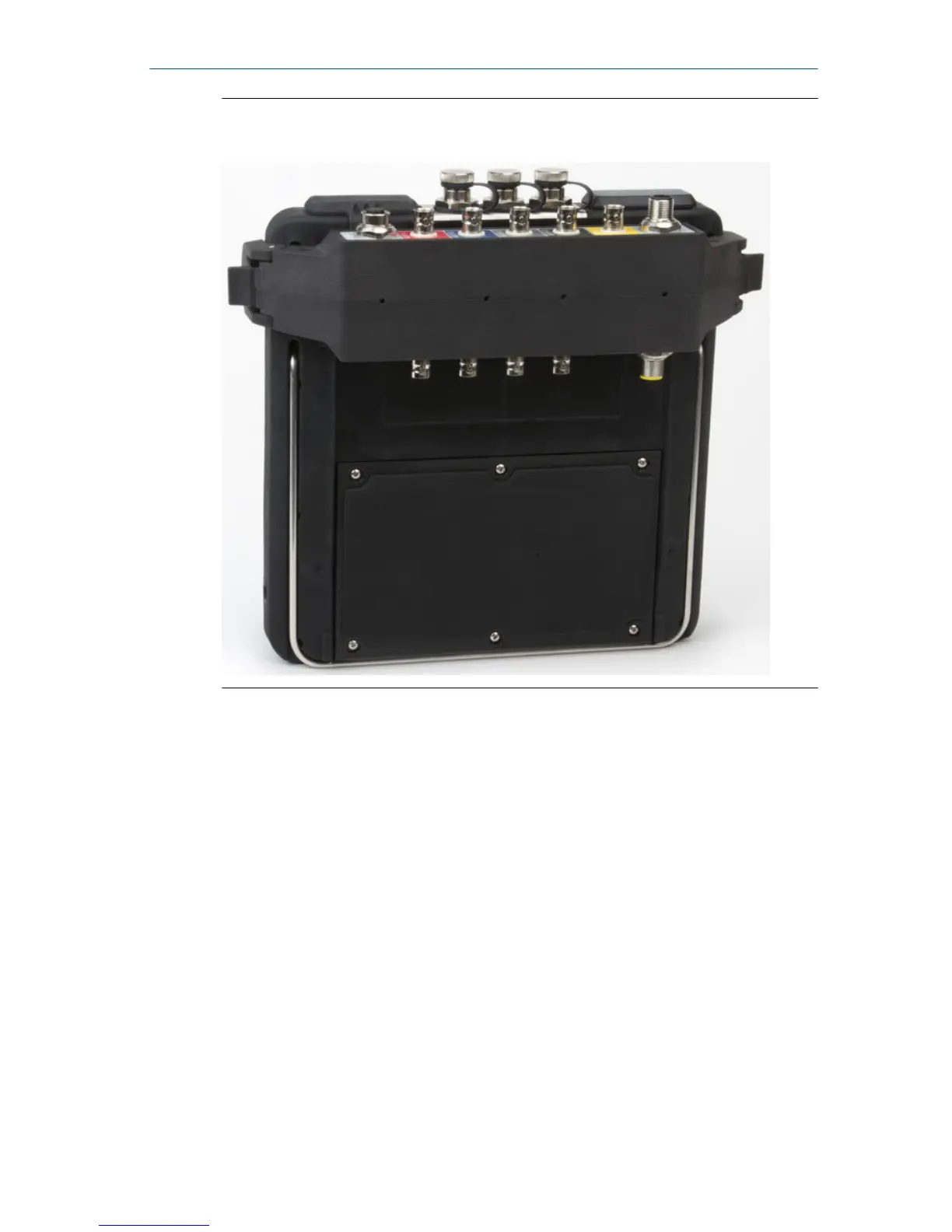

CSI 2140 Four-Channel Input Adapter attached to the CSI 2140
without the interface cable
Figure 5:
Use with the CSI 2140
The CSI 2140 Four-Channel Input Adapter requires no additional setup,
except in the Balance program. For the Balance program, you must enable
the mux option to use the CSI 2140 Four-Channel Input Adapter.
To access the other connectors, turn the adapter over and connect to the CSI
2140 using the appropriate Interface cable.
Multiple inputs
Your analyzer may support up to four channels in each program to
simultaneously collect data. To use the multi-channel functionality, set the
number of inputs in the Input Setup menu in each program, set up a sensor
for each input, and use a connection listed below. For routes, you need to set
up the inputs and sensors in AMS Machinery Manager.
Quick Start Guide March 2016
14 MHM-97430 Rev 4
