K. Arrow keys - Move through menus.
L.
ALT key - Display an alternate screen, if available.
M. Back key - Back up to the main menu in a program.
Top view

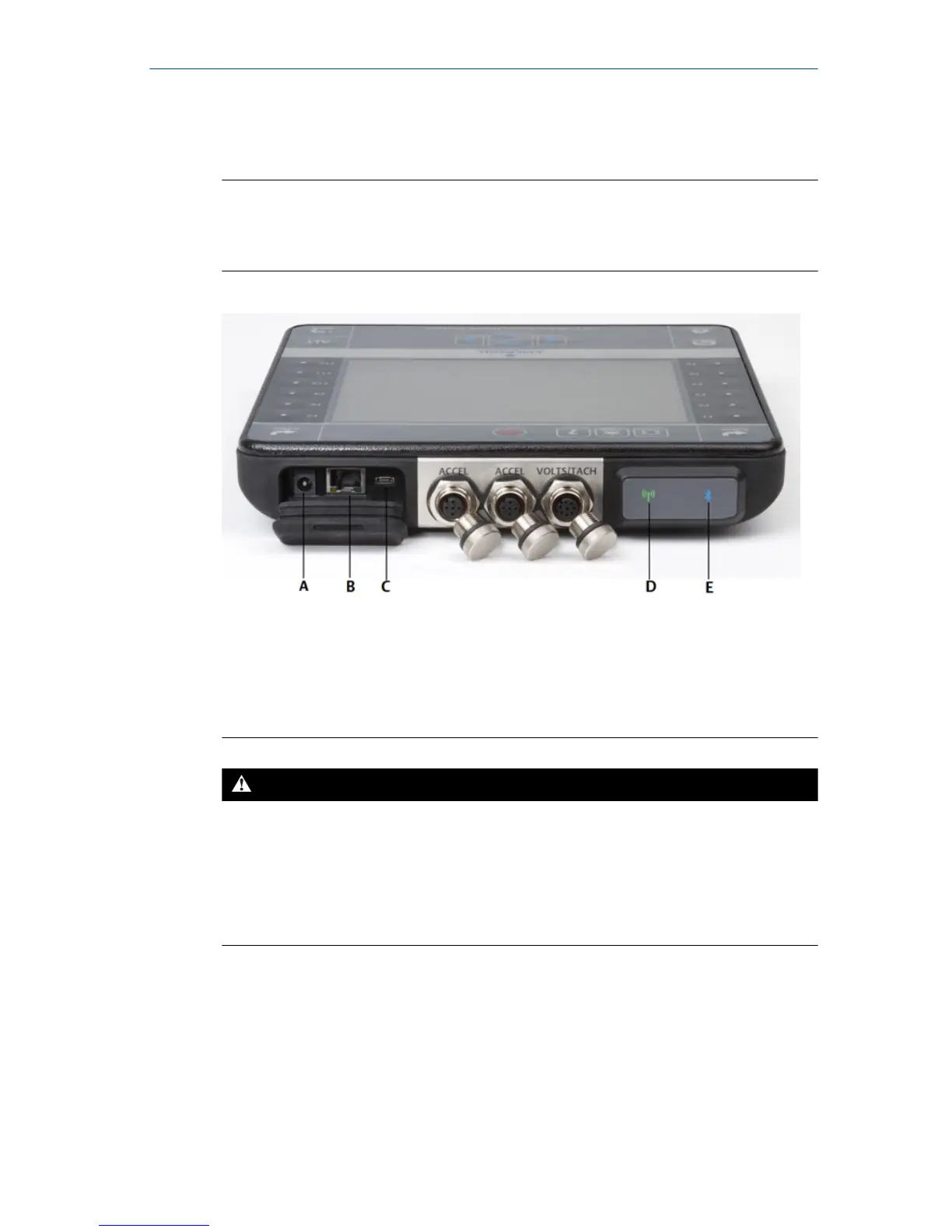

ConnectorsFigure 2:
A. Power supply connector.
B.
Ethernet port.
C. Micro USB port.
D. Wireless LED.
E. Bluetooth
®
LED.
CAUTION!
To prevent damage to the analyzer:
• Do not connect a signal outside the range of 0 to 24 volts into the Accel
input of the CSI 2140.
• Do not connect a signal outside the range of +/- 24 volts into the Volts /
Tach input of the CSI 2140.
Turn on the analyzer for the first time
You need to activate the battery pack before you can turn on the analyzer for
the first time. The battery pack is shipped in storage mode to protect the
battery charge. Connect the provided power supply cord into an outlet and
to the analyzer to activate the battery pack.
Quick Start Guide March 2016
6 MHM-97430 Rev 4
