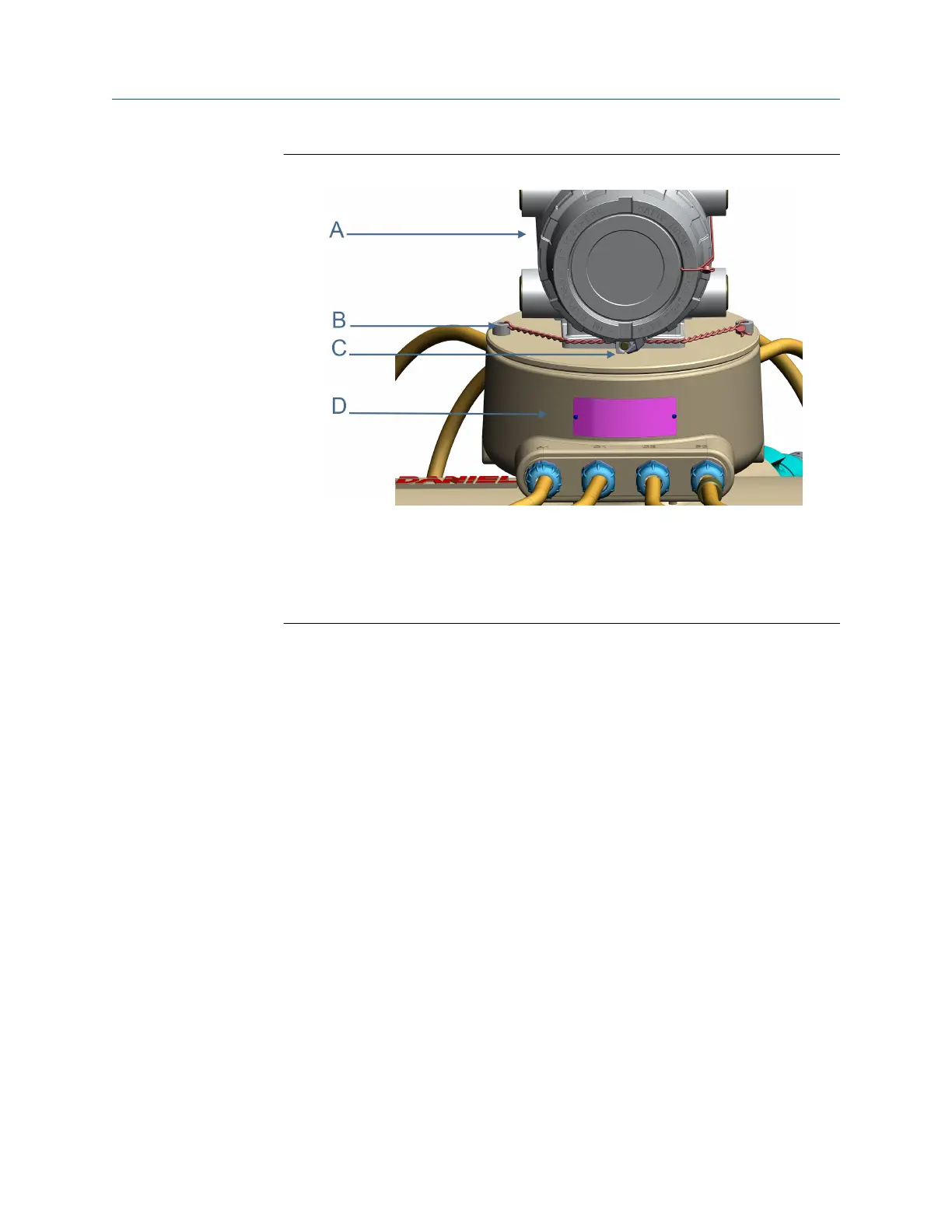

Figure 3-37: Base Enclosure security seals
A. Transmitter Electronics Enclosure
B. Security wire seals (optional)
C. Transmitter Electronics endcap security latch
D. Base Enclosure
15. Cut wire ends to remove excess wire.
16. Apply conduit sealing compound according to manufacturer’s recommendations.
17. Apply power to the meter.
This completes the Acquisition Module replacement procedure.
