WARNING
CONTENTS MAY BE HAZARDOUS
The meter must be fully depressurized and drained before attempting to remove the
transducer holder of T-Slot transducer assembly, or the T-200 transducer assembly. If
gas or fluid begins to leak from the transducer holder of T-Slot transducer assembly, or
T-200 transducer stalk assembly, stop immediately and reinstall the transducer holder
or T-200 transducer stalk assembly.
Failure to comply may cause serious injury or equipment damage.

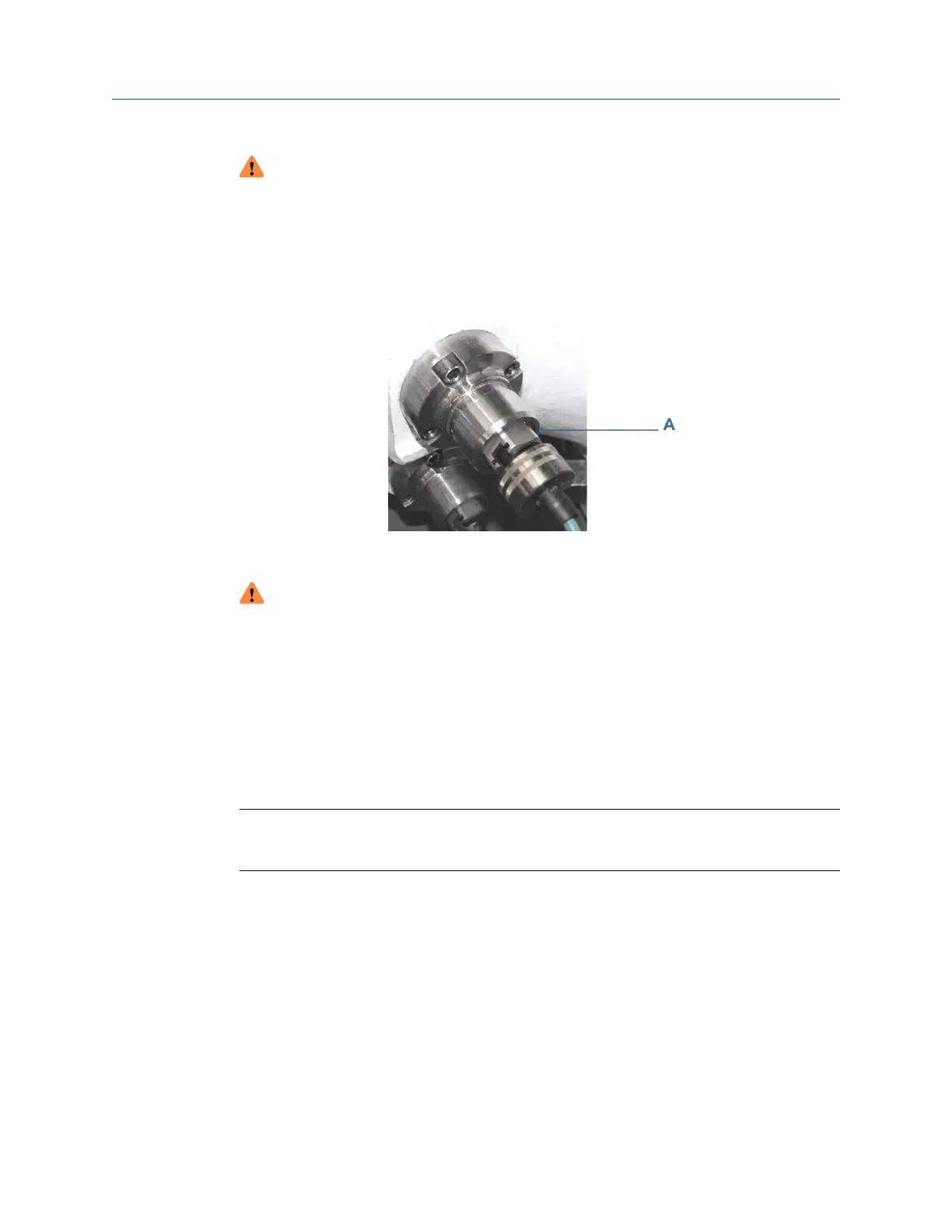

A. Transducer holder
WARNING
CUTTING HAZARD
Sharp edges may be present on the meter.
Wear appropriate personal protective equipment when working on the meter. Failure to
comply may cause serious injury.
3.4.1
Remove the transducer holder with the extractor tool
To replace transducer holder while under pressure, refer to Ultrasonic Split Clamp
Extractor Tool Operation Manual (Daniel P/N 3-9000-744).
Note
The extractor tool is used on Daniel Model 3414 Ultrasonic Flow Meters and is not
applicable for use with Daniel Model 3412 and Model 3411 Ultrasonic Flow Meters.
3.4.2
Remove the transducer holder without the extractor
tool
Daniel 3410 Series Ultrasonic Gas Flow Meters utilize transducer holders that contain the
transducer assemblies and act as the pressure barrier between the transducers and the
fluid. Under normal maintenance such as transducer replacement, the transducer holders
do not need to be removed. If it is necessary to remove the transducer holders, the
following steps detail how to safely remove and reinstall them. Before removing and
installing the transducer holder, connect to the meter using Daniel MeterLink and collect
and save a Maintenance Log.
Meter repairs Maintenance and Troubleshooting manual
June 2019 P/N 3-9000-769
66 Gas Ultrasonic Flow Meters
