16. Place the Transmitter Electronics Enclosure onto the Base Enclosure. Rotate the
Transmitter Electronics Enclosure until the mounting holes are correctly aligned
with the holes in the Base Enclosure.
17. Install the two hex head bolts with a 6 mm Allen wrench to secure the Transmitter
Electronics Enclosure to the Base Enclosure.
18. Reattach the external ground wire to the ground lug, reconnect the conduit, and
power the meter.
19. If required, install the security seal wire into and through one of the two holes in the
end cap. Choose holes that minimize counterclockwise rotation of the end cap
when the security wire is taut (maximum wire diameter 0.078 inch; 2.0 mm).

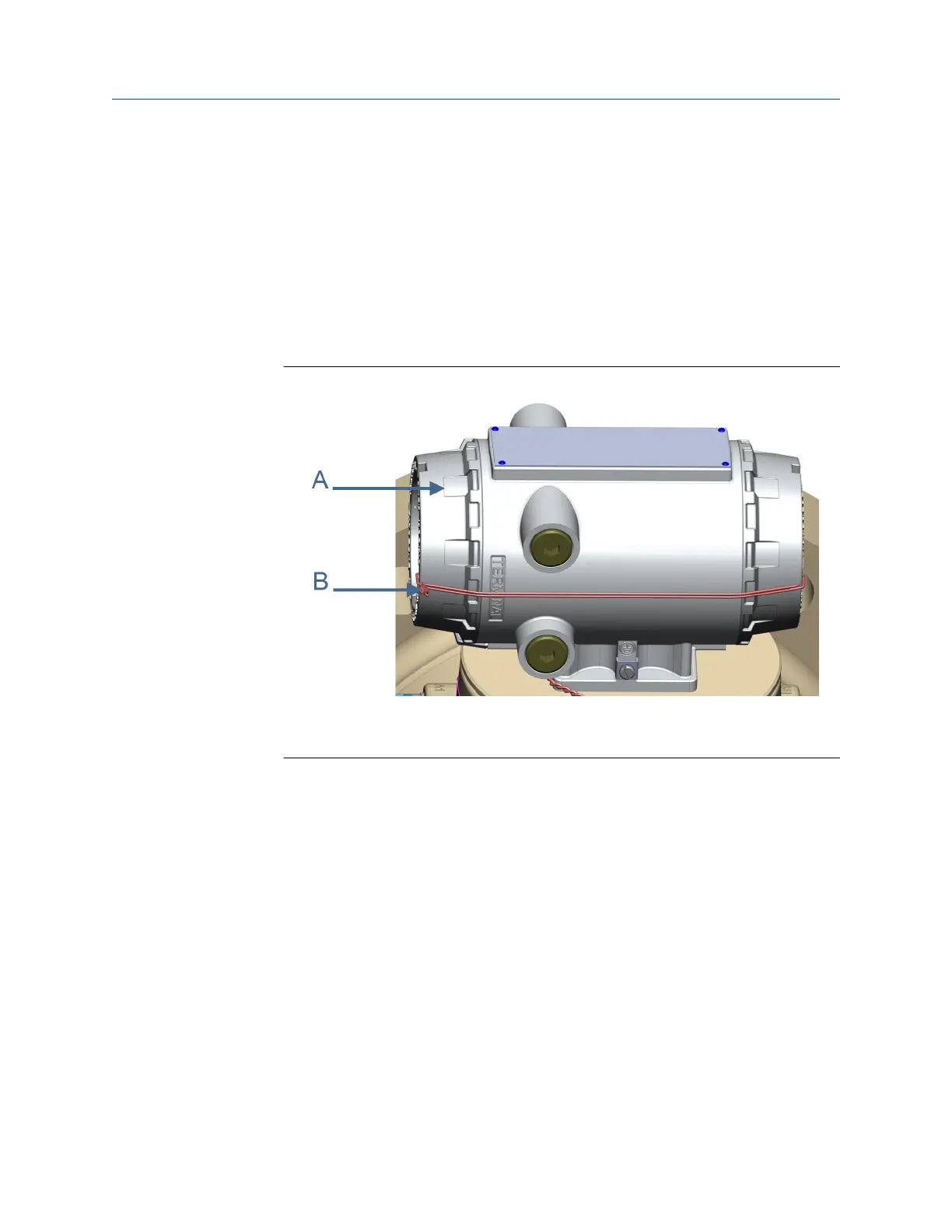

Figure 3-21: Transmitter Electronics Enclosure security seals
A. Transmitter Electronics Enclosure end cap
B. Security wire seals
20. Adjust the security wire, removing all slack and thread into the lead seal.
21. Cut wire ends to remove excess wire.
22. If required, attach the security wire seals on the Base Enclosure.
Maintenance and Troubleshooting manual Meter repairs
P/N 3-9000-769 June 2019
Maintenance and Troubleshooting manual 85
