Emerson Fisher FIELDVUE DVC6000f User Manual

Parts
December 2009
8-5

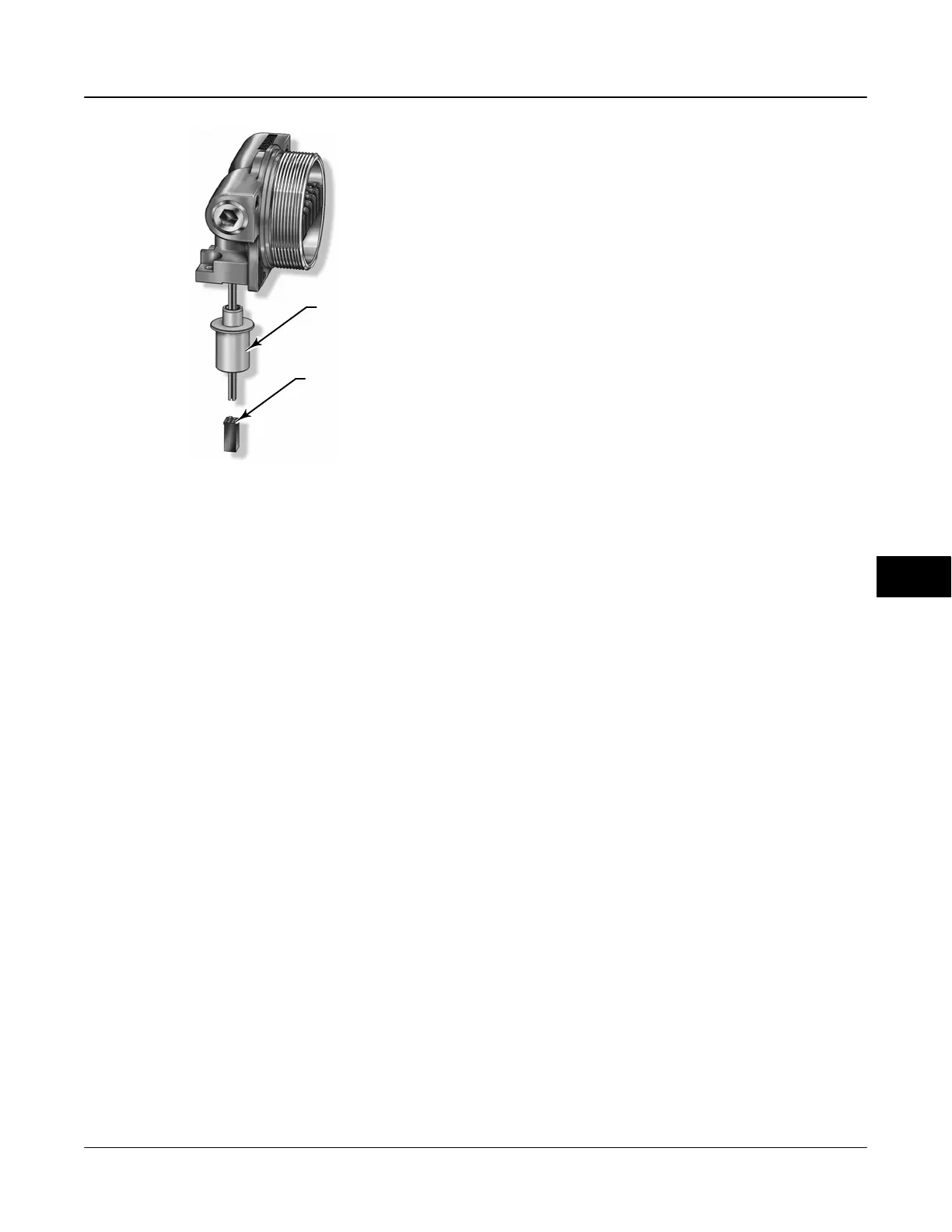

Figure 8-1. Terminal Box of Natural Gas Certified
FIELDVUE DVC6000f Digital Valve Controller
GAS-BLOCKING
PRESS-FIT ADAPTOR
WIRING CONNECTOR
W9528
Key Description Part Number
Terminal Box
DVC6010f, DVC6020f, DVC6030f, DVC6005f
(see figures 8-1, 8-2, 8-3, 8-4, and 8-5)
4 Terminal Box Cap
(17)
34* O-ring
(1,9,17)
36* O-ring
(1,9,17)
44 Wire Retainer, pl stl
(2)
(6 req’d) (not shown)
58 Set Screw, hex socket, SST
(2,17)
72 Cap Screw, hex socket, SST
(2,17)
164 Terminal Box Assembly
(9)
Feedback Connections Terminal Box
DVC6005f (see figure 8-5)
4 Terminal Box Cap
(17)
34* O-ring
(1,9,17)
36* O-ring
(1,9,17)
44 Wire Retainer, pl stl
(2,18)
(5 req’d) (not shown)
58 Set Screw, hex socket, SST
(2,17)
62 Pipe Plug, hex hd, SST
(17)
72 Cap Screw, hex socket, SST
(2,17)
(3 req’d)
262 Adapter
(17)
263* O-ring
(17)
Standard 1F463606992
Extreme temperature option, (fluorosilicone) 10B9207X012
264 Terminal Box Assembly, remote
(17)
Key Description Part Number
Pressure Gauges, Pipe Plugs, or Tire
Valve Assemblies (see figure 8-6)
47* Pressure Gauge, nickel-plated brass case, brass connection
Double-acting (3 req’d); Single-acting (2 req’d)
PSI/MPA Gauge Scale
To 60 PSI, 0.4 MPa 18B7713X042
To 160 PSI, 1.1 MPa 18B7713X022
PSI/bar Gauge Scale
To 60 PSI, 4 bar 18B7713X032
To 160 PSI, 11 bar 18B7713X012
PSI/KG/CM
2
Gauge Scale
To 60 PSI, 4 KG/CM
2
18B7713X072
To 160 PSI, 11 KG/CM
2
18B7713X082
66 Pipe Plug, hex hd
For double-acting and single acting direct w/gauges
(none req’d)
For Single-acting reverse w/gauges (1 req’d)
For all units w/o gauges (3 req’d)
67 Tire Valve Assembly (3 req’d)
Stainless Steel Construction
DVC6010f (oversized) (4 req’d)
Not for mounting on 1250 and 1250R actuators.
Feedback / Remote Travel Sensor Parts
Common Feedback Parts
DVC6010f, DVC6020f, DVC6030f, DVC6015,
DVC6025, and DVC6035 (see figures 8-2, 8-3, 8-4,
8-7, 8-8, and 8-9)
46 Alignment Pin
(6,18)
for DVC6010f, DVC6030f, DVC6015 and DVC6035
64 Anti-seize compound (not furnished with the instrument)
65 Lubricant, silicone sealant (not furnished with the instrument)
8
*Recommended spare
1. Available in the Elastomer Spare Parts Kit
2. Available in the Small Hardware Spare Parts Kit
6. Available in Alignment Pin Kit
9. Available in the Terminal Box Kit
17. Available in the Remote Terminal Box Kit
18. Available in Feedback Unit Kit
