S600+ Field Upgrade Guide
12. Install New CPU Module
Once you have set all jumpers, slide the CPU module into the S600
chassis, ensuring that the module fits between the metal glides. Press
the module firmly to secure the module’s connector to the backplane,
and tighten the retaining screws.
Security Plate?
The old security plate does not fit the new CPU module. Use the
security plate included in the upgrade kit. Follow any site-required
processes to re-attach wire seals.
Proceed to the next step.
13. Wire New CPU Module
Refer to any notes or wiring diagrams you made for step 3. The new
CPU module removes some of the communication ports present on the
old CPU module (Remote I/O) and relocates others (COM 1-2 is now
on the bottom of the faceplate). Refer to Figure 9 for a mapping
diagram.
Ethernet port moved
Optional second
Ethernet port
COM 1-2 removed
(use port on front
anel
Remote I/O
ort removed
Four additional
RS485 ports (9,
10, 11, & 12)
Ground
removed
USB port

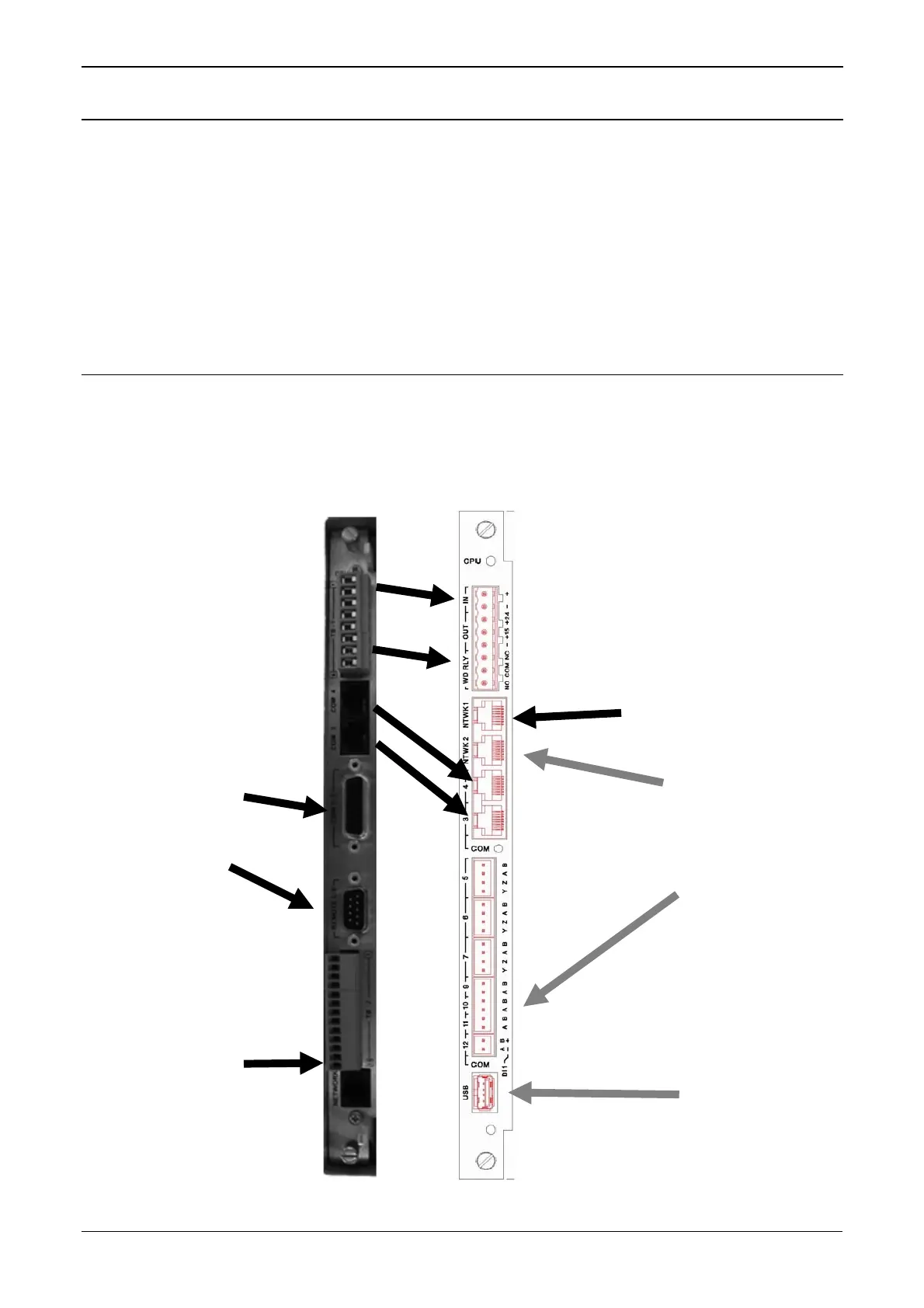

Figure 9. Comm Port Mappings on New CPU Module
Revised Feb-11 11
