Emerson FloBoss S600+ - 9. Set Communcations Jumpers

S600+ Field Upgrade Guide
Securit
y
j
um
p
er
(
P3
)
Cold start jumper P2)
Communication
j
um
p
ers
(
P7 throu
g
h- P15, P17, and P18
)

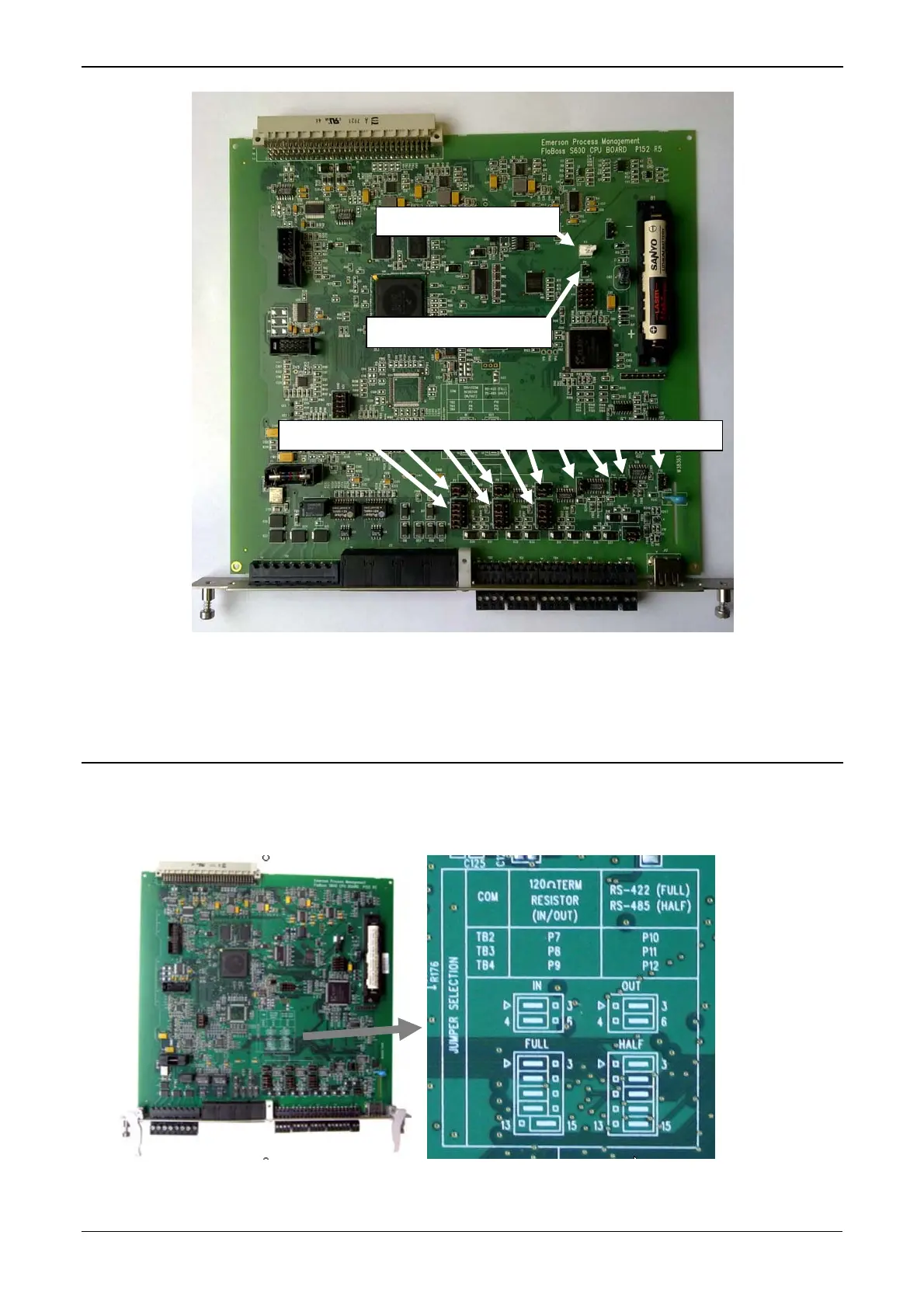

Figure 7. S600+ CPU Module Jumpers
Proceed to the next step.
9. Set Communcations Jumpers
Use the communication jumpers to configure comm port settings. An
explanatory diagram printed on the CPU module helps you determine
what settings to choose (see Figure 8).
Figure 8. CPU Module Communication Jumpers
8 Revised Feb-11
