S600+ Field Upgrade Guide

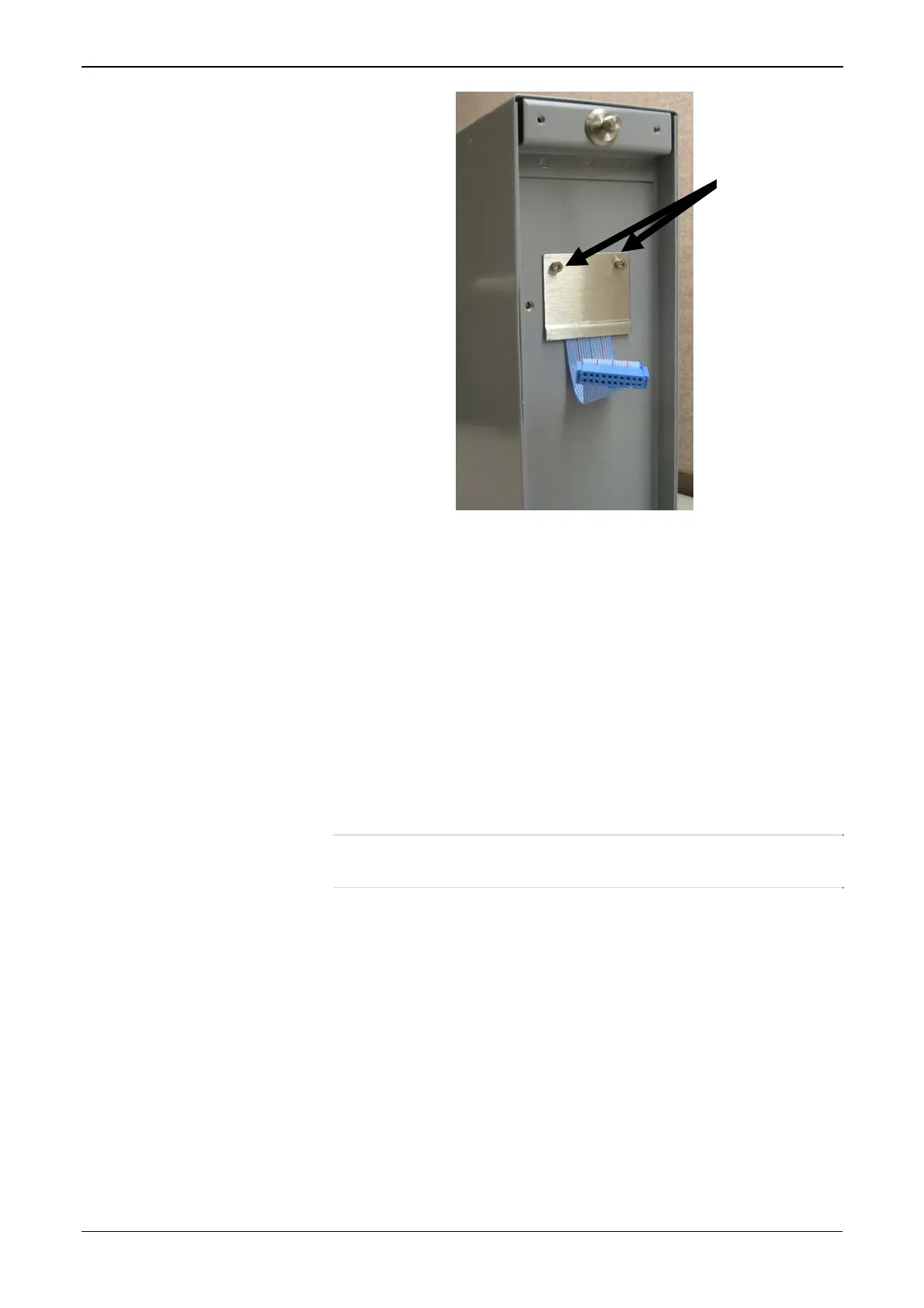

Hex nuts
Figure 5. Protective Plate
2. Carefully pull the connector cable free from its connection in the
chassis. Note the orientation of the cable connector.
3. Select the longer connector cable from the upgrade kit and plug it
into the connection in the S600 chassis.
4. Replace the metal protective plate and the two hex screws.
5. Select the ferrite EMC clamp from the upgrade kit and peel the
protective coating from its adhesive backing.
6. Place the top of the ferrite clamp 6 cm below the bottom of the
protective plate. Position the clamp so that it opens to the left and
press the clamp so that it adheres to the chassis.
Note: This positioning ensures that the clamp does not interfere
with components on the PCB.
7. Thread the connector cable through the ferrite clamp and close the
clamp. See Figure 6.
Revised Feb-11 5
