Appendix F
Transmitter components and installation
wiring
Topics covered in this appendix:
•
Installation types
•
Power supply terminals and ground
•
Input/output (I/O) wiring terminals
F.1 Installation types
Model 1700 and Model 2700 transmitters can be installed five different ways, only one of
which applies to your specific installation.
• Integral – The transmitter is mounted directly on the sensor. You do not need to
install the transmitter separately, but you will need to connect power supply and I/O
wiring.

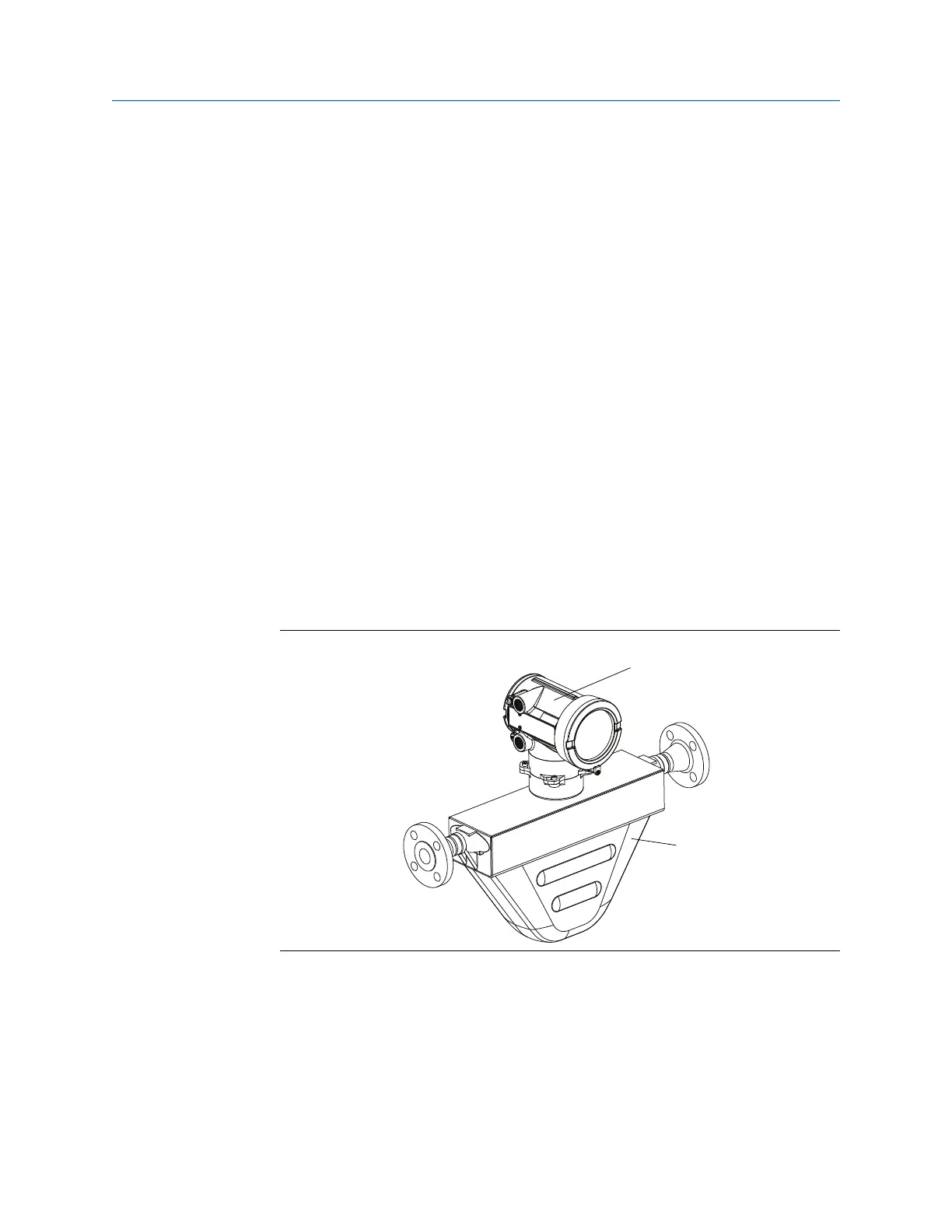

Integral installationFigure F-1:
• High-temperature flexible conduit – Some high-temperature meters come
preinstalled with a flexible conduit between the sensor and the transmitter. You do
not have to connect any wires between the transmitter and the sensor, but you do
need to mount the electronics separately and connect power and I/O wiring to the
transmitter.
Transmitter components and installation wiring
Configuration and Use Manual 347
