3.2 Mount the sensor
NOTICE
• Lifting the sensor by the electronics or purge connections can damage the device.
• To reduce the risk of collecting liquid in the electronics housing, do not orient
transmitters or sensor junction boxes with their conduit openings pointing upward.
Procedure

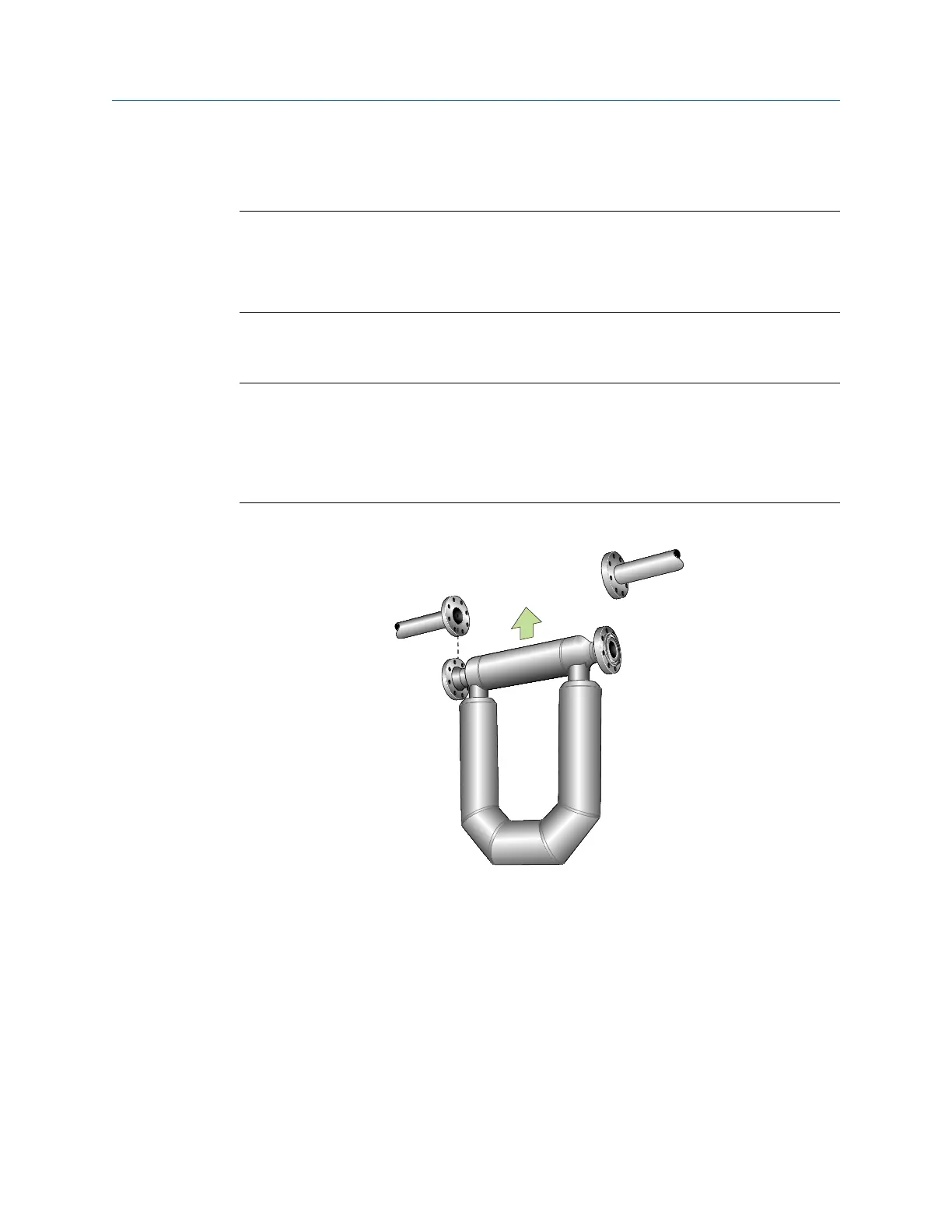

Mount the sensor.
Notes
• Do not use the sensor to support the piping.
• The sensor does not require external supports. The flanges will support the sensor in
any orientation.Some sensor models installed in small, flexible pipelines have optional
installation instructions that allow for external supports.
