Emerson Micro Motion ELITE Installation Manual

3.6 Mount a CMFS007, CMFS010 or CMFS015
sensor in a bracket
The CMFS007, CMFS010 and CMFS015 sensors have an optional mounting bracket for use
with small or flexible pipeline. If the pipeline adequately supports the sensor, this
procedure can be skipped.
Procedure
1. Secure the mounting bracket to a wall or other flat surface with four user-supplied
0.3 in (8 mm) bolts.
2. Place the sensor into the bracket.
3. Secure the sensor in the bracket with the supplied 0.3 in (8 mm) U-bolts.

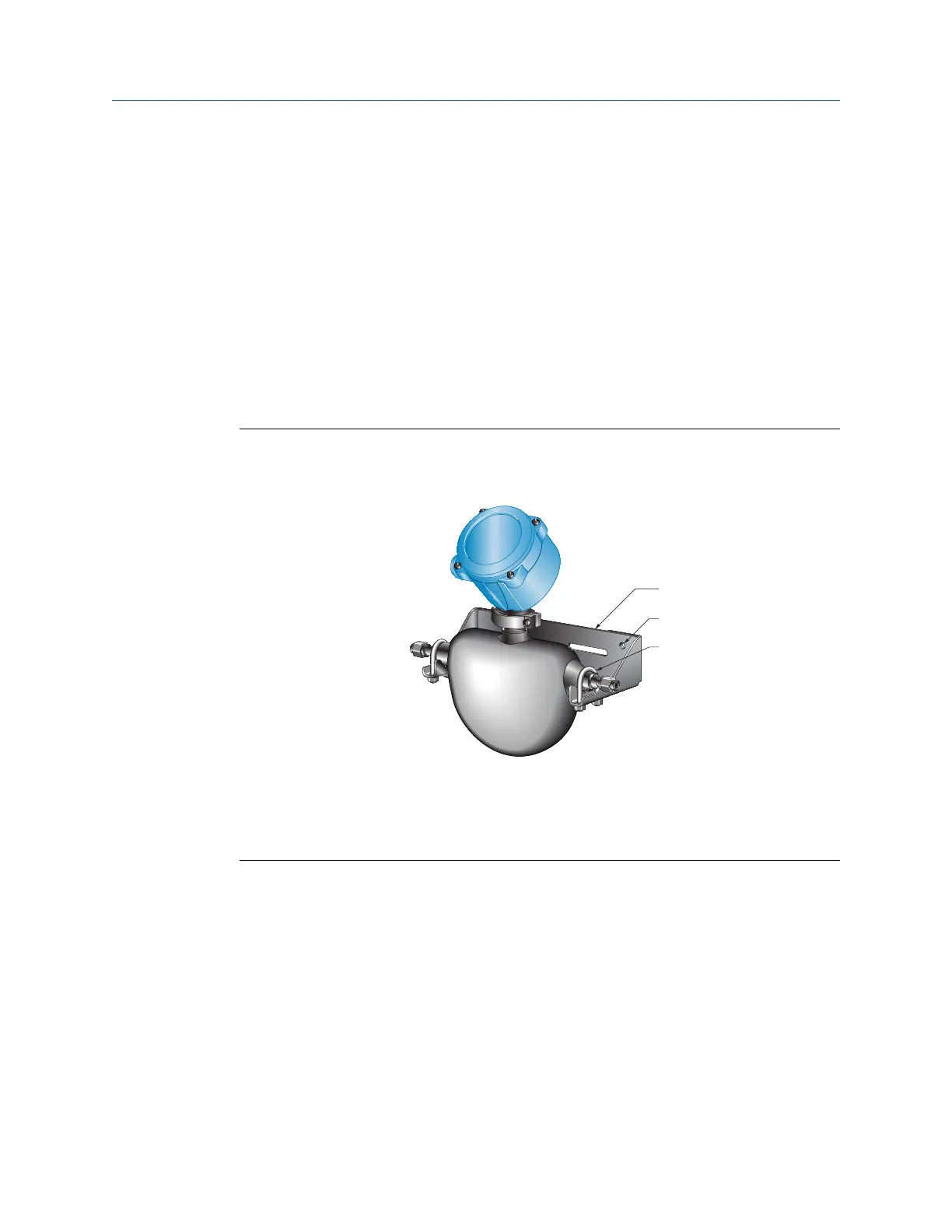

Figure 3-9: Mounting bracket for CMFS007, CMFS010, and CMFS015
A
B
C
A. Mounting bracket
B. Mounting holes
C. Supplied U-bolts
Mounting Installation Manual
October 2021 20002158
24 Micro Motion ELITE
