Quick Panel Operator User Manual Section 3
GFK-2847AA Jan 2023
Software 38
QuickPanel
+
Management Information Base (MIB)
Overview
The QuickPanel
+
SNMP Agent maintains a MIB that describes the
managed device parameters like HMI Tags, alarms, and such. The SNMP
Manager uses the MIB to request specific information for the SNMP
Agent and translates the information as needed for the SNMP Managers
or Network Management System (NMS).
The MIB is a collection of information for managing network elements. It
is a plain text file, self-explanatory, and prepared based on the Structure
of Management Information (SMI), an adapted subset of Abstract Syntax
Notation One (ASN.1) standard and notation.
NOTICE
The QuickPanel
+
MIB follows the SNMP V2c and is also compatible with SNMP V1 based on
the strictness of MIB compilers supported by SNMP Managers.
The MIB is comprised of managed objects identified as Object Identifier
(Object ID or OID). Each Identifier is unique and denotes specific
characteristics of a managed device. When queried, the return value of
each identifier may be different. Figure 37 displays the MIB tree structure
and the private enterprise number allocated by the Internet Assigned
Numbers Authority (IANA) for the EMERSON SNMP products and OID for
the QuickPanel
+
MIB:
•
OID for GEIP node: .1.3.6.1.4.1.24893
•
OID for qppMIB node: .1.3.6.1.4.1.24893.1.5.2.1.1

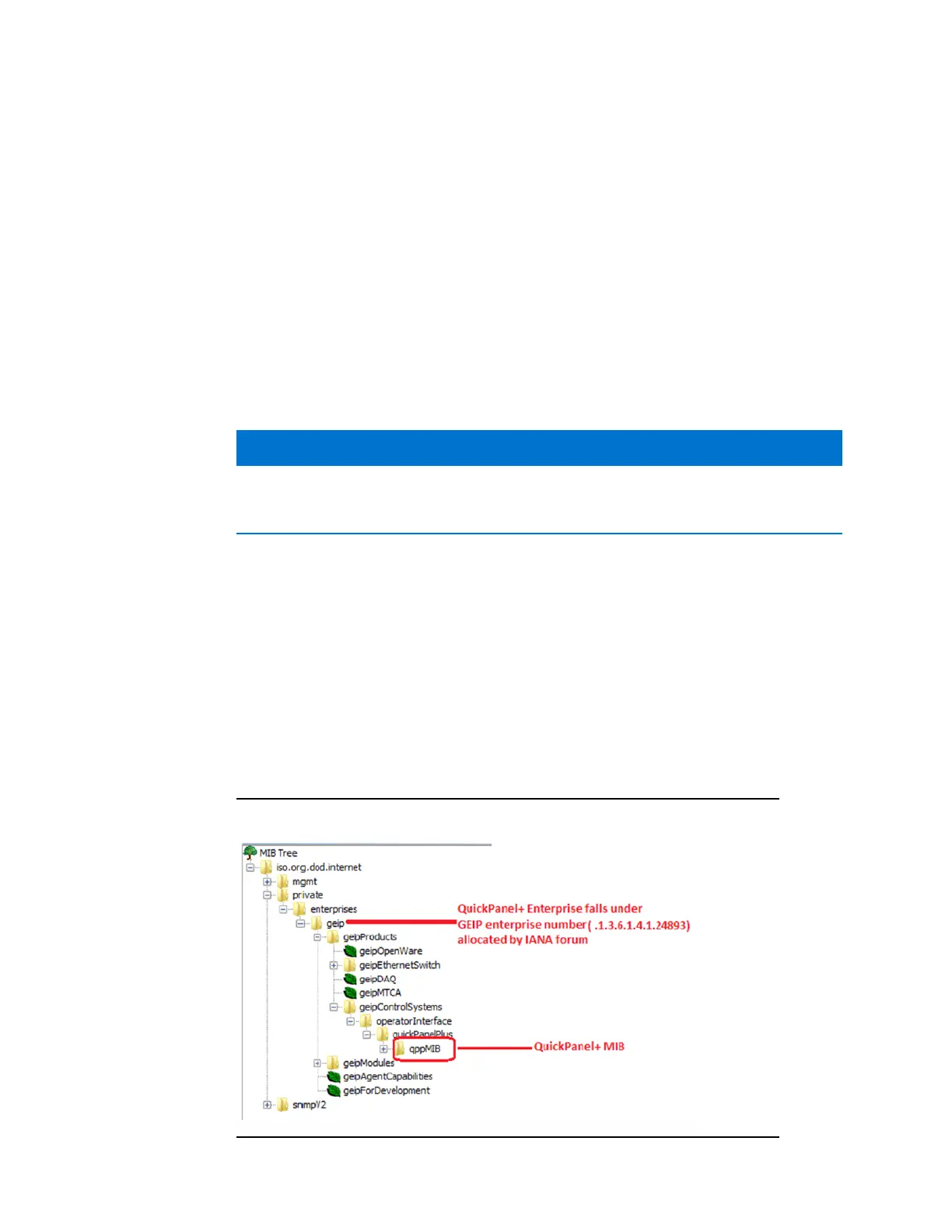

Figure 37: MIB Tree Structure
