Quick Panel Operator User Manual Section 5
GFK-2847AA Jan 2023
Mounting and Installation 58
To install the QuickPanel
+
1.
Cut an opening in the panel according to the specifications in the
following figures.
Note: Panel cutout tolerances are
+
0.50, –0.00 mm (
+
0.02, –0.00 in).

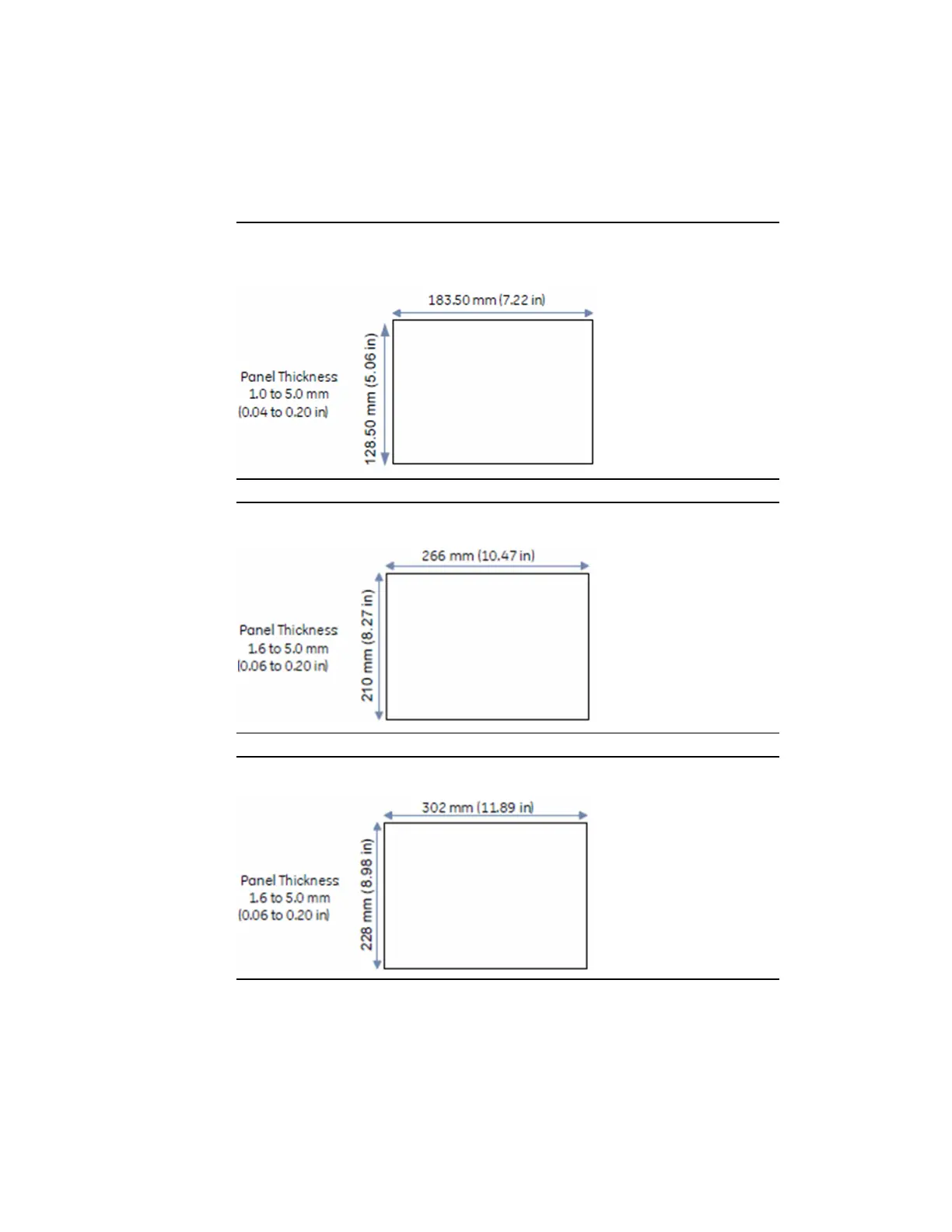

Figure 55: Panel Cutout Dimensions IC755CxS06RDx or
IC755CxW07CDx
Figure 56: Panel Cutout Dimensions IC755CxS10CDx
Figure 57: Panel Cutout Dimensions IC755CxS12CDx
