Quick Panel Operator User Manual Section 8
GFK-2847AA Jan 2023
Save and Restore Settings 91

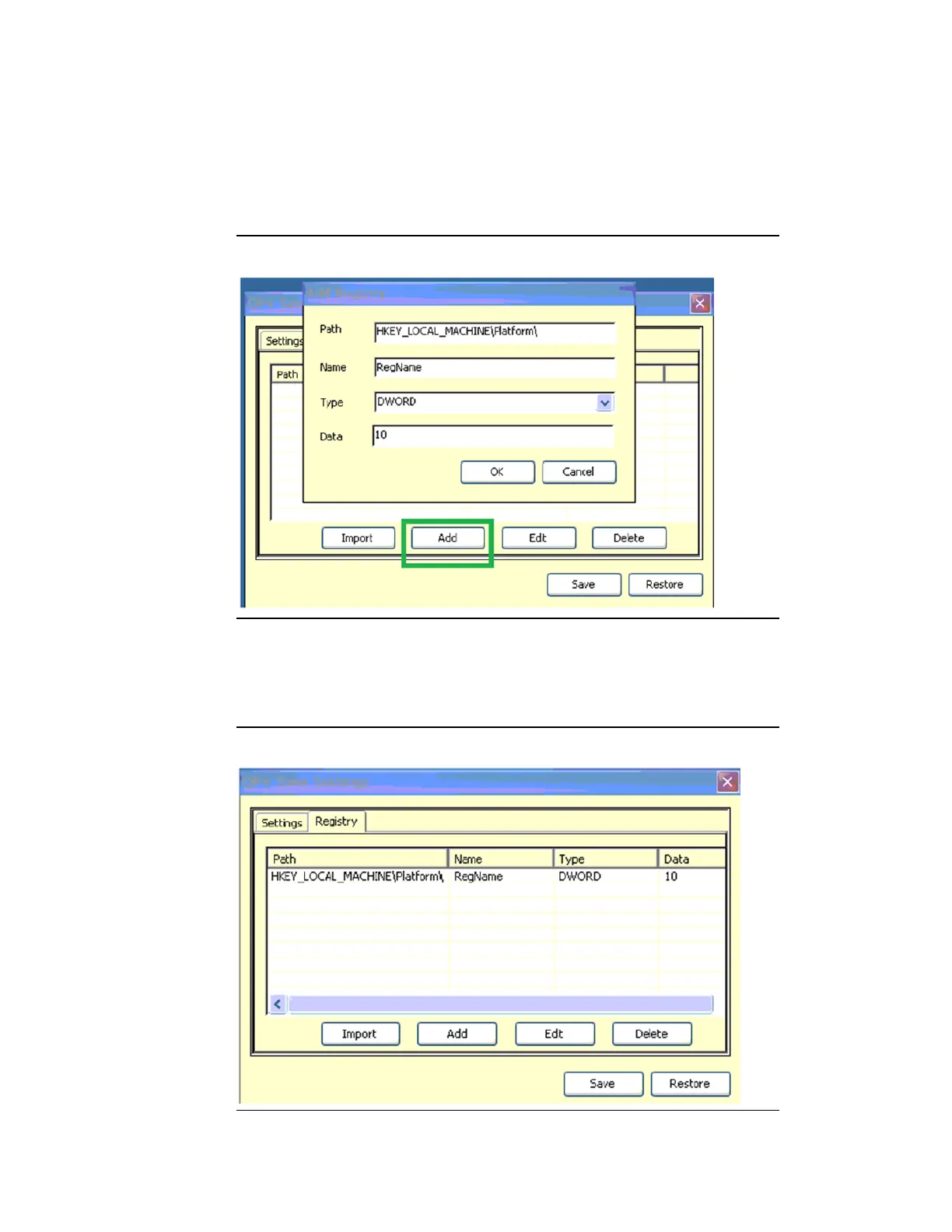

To update the value to a registry key click on the Add button (Figure 90).
This displays a dialog (Figure 91) to enter the values for Key Path, Name,
Type, and value. After entering the values click the OK button to close the
dialog, and the entered data may be viewed as a record in the Registry
tab.
Figure 91: Add Registry Key Dialog Box
The entered data can be edited by selecting the record in the list box and
clicking on the Edit button. This opens the dialog box that allows the user
to edit the data.
Figure 92: Registry List Display
