Safety
information
Product
information
Mechanical
installation
Electrical
installation
Getting
started
Basic
parameters
Running the
motor
Optimization NV Media Card
Advanced
parameters
Diagnostics UL Listing
12 Unidrive M100 / M101 Control User Guide
Issue Number: 1
3 Mechanical installation
3.1 Installing / removing option

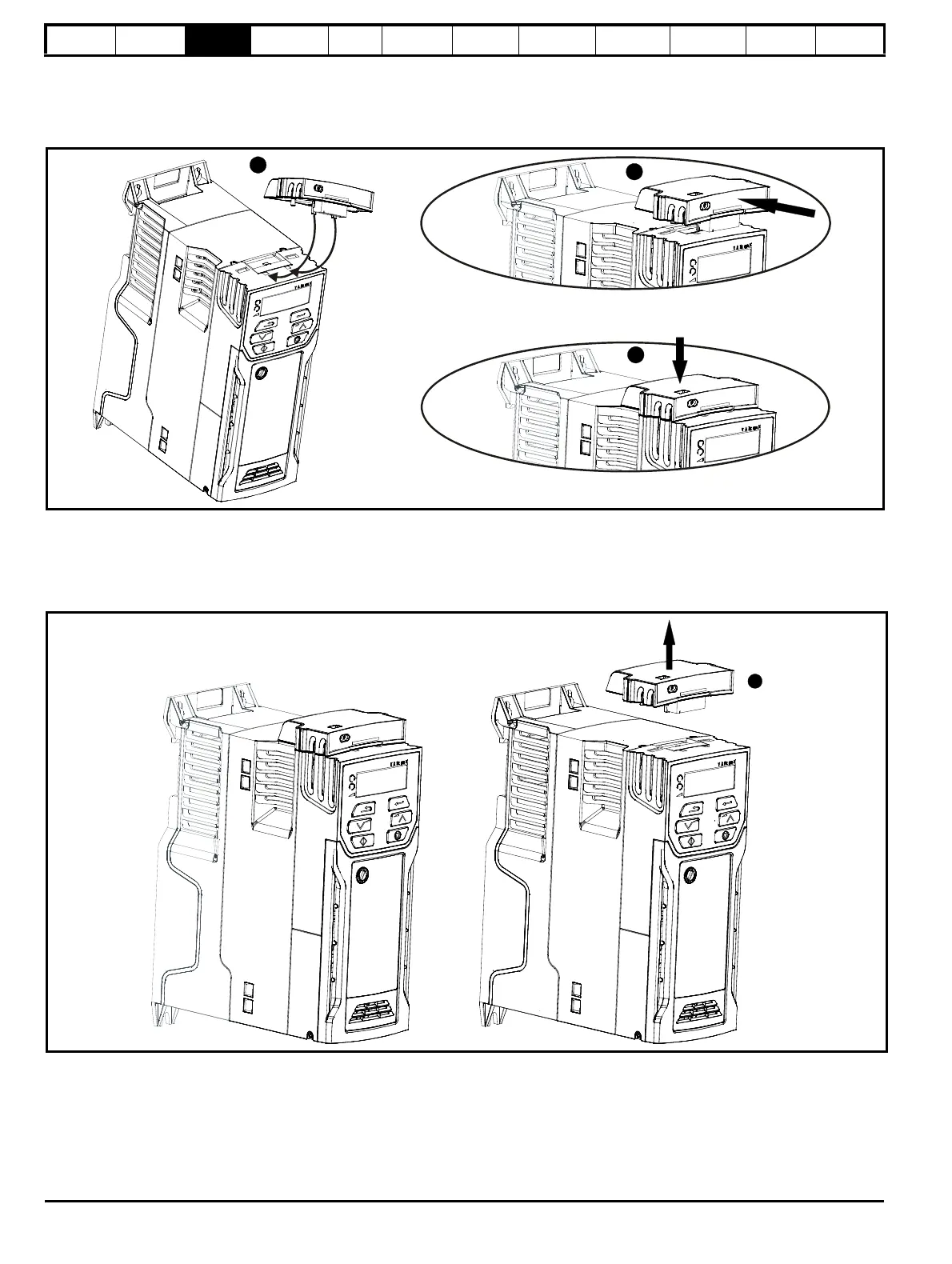

Figure 3-1 Installing the AI-Backup adaptor
1. Identify the two plastic fingers on the underside of the AI-Backup adaptor (1) - then insert the two fingers into the corresponding slots in the
spring-loaded sliding cover on the top of the drive.
2. Hold the adaptor firmly and push the spring loaded protective cover towards the back of the drive to expose the connector block (2) below.
3. Press the adaptor downwards (3) until the adaptor connector locates into the drive connection below.
Figure 3-2 Removal of the AI-Backup Adaptor
To remove the AI-Backup adaptor, pull it up away from the drive in the direction shown (1)
1
2
3
1
