18 Unidrive M100 / M101 Control User Guide
Issue Number: 1
The up and down buttons can only be used to move between menus if
Pr 00.010 has been set to show 'ALL'. Refer to section 5.8 Parameter
access level and security on page 20.

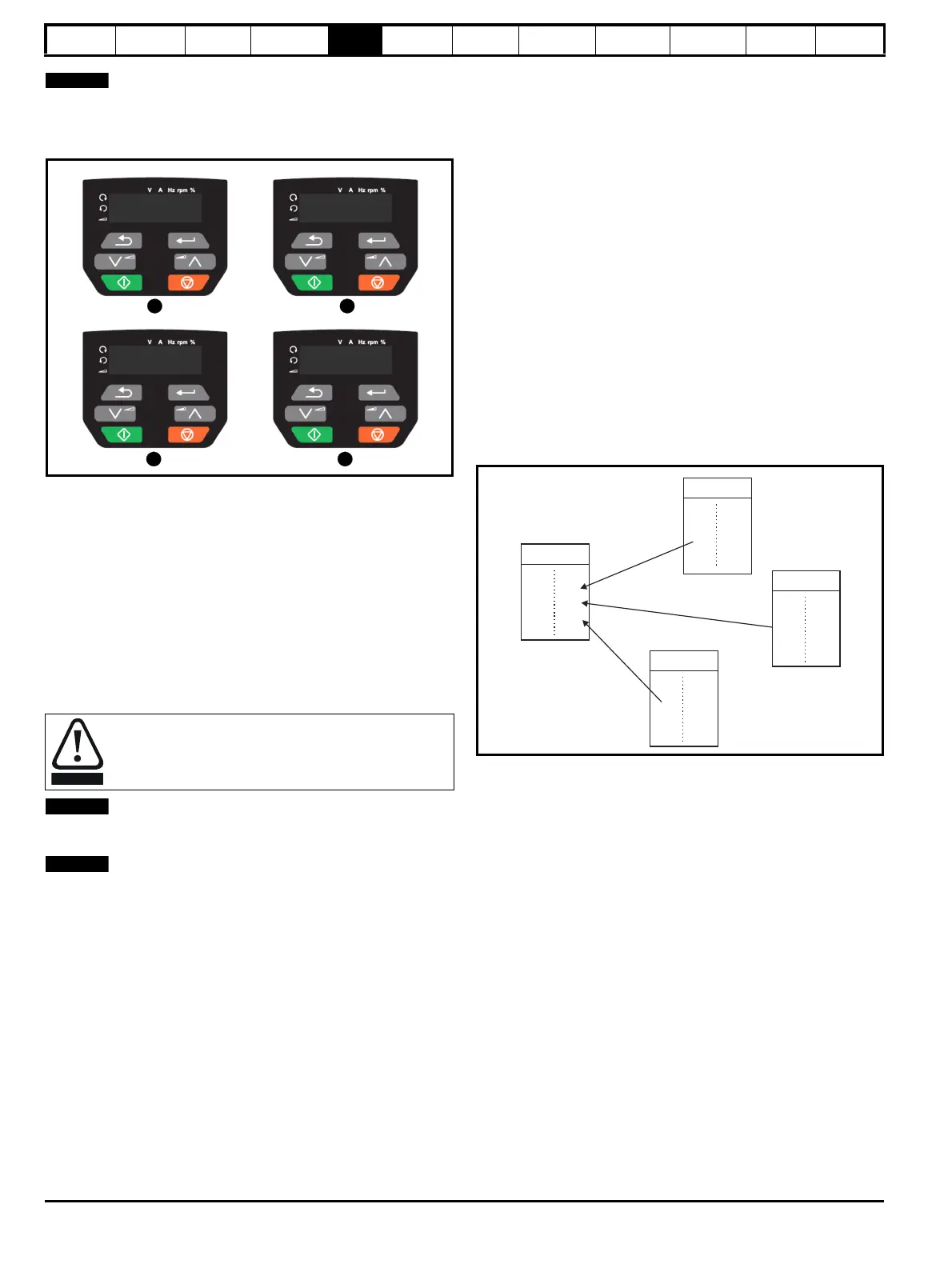

Figure 5-4 Mode examples
1 Parameter view mode: Read write or Read only
2 Status mode: Drive OK status
If the drive is ok and the parameters are not being edited or viewed, the
display will show one of the following:
inh', 'rdy' or status mode parameter value.
3 Status mode: Trip status
When the drive is in trip condition, the display will indicate that the drive
has tripped and the display will show the trip code. For further
information regarding trip codes, refer to section 11.4 Trips, Sub-trip
numbers on page 81.
4 Status mode: Alarm status
During an 'alarm' condition the display flashes between the drive status
parameter value and the alarm.
When changing the values of parameters, make a note of the new
values in case they need to be entered again.
New parameter values must be saved to ensure that the new values
apply after the drive has been power cycled. Refer to section 5.6 Saving
parameters on page 19.
5.3 Menu structure
The drive parameter structure consists of menus and parameters.
The drive initially powers up so that only Menu 0 can be viewed. The up
and down arrow buttons are used to navigate between parameters and
once Pr 00.010 has been set to 'All' the up and down buttons are used to
navigate between menus.
For further information refer to section 5.8 Parameter access level and
security on page 20.
The menus and parameters rollover in both directions i.e. if the last
parameter is displayed, a further press will cause the display to rollover
and show the first parameter.
When changing between menus, the drive remembers which parameter
was last viewed in a particular menu and thus displays that parameter.
5.4 Menu 0
Menu 0 is used to bring together various commonly used parameters for
basic easy set up of the drive. The parameters displayed in Menu 0 can
be configured in Menu 22.
Appropriate parameters are copied from the advanced menus into Menu
0 and thus exist in both locations.
For further information, refer to Chapter 6 Basic parameters on page 21.
Figure 5-5 Menu 0 copying
Do not change parameter values without careful
consideration; incorrect values may cause damage or a
safety hazard.
3 4
1 2
Menu 0
00.004
00.005
00.006
Menu 2
02.021
Menu 11
11.034
Menu 5
05.007
10.0
AV
4.1
AV
4.1
10.0
