4.RS-232 SERIAL INTERFACE, PROGRAMMING THE DEVICE OVER PC OR MODEM

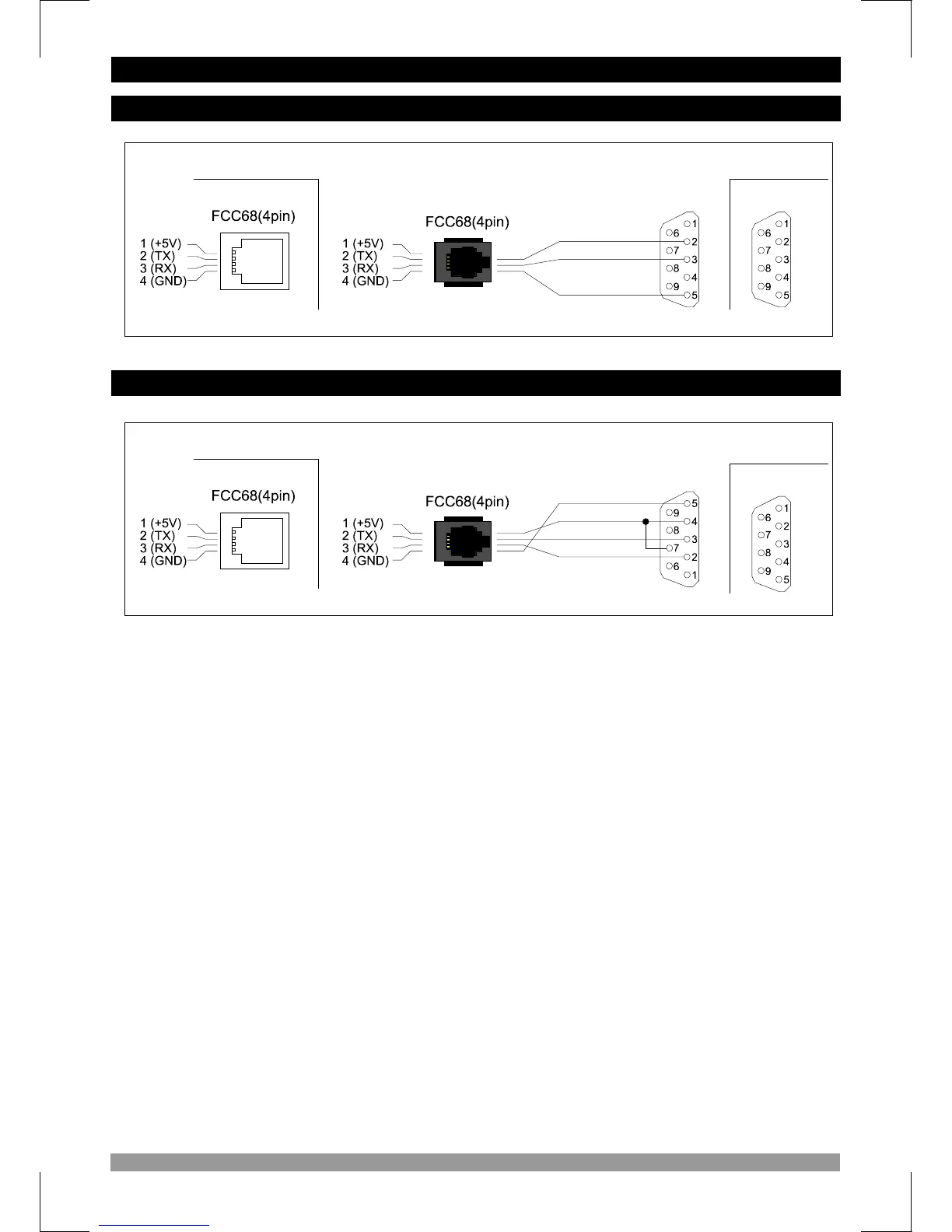

4.1 Cable Connection Between RS-232 Terminal of the Device and PC
9 pin D connector
female
EAOM-6
Standard communication cable
9 pin D connector
male
EAOM-6
MODEM communication cable
Green
Yellow
White
Brown
Brown
White
Green
Note: For 9600 baud rate, cable length must be maximum 10 meters.
PC
MODEM
9 pin D connector
male
9 pin D connector
female
4.2 Cable Connection Between RS-232 Terminal of the Device and Modem
