EMKO esm-4450 - 7 Definition of Front Panel and Accessing to the Parameters; Definition of Front Panel

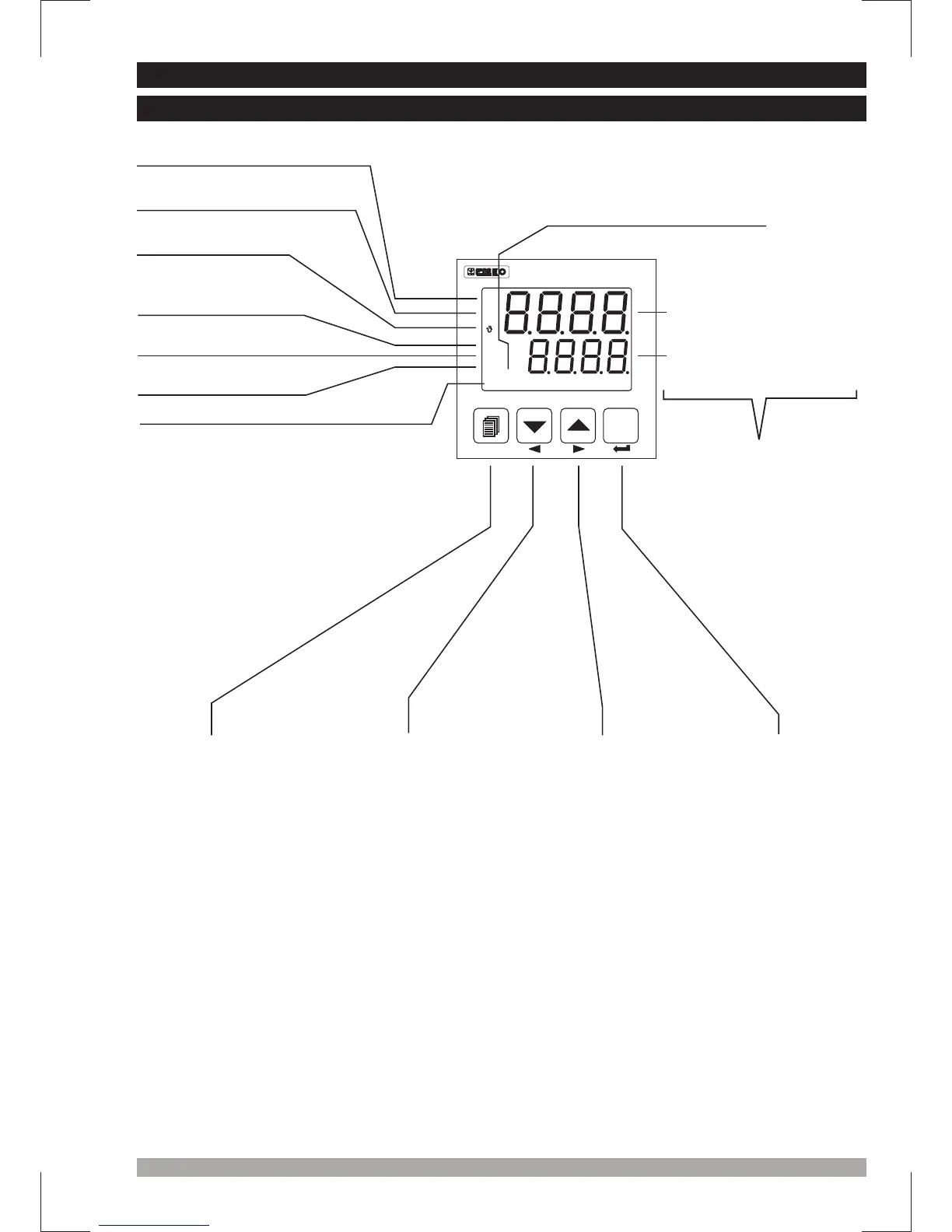

7.1DefinitionofFrontPanel
ESM-4450
ProcessController
SET
°C
O1 SV
°F
O2
O3 AT
REMOTE RAMP MAN AUTO
LEDindicationof°C:CentigradeUnit
LEDindicationof°F
FahrenheitUnit
LEDindicationofunits
otherthan°Cand°F
LEDindicationof
Output-1Status
LEDindicationofSV,Process
setvalue
LEDindicationof AT, Autotune
isactive
Displays
ProcessValue(PV)
andParameter
DisplaysProsesSet
Value
Parameter
(SV)and
Menubutton
Thisbuttonisused
toaccesstotheall
menusandto
moveuptoanother
menuinthemenu
list
Thisbuttonisused
toaccesstothe
processsetvalue
anduseasOK
buttoninprogram
parameters.
Thisbuttonisused
toincreasethe
valueandaccess
tothemenupages
Thisbuttonisused
todecrasethe
valuesandaccess
tothemenupages
7.DefinitionofFrontPaneland AccessingtotheParameters
40
Note-1: If increment or decrement button is pressed for 5 seconds continuously,
increment and decrement number become 10, if increment or decrement button is
pressed for 10 seconds continuously, increment and decrement number become 100.
Note-1
Note-1
LEDindicationof Automatic
operation(Forprocessoutput)
LEDindicationofManual
operation(Forprocessoutput)
LEDindicationofRamp&Soak
operationisactive
LEDindicationofOperation
withRemotesetvalue
Fordetailedinformation;
Pleasereferto
Section8.1.1
(Processand
AlarmSetParameters)
and8.1.3(Function
selectionforTopand
BottomDisplay)
LEDindicationof
Output-2Status
LEDindicationof
Output-3Status
