8.2.4MODULE-2ConfigurationParameters

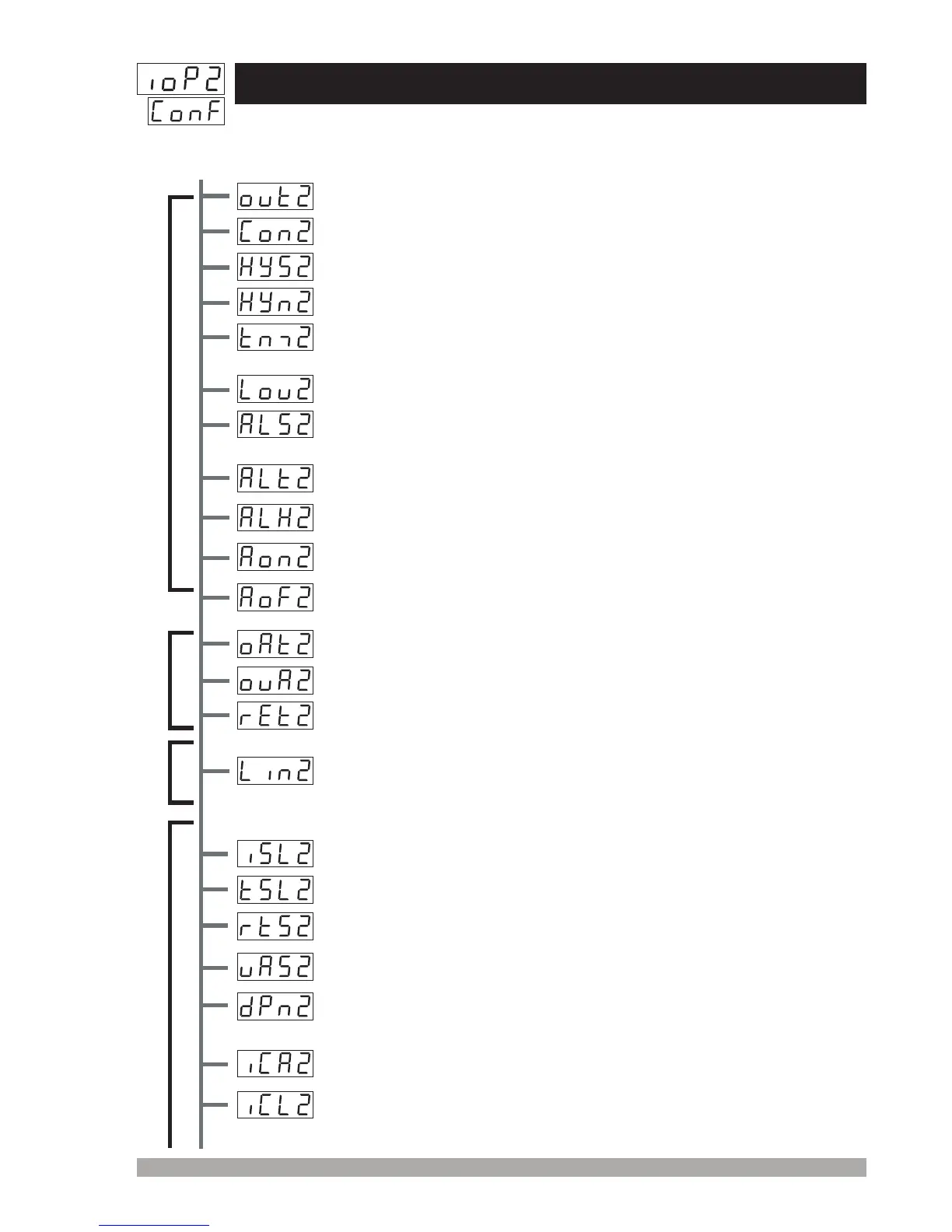

Module-2 configuration parameters are arranged automatically by the device
according to the module type in Module-2 socket. These parameters are not
accessible if there is no module in Module-2 socket.
Definesoutputfunction
Definescontrolalgorithmofoutputmodule
Hysteresisvalueofoutputmodule
Definesoperationformofhysteresis
In ON/OFF operation, this time must be passed for the output to be
energised again.
Defineslogicoutputfunction
Definesalarmtype
Selection of measurement input for alarm output. ( There must be one
of analogue input modules in Module-1 socket.)
Alarmoffdelaytime
Configurationofanalogueoutputmodule
Configurationoflogicinput
Functionselectionofanalogueoutput
Configurationofanalogueinputmodule
Selection of sensor type and scale for TC input module
Selection of sensor type and scale for PT-100 input module
It determines input type for Voltage/Current input moduleZ
It determines point position for display.
It defines minimum value for selectable dual point calibration.
It determines calibration type.
EMO-400,EMO-410,EMO-420
EMO-430
EMI-400
EMI-410,EMI-430,EMI-440,EMI-450
Alarmhysteresisvalue
Alarmondelaytime
It determines “ function for analogue output modulere-transmission”
