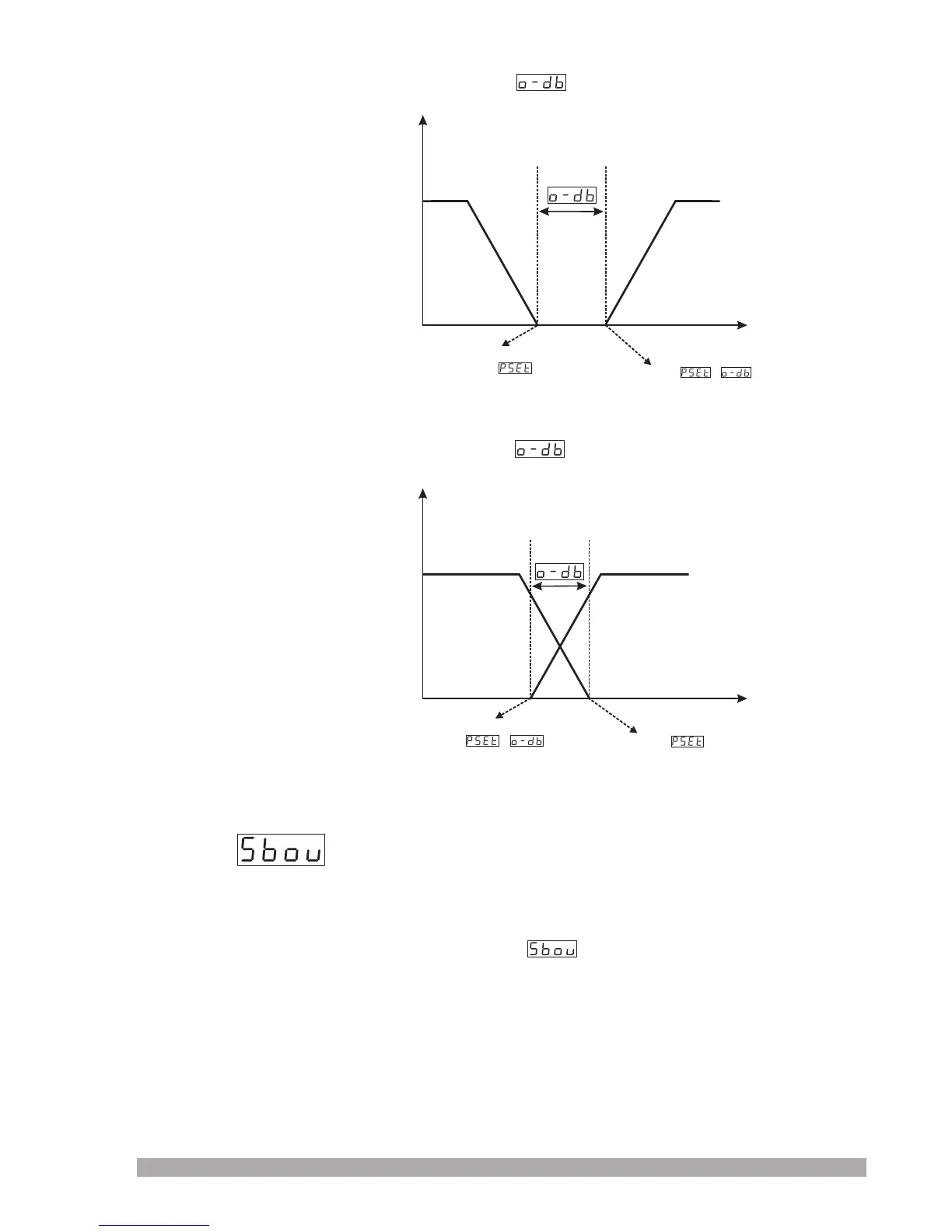

SENSOR BREAK OUTPUT VALUE
(FOR HEATING PID 0.0 , 100.0 )
(FOR COOLING PID -100.0 , 0.0 )
(FOR HEATING-COOLING PID -100.0 , 100.0 )
% %
% %
% %
If>0(DeadBand)
If<0(OverlapBand)
Process
Output
100%
50%
0%
Process
Value
HeatingSet
Value
()
CoolingSet
Value
(+)
Process
Output
100%
50%
0%
Process
Value
CoolingSet
Value
(+)
HeatingSet
Value
()
When sensor breaks, controlling of the process can continue by
entering %output value to parameter.
If this parameter 0.0, process control output does not perform an output
when sensor breaks.
