EMS AIRFLOW Prophylaxis Master User Manual

ENGLISH
FB-618/AU – rev.E – ed.2019/08
10/48
Connect air and water hoses
Turn the device over and place it upside down.
Connect the air hose EH-142 to the cabinet/dental unit.
Push the hose connector into the air jack firmly (it may be hard).
Pressure: 4.5 to 7 bar
Dry air. Max. humidity: 1.032 g/m
3
Filtration: max. 1 μm
Connect the water hose EG-110 to the cabinet/dental unit.
To prevent retro contamination, connect the cable to an EN-
1717 or
DVGW compliant fluids source.
DO NOT install the PIEZON
®
or NIGHT CLEANER bottle before connecting
the air and water lines.
Drinking water
Pressure: 2 to 5 bar
Salinity: max. 0.2%
Temperature: 10°C to 30°C

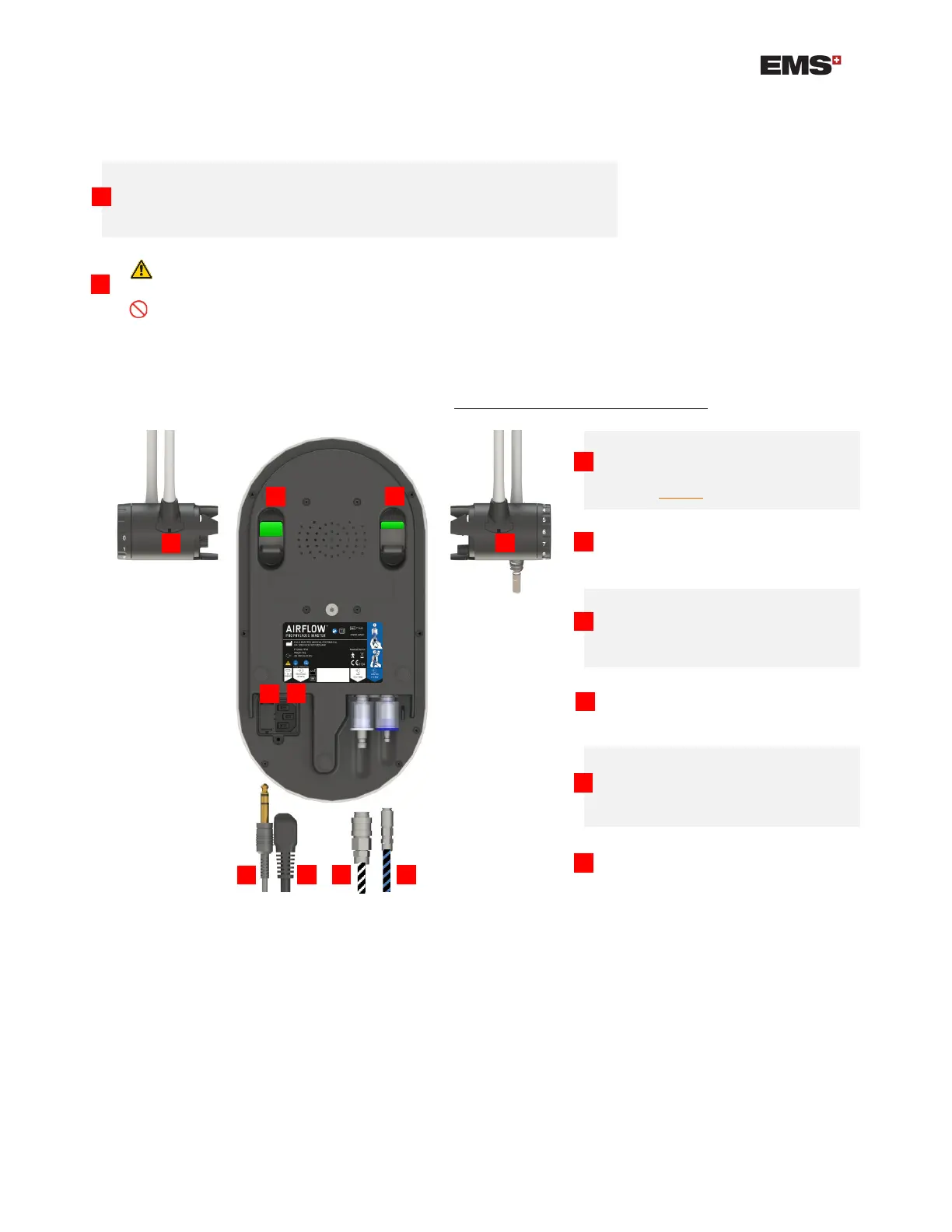

Install accessories
Continue to keep the device upside down and disconnected from the power grid!
EH-142
Air hose – filter pre-installed
PUSH VERY HARD
EG-110
Water hose – filter pre-installed
Power cord into socket
(Fuse holder in the socket)
EK-410
Wired pedal
ONLY IF APLICABLE
EM-145
AIRFLOW
®
handpiece cord +
lock actuator
PUSH HARD
EM-146
PIEZON
®
handpiece cord + lock
actuator
PUSH HARD
1
2
1
2
3
4
1
2
3
4
5
5
6
6
4
3
5
6

EMS AIRFLOW Prophylaxis Master Specifications

General

Water Flow Rate	Adjustable
Powder Flow Rate	Adjustable
Technology	AIRFLOW, PERIOFLOW, PIEZON
Water Supply	Integrated water tank
Control	Foot control
Handpieces	AIRFLOW, PERIOFLOW, PIEZON
Water tank capacity	Approx. 800 ml
Water pressure	1 - 5 bar (100 - 500 kPa)
Operating mode	Continuous
Type	Air polishing system
Powder Type	Erythritol, Glycine
Nozzle Types	Standard, Perio
Power Supply	100-240 V, 50/60 Hz
