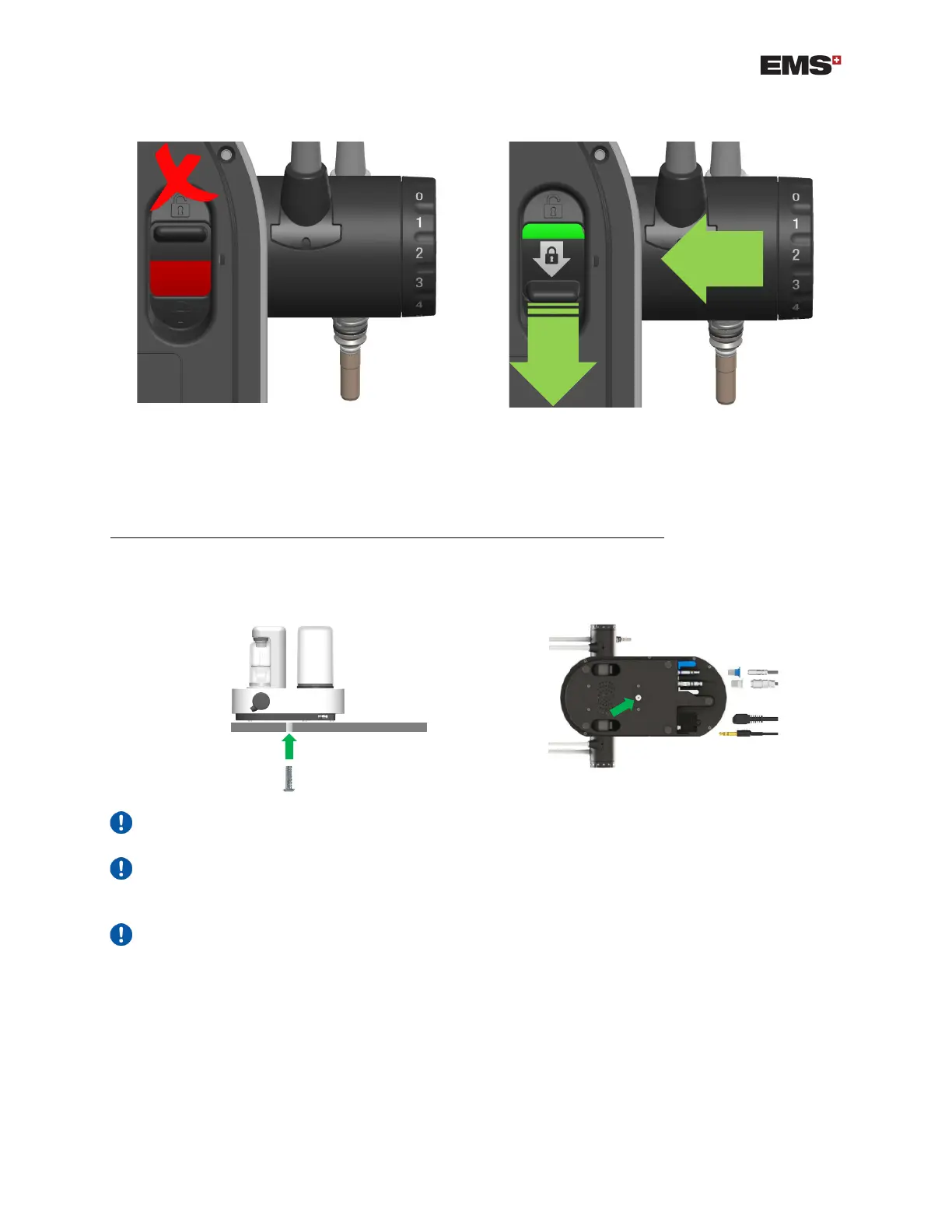

Check the cord connections

The handpiece cord is not fully connected.

PUSH HARD

to lock in.

The system is well connected & locked.

To disconnect the handpiece cord system, unlock the connection and pull at the same time.

Fix the device

You will find a “Master Screw” provided on the bottom center of the device.

Unscrew the Master Screw first and use it to secure the device firmly to a table or onto the AL-125

device support in your cabinet (the AL-125 part is available through our after-sales support and

dealers).

Fix your device with the provided “Master Screw” in order to ensure that the unit cannot be

removed without the use of a tool.

Check the position of the medical device so that it corresponds to your line of sight and the

characteristics of your personal workstation (the lighting and the distance between the user and the

device). The device must remain quickly and easily accessible at all times.

Check that the water and air lines and the power cord do not hinder physical movement.

Master Screw usage

Table

Master Screw placement

PUSH

HARD

PUSH
