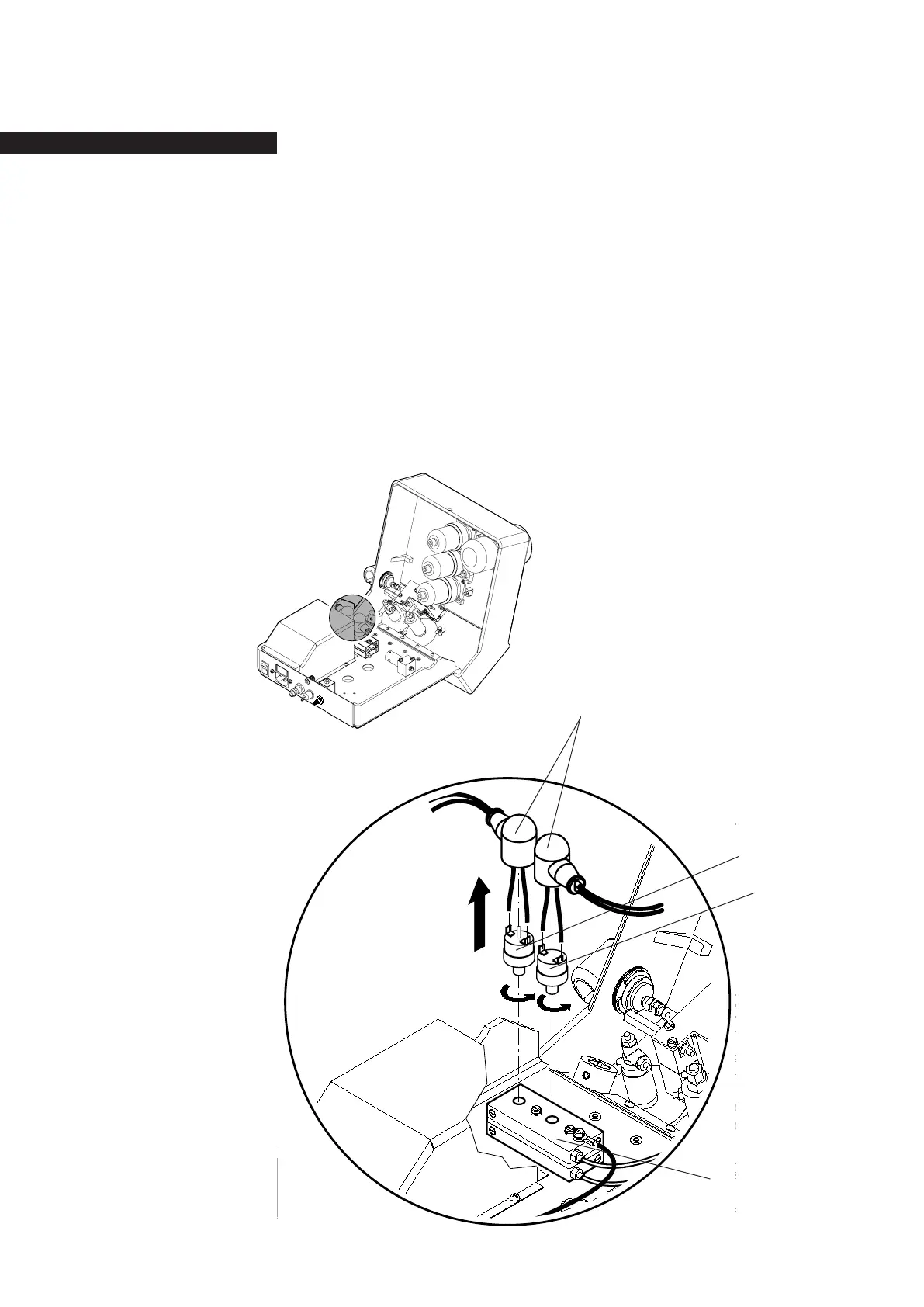

Replacement of the thermostats
This procedure is identical for the thermostat 60
o
C (28)
and for
the thermostat 47
o
C (29) screwed on the top of the
water heater (30).
Remove the thermostat protection (27).
Unsolder the two cables on the thermostat.
Unscrew the thermostat using the two pins for electrical
connection.
Put in place a new thermostat.
