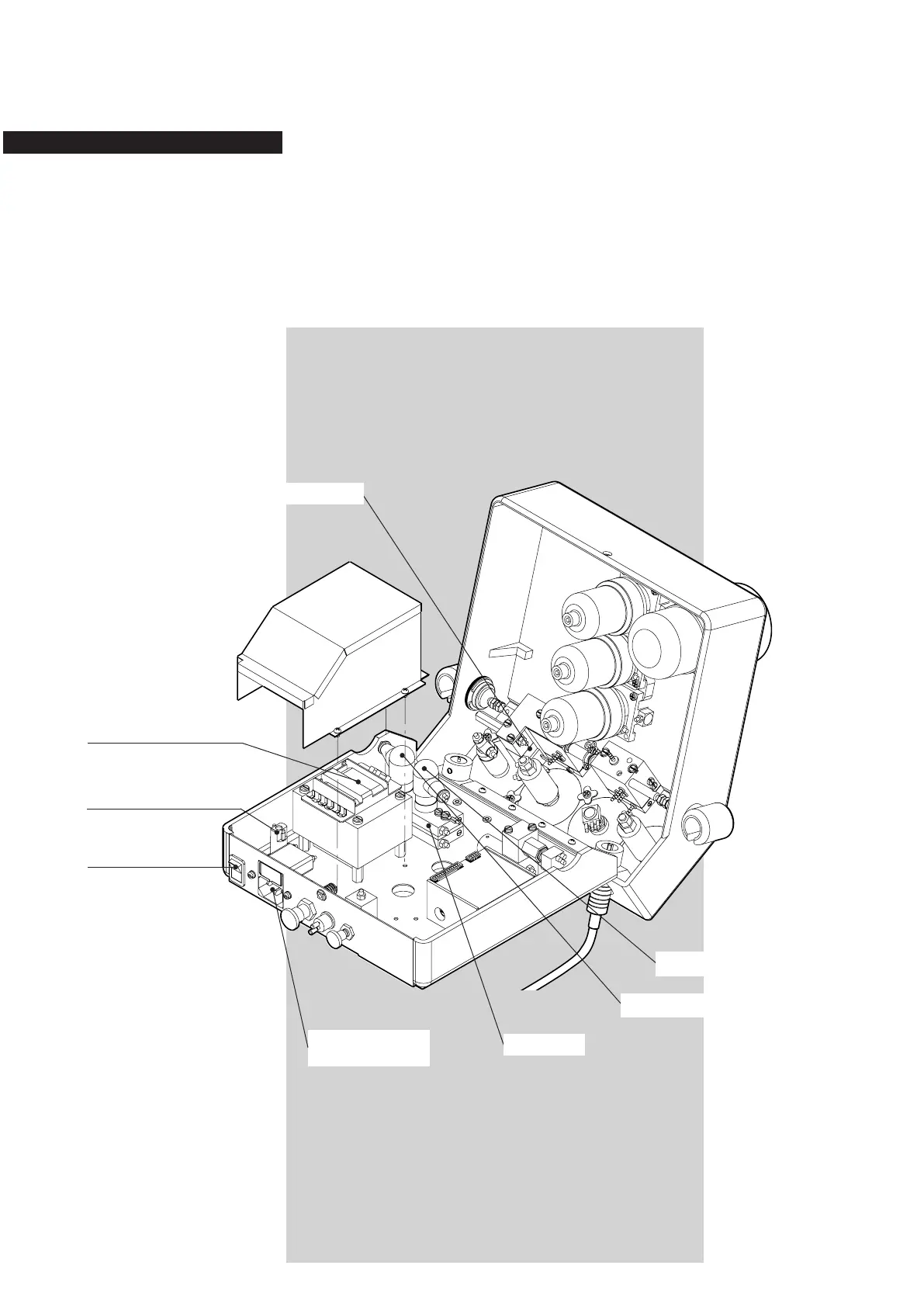

Description of the electrical parts

This unit is equipped with a mains socket with fuses incor-

porated. The main switch ON/OFF is placed on the back

side of the unit.

The mains voltage (high voltage of 110, 220 or 240 V AC)

is converted into 24V AC (low voltage), by an internal trans-

former, to supply all the electrical components of the unit.

Mains socket

and primary fuses

Main switch

Secondary fuse

Transformer

Water heater

Electrovalve

Thermostat 60°C

Thermostat 47°C
