EMS AirFlow S1 User Manual

10
AirFlow
®
S1

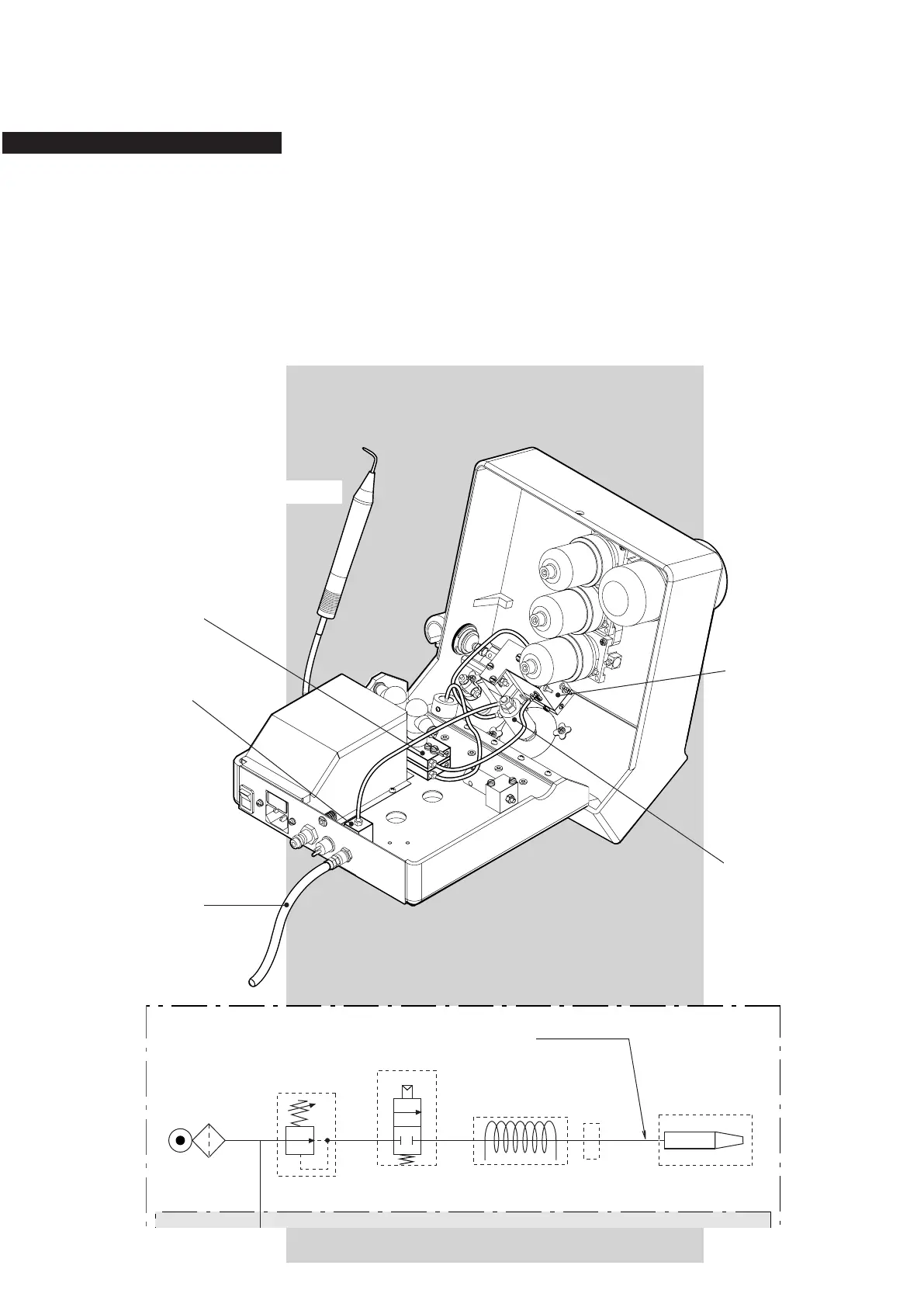

Description of the hydraulic parts
AirFlow
®
S1 is equipped with a water lter at the entrance
of the water supply. Water circuit is made by blue hoses.
On the AirFlow
®
unit, the water passes through a water
lter then though a water regulator allowing the regulation
of the ow, and goes into the pneumatic module driven by
the electrovalve, the heater and the polisher handpiece via
the handpiece cord.
Polisher handpiece
Water regulator
Pneumatic module for
polisher
Water heater
Water lter
Water supply
Polisher
handpiece cord
Additional connections available for AirFlow
®
S2
Water filter on
AirFlow
®
S1
Water filter on
AirFlow
®
S2
Pneumatic
module for
polisher
Water heater
Polisher
connector
Polisher handpiece
Scaler
handpiece cord
Pneumatic
module for
scaler
Scaler
connector
Scaler handpiece
Water
regulator
Water
regulator
