EMS AirFlow S1 - Replacement of the transformer

20
AirFlow
®
S1
Replacement of the transformer

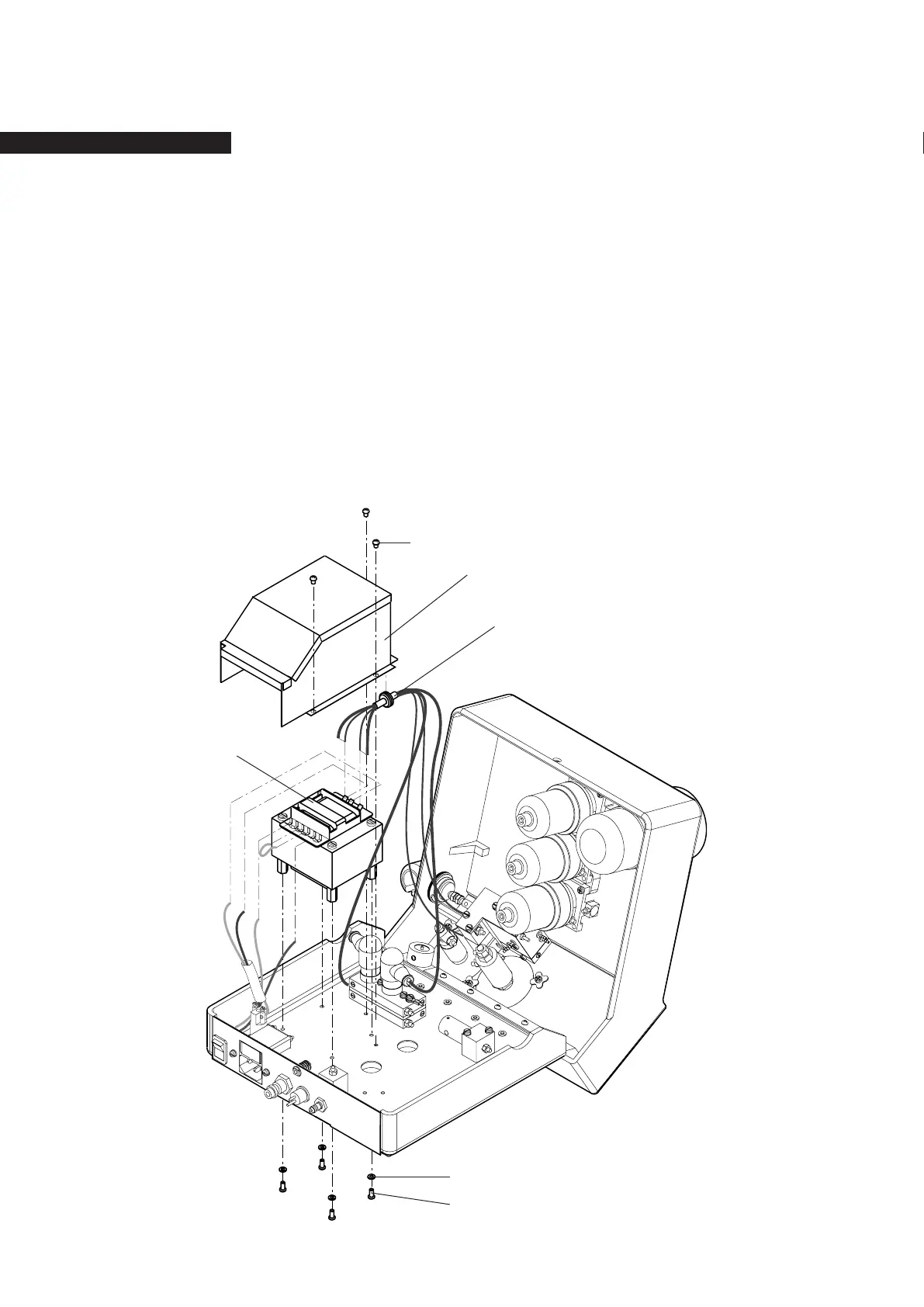

Remove the three screws (90) of the metal housing of the
transformer (64).
Remove the housing of the transformer and extract the
bushing (93).
Remark: note the order of connection for each wire.
Unsolder all the electrical cables of the transformer (65).
Remove the four screws (83) and the washers (74) of the
transformer.
Put in place a new transformer.
