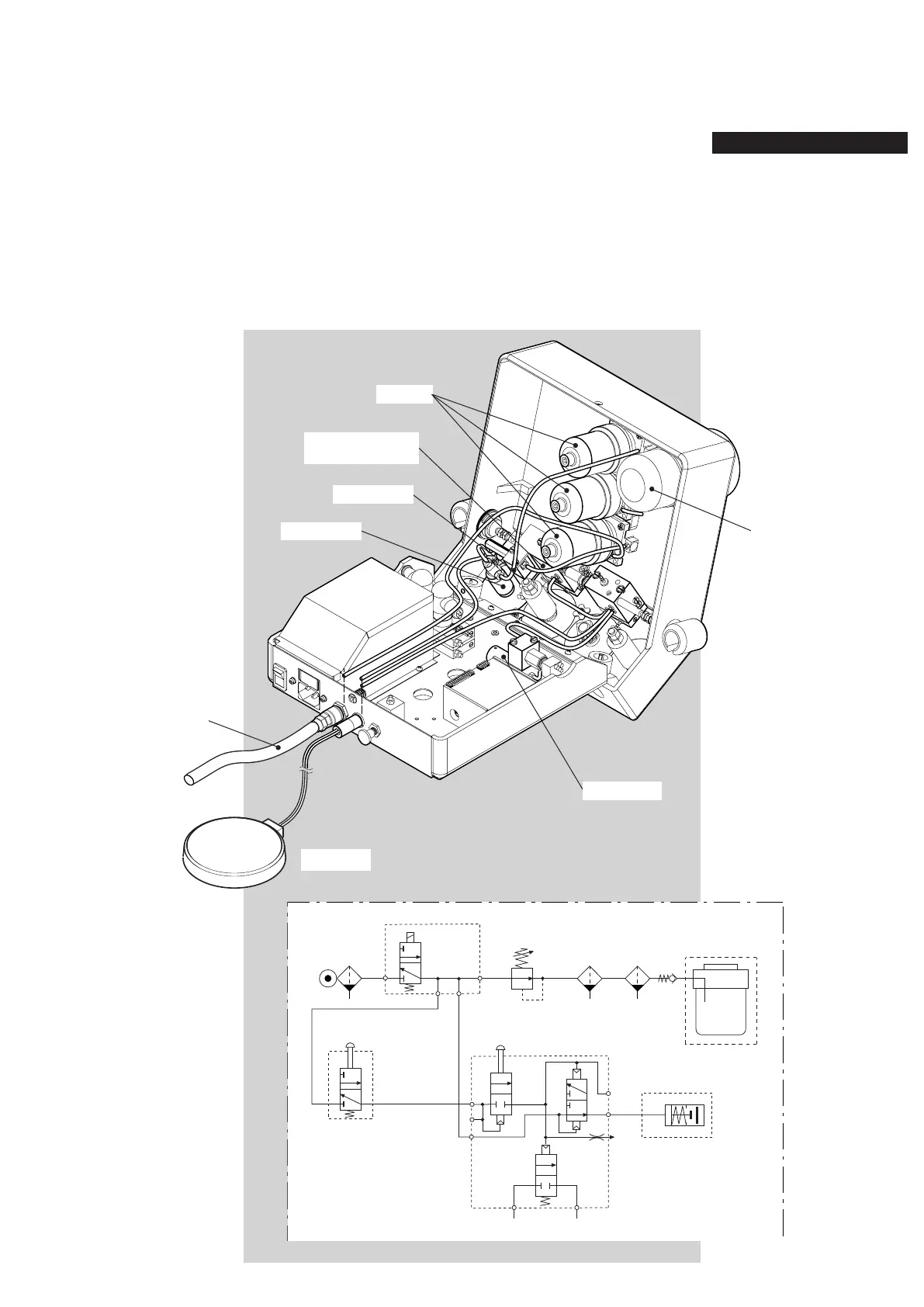

Description of the pneumatic parts
AirFlow
®
S1 unit is driven by a pneumatic footswitch. Internal air
circuit is made by yellow hoses.
It is equipped with an air lter at the entrance of the air supply.
The air passes through a regulator allowing the regulation of the
ow, and goes into the a set of two air lters before its entrance
into the powder bowl.
The pneumatic module for polisher, the pinch valve and the water
circuit are driven by the air circuit.
AirFlow
®
S1
Footswitch
Air lter
Electrovalve
Powder bowl set
Pinch valve
Pneumatic module
for polisher
Air regulator
Air supply
See water circuit
Pneumatic module for polisher
Electrovalve
Pinch valve
Footswitch
Powder bowl set
Air filterAir filterAir filter
Air regulator
