AirFlow
®
S1
Replacement of the primary fuses

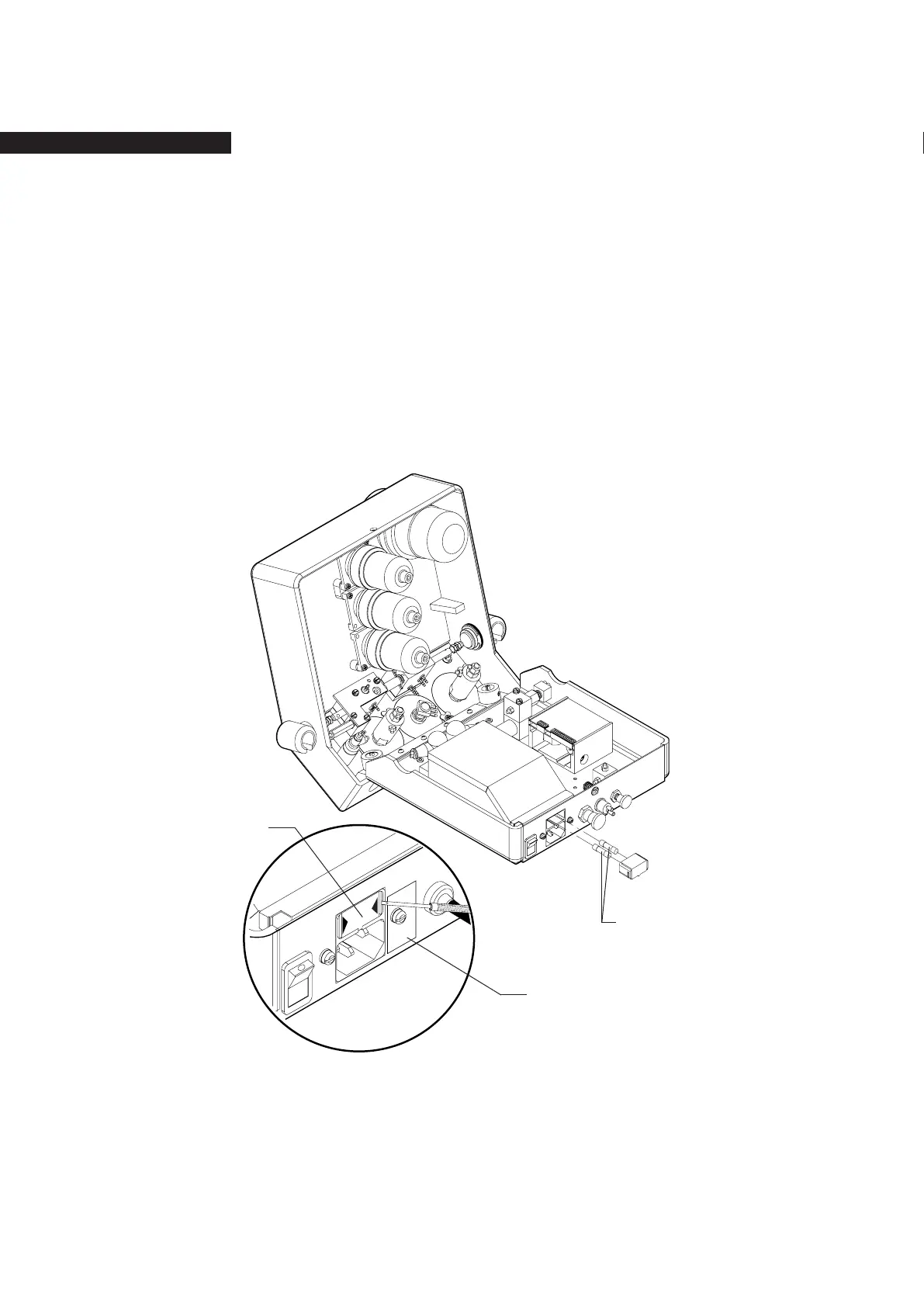

Open the unit (see page 15).
Apply a lateral slight pressure with a small screwdriver on
the fuse holder (78) and extract the fuses (77).
Replace
the
fuses
following
the
specications
mentioned
on the sticker at the rear of the unit.
FUSES
100-110V
T 1 A
220-240V
T 500mA L
I
O
78
Sticker
77
17
19
Table of Contents
Table of Contents
3
Important Note
5
The Unit and Its Components
6
Installation
6
Technical Data
7
Description of the Unit
7
Description of the Electrical Parts
8
Description of the Hydraulic Parts
10
Description of the Pneumatic Parts
11
Description of the Powder Parts
12
Trouble Shooting
14
Verification of the General Condition (Internal)
14
Verification of the Primary Electrical Circuit
14
Verification of the Secondary Electrical Circuit
14
Verification of the Water Circuit
14
Opening of the Unit
15
Verification of the Air Circuit
16
Verification of the Powder Circuit
16
Disconnecting of the Air, Water and Powder Hoses
16
Replacement of the Secondary Fuses
17
Unsoldering of the Electrical Wires
17
Replacement of the Primary Fuses
18
Assembly of the Knob
19
Replacement of the Transformer
20
Replacement of the Thermostats
21
Replacement of the Water Heater
22
Procedure in Case of Heating Problem
23
Replacement of the Water Filter Cartridge
24
Replacement of the Complete Water Filter
24
Replacement of the Water Regulator
25
Replacement of the Pneumatic Module for Polisher
26
Replacement of the Air Filter Element
27
Replacement of the Air Filters
27
Replacement of the Electrovalve
28
Replacement of the Air Regulator
29
Replacement of the Powder Bowl Set
30
Replacement of the Pinch Valve
31
Spare Parts & Update
32
Spair Part View
33
Function Control
36
Safety Control
36
