EMS AirFlow S1 - Replacement of the pneumatic module for polisher

26
AirFlow
®
S1
Replacement of the pneumatic module for
polisher

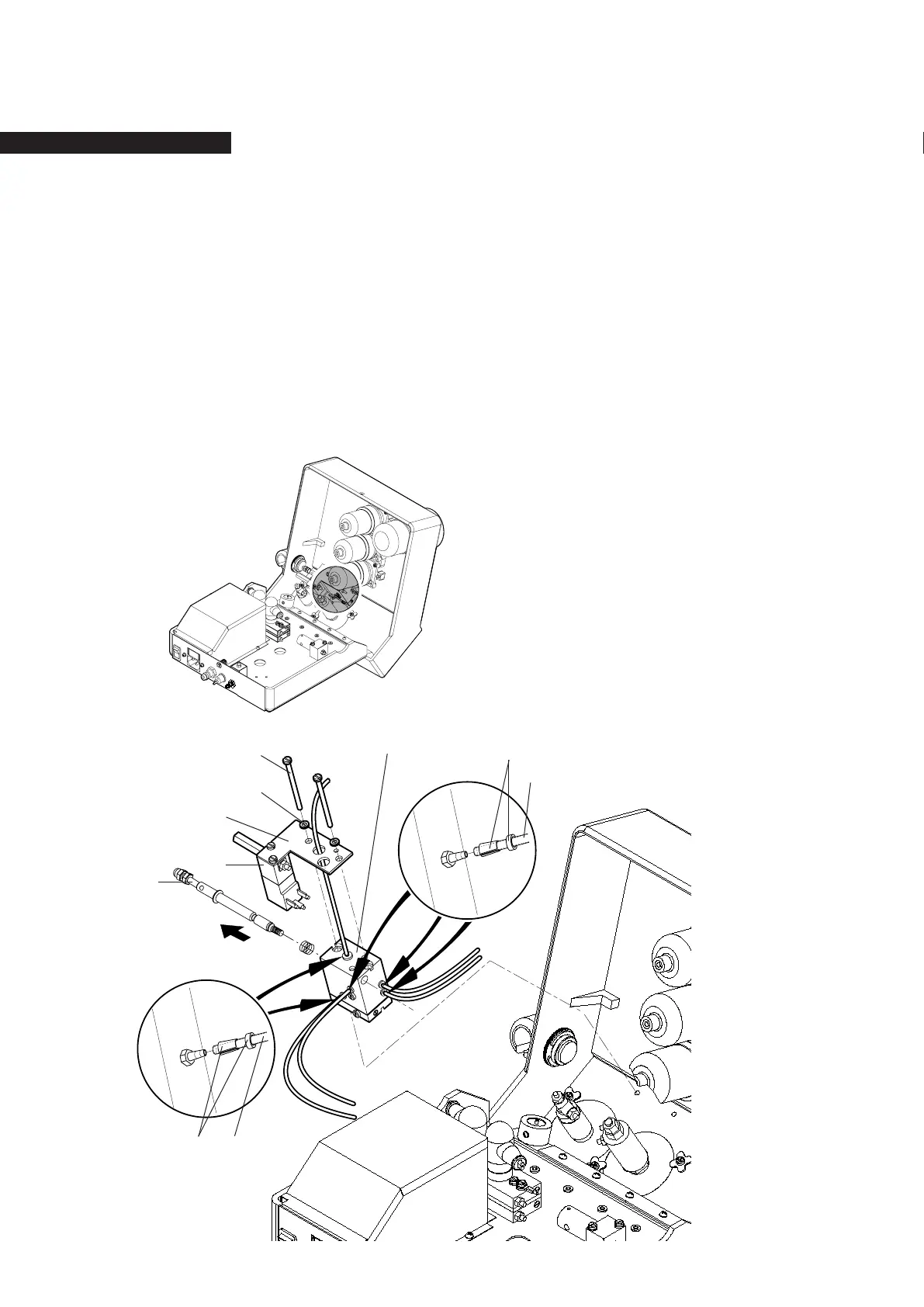

Remove the two screws (63) and the washers (26).
Release the electrovalve (23) and its plate (21).
Extract the selector rod (22) from the module.
Remove the ve uniclamps (92) and disconnect the three
yellow air hoses (66) and the two blue water hoses (70)
from the pneumatic module for polisher (62).
Put in place a new pneumatic module for polisher.
23
21
63
26
92
66
92
70
62
