12
AirFlow
®
S1

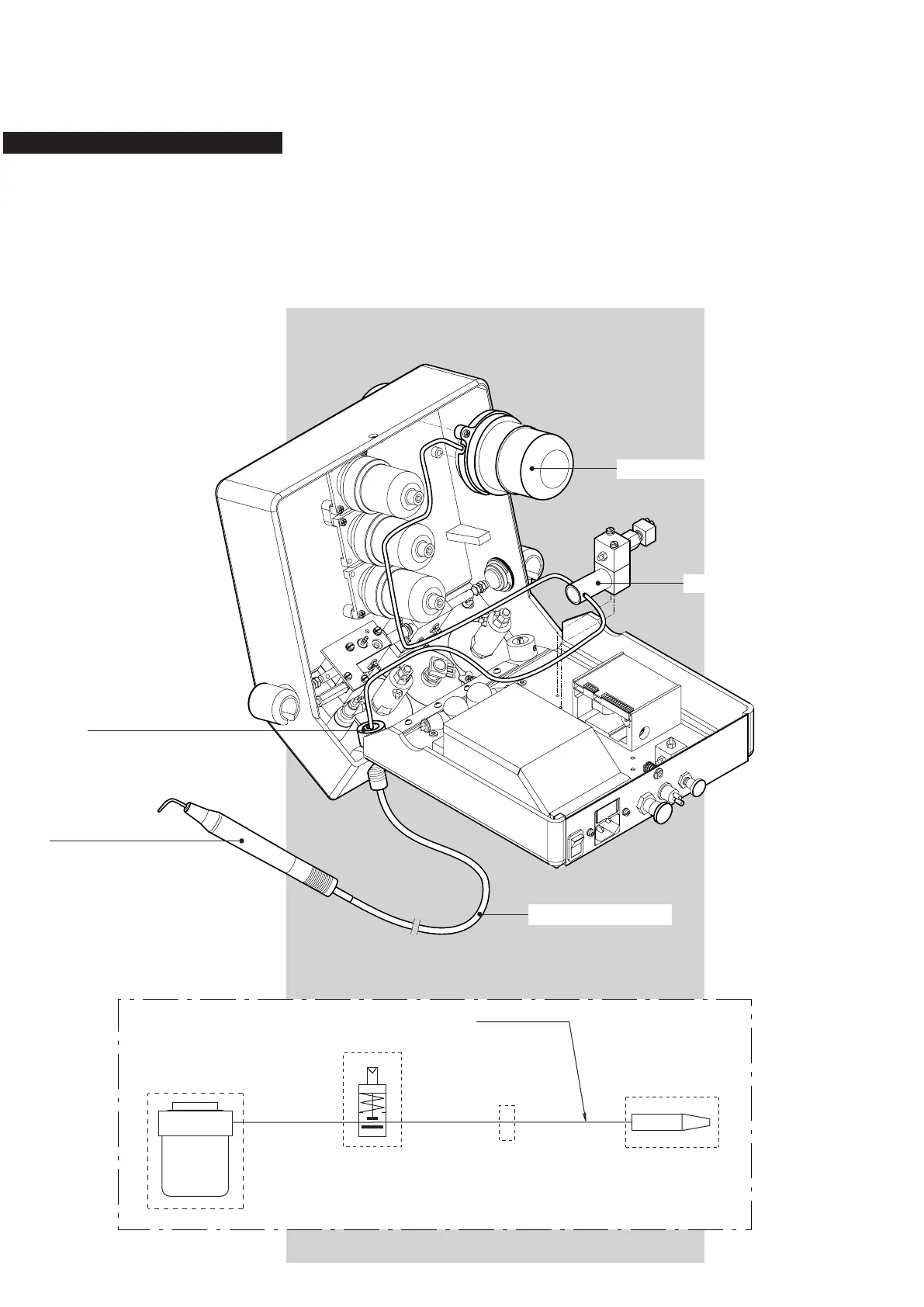

Description of the powder parts
The powder circuit is used on the
AirFlow
®
system.
The
powder circuit is made by a transparent hose.
The powder comes from the powder bowl and passes
through
the
pinch
valve
allowing
the
stop
of
the
ow
,
and
goes into the polisher handpiece via the handpiece cord.
Po
lisher
handpiece cord
Po
wder bowl set
Pinch
va
lve
Po
lisher
connector
Po
lisher handpiece
Polisher handpiece
Polisher connector
Pinch valve
Powder bowl set
Polisher handpiece cord
11
13
Table of Contents
Table of Contents
3
Important Note
5
The Unit and Its Components
6
Installation
6
Technical Data
7
Description of the Unit
7
Description of the Electrical Parts
8
Description of the Hydraulic Parts
10
Description of the Pneumatic Parts
11
Description of the Powder Parts
12
Trouble Shooting
14
Verification of the General Condition (Internal)
14
Verification of the Primary Electrical Circuit
14
Verification of the Secondary Electrical Circuit
14
Verification of the Water Circuit
14
Opening of the Unit
15
Verification of the Air Circuit
16
Verification of the Powder Circuit
16
Disconnecting of the Air, Water and Powder Hoses
16
Replacement of the Secondary Fuses
17
Unsoldering of the Electrical Wires
17
Replacement of the Primary Fuses
18
Assembly of the Knob
19
Replacement of the Transformer
20
Replacement of the Thermostats
21
Replacement of the Water Heater
22
Procedure in Case of Heating Problem
23
Replacement of the Water Filter Cartridge
24
Replacement of the Complete Water Filter
24
Replacement of the Water Regulator
25
Replacement of the Pneumatic Module for Polisher
26
Replacement of the Air Filter Element
27
Replacement of the Air Filters
27
Replacement of the Electrovalve
28
Replacement of the Air Regulator
29
Replacement of the Powder Bowl Set
30
Replacement of the Pinch Valve
31
Spare Parts & Update
32
Spair Part View
33
Function Control
36
Safety Control
36
