Ender 3 Neo - Install X-axis Timing Belt; Install Nozzle Kit; Install Z-axis Passive Block

4. Install the Printer
07
4.6 Install the nozzle kit
Slide the nozzle kit into the X-axis profile.
45
4.5 Install the X-axis timing belt

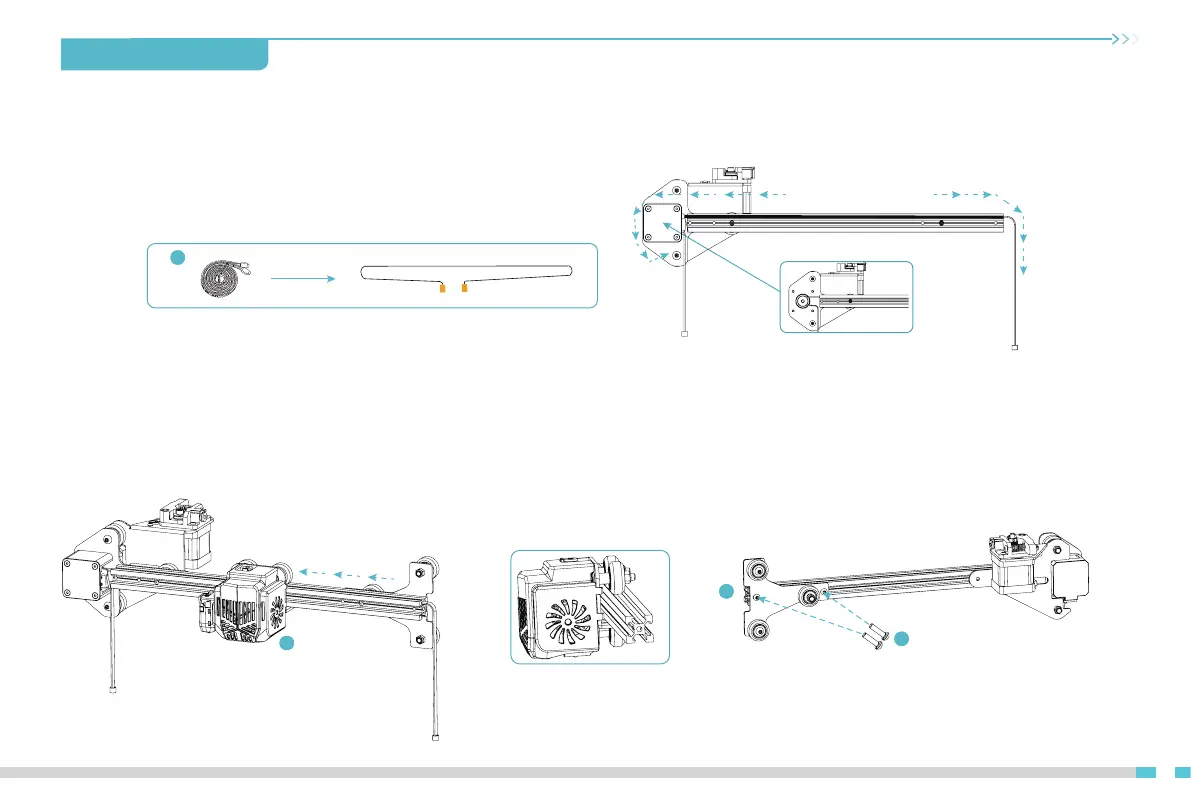

Thread the X-axis timing belt through the XE-axis assembly. (As shown in the diagram below)
*Snap the V-wheels into the
V-slot of the X-axis profile
2
27
4.7 Install Z-axis passive block
Fix the Z-axis passive block to the right end of the X-axis
profile using two M4 x 16 screws.
34
2
31
* just pre-tight the screws
