Liquiline CM442R/CM444R/CM448R
34 Endress+Hauser
Mounting the external
display
The mounting plate also serves as the drilling template. The marks on the side help you mark
the position of the drill holes.
4 x min. Ø 8 (0.31)
min. Ø 15 (0.59)
140 (5.51)
105 (4.13)
105 (4.13)
140 (5.51)
a
b
b
A0025371

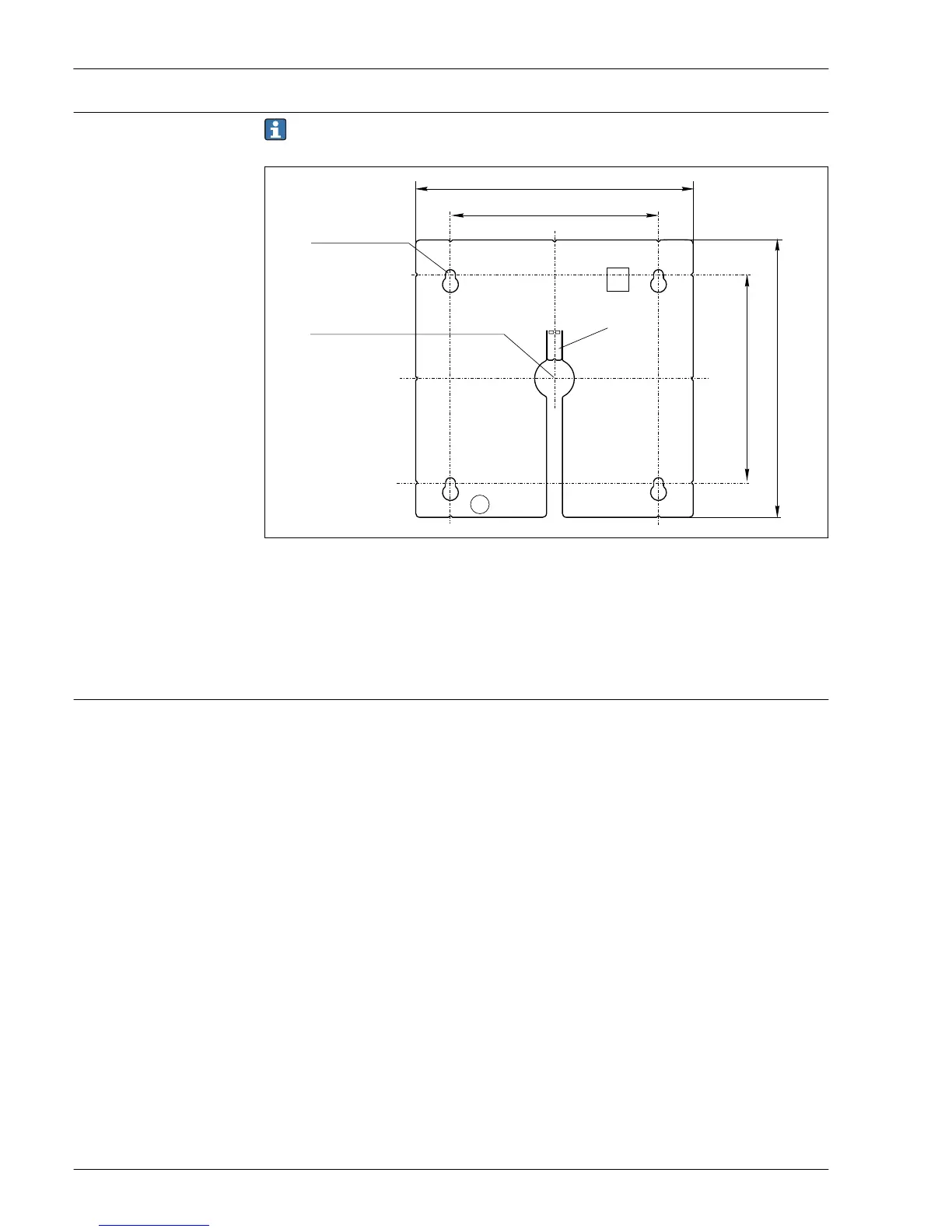

 25 Mounting plate of external display in mm (inch)
a Retaining tab
b Production-related recesses, no function for the user
Environment
Ambient temperature range
CM442R
–20 to 60 ˚C (0 to 140 ˚F)
CM444R
• Generally –20 to 55 ˚C (0 to 130 ˚F), with the exception of packages under the second point in
the list
• –20 to 50 ˚C (0 to 120 ˚F) for the following packages:
– CM444R-**M40A7FI*+...
– CM444R-**M40A7FK*+...
– CM444R-**N40A7FI*+...
– CM444R-**N40A7FK*+...
– CM444R-**M4AA5F4*+...
– CM444R-**M4AA5FF*+...
– CM444R-**M4AA5FH*+...
– CM444R-**M4AA5FI*+...
– CM444R-**M4AA5FK*+...
– CM444R-**M4AA5FM*+...
– CM444R-**M4BA5F4*+...
– CM444R-**M4BA5FF*+...
– CM444R-**M4BA5FH*+...
– CM444R-**M4BA5FI*+...
– CM444R-**M4BA5FK*+...
– CM444R-**M4BA5FM*+...
– CM444R-**M4DA5F4*+...
– CM444R-**M4DA5FF*+...
– CM444R-**M4DA5FH*+...
– CM444R-**M4DA5FI*+...
– CM444R-**M4DA5FK*+...
– CM444R-**M4DA5FM* +...
